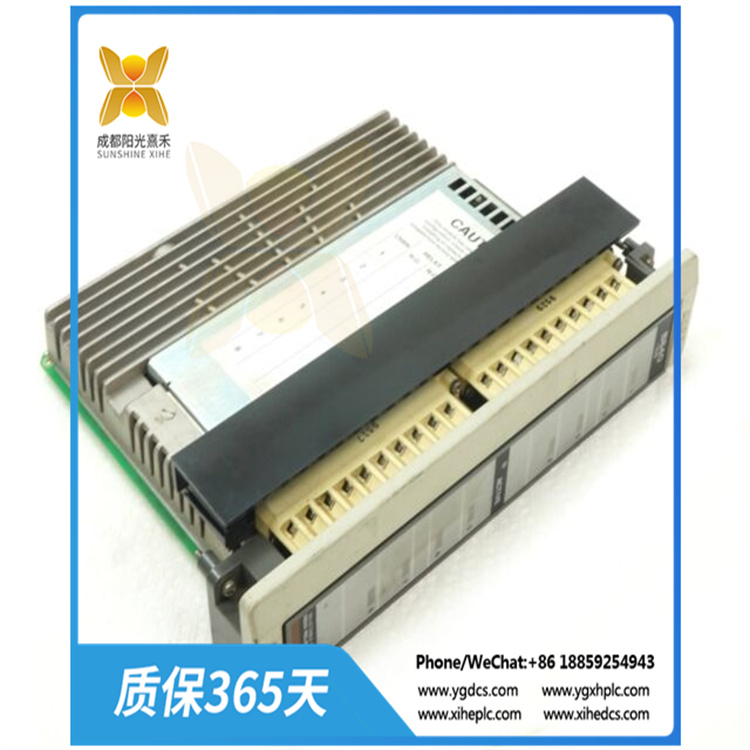

>>>型號:AS-B814-108 以太網通訊模塊接口板卡 用于工業自動化和控制系統 通信功能

【功能描述】

AS-B814-108 是一款以太網通訊模塊接口板卡，專為工業自動化和控制系統設計。

AS-B814-108 以下是關于該模塊的一些關鍵信息：

輸入輸出特性：該模塊的輸入電壓范圍通常為20~90V AC/dc，并且可以在-40℃到+85℃的工作溫度范圍內穩定運行。

物理特性：AS-B814-108 的產品尺寸大致為100mm x 50mm x 20mm，采用IP30防護等級設計，具備波浪紋鋁制加強機殼，適合35mm DIN導軌安裝。

電氣特性：它支持DC(9-36)V寬電源輸入，并具備繼電器告警輸出，雙電源冗余和隔離保護等優點。

通信功能：該模塊支持以太網通信，能夠自動識別以太網上的各種設備，方便用戶實時在線增減設備，從而簡化了維護過程。

編程與內存：CPU內存可擴展至7MB，提供足夠的程序空間。內置實時時鐘，為所有信息提供時間標簽。CPU具有充裕的寄存器可供選擇，集成多處理器，

主處理器處理程序運算，協處理器處理通訊，確保系統的高度可用性。

特殊功能：AS-B814-108還具有20~155M雙光接口，可支持光纖傳輸Profibus DP總線，實現高速率長距離傳輸、電氣及地線隔離、降低干擾等性能。

此外，該模塊符合IEC61131-3標準，并提供多種編程方式，如LD（梯形圖）、FBD（功能塊圖）、ST（結構化文本）等。

>>>>型號:AS-B814-108 以太網通訊模塊接口板卡 用于工業自動化和控制系統 通信功能

【英文介紹】

AS-B814-108 is an Ethernet communication module interface board designed for industrial automation and control systems.

AS-B814-108 Here are some key information about the module:

Input/Output characteristics: The input voltage range of the module is usually 20 to 90V AC/dc, and can operate stably in the operating temperature range of -40 ° C to +85 ° C.

Physical characteristics: The AS-B814-108 is approximately 100mm x 50mm x 20mm in size and is designed with IP30 protection class, with wavy aluminum reinforced housing for 35mm DIN rail mounting.

Electrical characteristics: It supports DC(9-36)V wide power input and has the advantages of relay alarm output, dual power redundancy and isolation protection.

Communication function: The module supports Ethernet communication, and can automatically identify various devices on the Ethernet network, which is convenient for users to increase or decrease devices

online in real time, thus simplifying the maintenance process.

Programming and memory: CPU memory can be expanded to 7MB, providing enough program space. Built-in real-time clock provides time tags for all information. CPU has plenty of registers to choose from,

integrated multi-processor, main processor processing program operation, coprocessor processing communication, to ensure the high availability of the system.

Special functions: AS-B814-108 also has 20~155M dual optical interface, can support fiber transmission Profibus DP bus, to achieve high speed long-distance transmission, electrical and ground isolation, reduce

interference and other performance.

In addition, the module complies with IEC61131-3 standards and offers a variety of programming methods, such as LD (ladder diagram), FBD (function block diagram), ST (structured text), etc.
