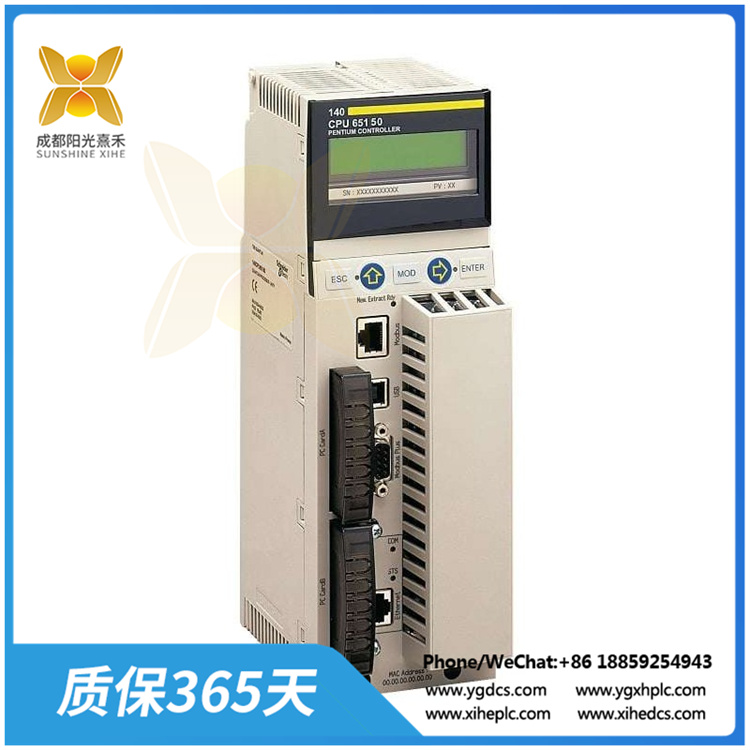

>>>型號:140CPU65150 電氣控制設備 用于工業自動化和控制系統

【功能描述】

140CPU65150是一種電氣控制設備，主要用于現代工業自動化系統中的數據采集、傳輸和控制。

140CPU65150該模塊由多個單元組成，包括輸入/輸出（I/O）模塊、通信模塊、編碼器接口模塊等，并通過內部總線連接到PLC或其他控制器上。當外部傳感器或執行器檢測到物理量變化時，會將這些信息轉換

為電信號并發送給I/O模塊。然后I/O模塊將這些數據轉發給PLC進行處理，在PLC完成邏輯運算之后再通過I/O模塊來驅動執行器實現對目標物體的操作。

140CPU65150的時鐘頻率為166 Mhz，有兩個本地機架，具有63個分布式I/O站、1個機架和3個分布式網絡。它在分布式網絡中有8000個離散輸入和離散輸出，在遠程系統中有31744個離散輸入和輸入。其數據

速率為10/100 Mbps，并僅與Unity Pro軟件兼容。

該模塊還具有一些特定的應用功能，如可以用作時間戳、計數器、高速中斷輸入和串行鏈路。它支持6個可選模塊，包括以太網、Modbus、Modbus Plus、Profibus DP和Sy/Max。在本地AS接口中，模塊具有無

限的最大連接數，并具有4種集成連接類型——以太網TCP/IP、Modbus、Modbus Plus和USB。它還擁有一個可擴展的8 MB的文件存儲、7168 kB或可擴展的編程和768 kB的內存。

140CPU65150模塊使用RJ-45連接進行通信，并且僅其web服務器功能僅用于診斷，因此必須使用該軟件來配置其服務。此外，它還具有一個按鍵開關存儲器端口來實現開/關功能，并且要求使用屏蔽雙絞線作為介質。

總的來說，140CPU65150模塊是一款功能豐富、性能穩定的電氣控制設備，廣泛應用于工業自動化領域。

>>>>型號:140CPU65150 電氣控制設備 用于工業自動化和控制系統

【英文介紹】

The 140CPU65150 is an electrical control device mainly used for data acquisition, transmission and control in modern industrial automation systems.

140CPU65150 The module consists of multiple units, including input/output (I/O) modules, communication modules, encoder interface modules, etc., and is connected to a PLC or other controller through

 an internal bus. When an external sensor or actuator detects a change in a physical quantity, it converts this information into an electrical signal and sends it to the I/O module. Then the I/O module forwards

these data to the PLC for processing, and after the PLC completes the logical operation, the I/O module drives the actuator to achieve the operation of the target object.

The 140CPU65150 is clocked at 166 Mhz and has two local racks with 63 distributed I/O stations, one rack, and three distributed networks. It has 8,000 discrete inputs and outputs in a distributed network and

31,744 discrete inputs and inputs in a remote system. Its data rate is 10/100 Mbps and is only compatible with Unity Pro software.

The module also has some application-specific functions, such as being able to be used as a time stamp, counter, high-speed interrupt input, and serial link. It supports 6 optional modules including Ethernet,

 Modbus, Modbus Plus, Profibus DP and Sy/Max. In the local AS interface, the module has an unlimited maximum number of connections and has 4 integrated connection types - Ethernet TCP/IP, Modbus,

Modbus Plus, and USB. It also has an expandable 8 MB file storage, 7168 kB or expandable programming, and 768 kB of memory.

The 140CPU65150 module uses an RJ-45 connection to communicate, and only its web server functionality is for diagnostic purposes only, so its services must be configured using the software. In addition,

it has a key switch memory port to enable the on/off function, and requires the use of shielded twisted pair wire as the medium.

In general, the 140CPU65150 module is a feature-rich, stable electrical control equipment, widely used in the field of industrial automation.
