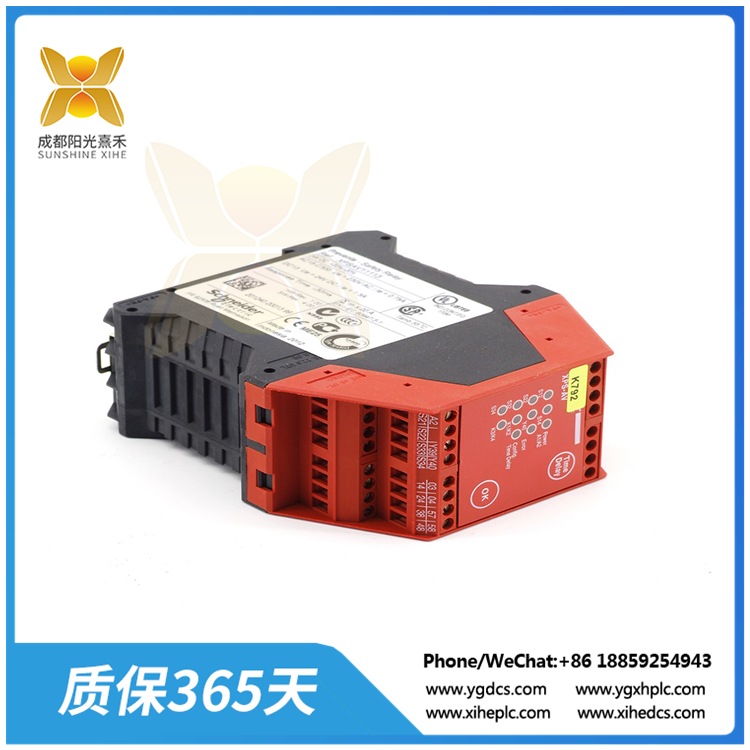

XPSAV11113 | 安全繼電器模塊 | 對緊急停機與開關的監控
產品類型:安全繼電器模塊
產品型號：XPSAV11113
安全模塊應用:對緊急停機與開關的監控
模塊功能：
2 個 NC 觸點的緊急停機按鈕，監控的起動
緊急停機監控， 2 通道接線
監控與 2 個開關與自動起動相關的可移動保護
1 個 NC 觸點的緊急停機按鈕，自動起動或無監控的起動
緊急停機監控， 1 通道接線
輸出類型
繼電器瞬動斷開, 3 NO 電路, Volt-free
繼電器時間延遲斷開, 3 NO 電路, Volt-free
其他回路的數量
3 個固態輸出
XPSAV11113 安全繼電器模塊是一種專門用于提高電路安全性的裝置，它結合了多個繼電器與邏輯電路，旨在互補彼此在故障狀態下的缺陷，降低失誤和失效值，從而提高整體的安全因素。以下是對安全繼電器模塊的詳細介紹：
定義與特點
定義：XPSAV11113 安全繼電器模塊是由多個繼電器與邏輯電路組合而成的一種模塊，用于保護不同等級機械設備和機械操作人員免受危險。
模塊性：安全繼電器是一種模塊，而不是像普通繼電器那樣的電子元件。
高性能與高可靠性：安全繼電器模塊采用高品質的材料和先進的制造技術，確保長時間連續運行的穩定性和可靠性。
功能與應用
安全邏輯處理：XPSAV11113能夠監測輸入信號并根據預設的安全邏輯進行處理，實現對工廠設備和生產過程中的各種安全事件和狀態的實時監測和控制。
安全輸入/輸出：模塊具有多個安全輸入和輸出通道，用于連接安全傳感器、安全開關、安全按鈕等設備，以及控制安全執行器、安全剎車等裝置。
安全邏輯編程：支持圖形化的安全邏輯編程工具，使用戶能夠輕松地配置安全邏輯，并靈活地適應不同的安全應用場景。
故障診斷與報警：XPSAV11113具有故障診斷功能，能夠監測模塊本身以及與之連接的設備的狀態，及時發現故障并生成相應的報警信號。
符合安全標準：通常符合國際安全標準和認證要求，如IEC 61508、IEC 61511等，保證在安全應用中的可靠性和合規性。
工作原理
XPSAV11113 安全繼電器模塊利用電流產生的磁場效應進行工作。當電路中發生觸點閉合或斷開的瞬時過電流時，在觸點兩端產生一定的電磁吸力，使觸點迅速閉合或斷開。如果電磁吸力超過一定值時，則常閉觸點和常開觸點就分離開關合或斷開。
Product Type: Safety relay module
Product model: XPSAV11113
Safety module application: Monitoring of emergency shutdowns and switches
Module function:
2 NC contact emergency stop buttons to monitor the start
Emergency shutdown monitoring, 2-channel wiring
Monitors removable protection associated with 2 switches and automatic start
Emergency stop button with 1 NC contact for automatic start or unmonitored start
Emergency shutdown monitoring, channel 1 wiring
Output type
Relay instantaneous disconnect, 3 NO circuit, Volt-free
Relay time delay off, 3 NO circuit, Volt-free
The number of other circuits
3 solid state outputs
The XPSAV11113 safety relay module is a device specifically designed to improve circuit safety, which combines multiple relays and logic circuits to complement each other's defects in the fault state, reduce errors and failure values, and thus improve the overall safety factor. The following is a detailed introduction to the safety relay module:
Definition and characteristics
Definition: The XPSAV11113 safety relay module is a module composed of multiple relays and logic circuits to protect different levels of mechanical equipment and mechanical operators from danger.
Modularity: A safety relay is a module, not an electronic component like a normal relay.
High performance and reliability: The safety relay module uses high-quality materials and advanced manufacturing technology to ensure long-term continuous operation stability and reliability.
Function and application
Safety logic processing: XPSAV11113 can monitor the input signal and process it according to the preset safety logic to achieve real-time monitoring and control of various safety events and conditions in the factory equipment and production process.
Safety input/output: The module has multiple safety input and output channels for connecting safety sensors, safety switches, safety buttons and other devices, as well as controlling safety actuators, safety brakes and other devices.
Security logic programming: Supports graphical security logic programming tools, enabling users to easily configure security logic and flexibly adapt to different security application scenarios.
Fault diagnosis and alarm: XPSAV11113 has the fault diagnosis function, which can monitor the status of the module itself and the equipment connected with it, find the fault in time and generate the corresponding alarm signal.
Compliance with safety standards: Usually in compliance with international safety standards and certification requirements, such as IEC 61508, IEC 61511, etc., to ensure reliability and compliance in safety applications.
Working principle
The XPSAV11113 safety relay module operates using the magnetic field effect generated by the current. When the instantaneous overcurrent of contact closing or breaking occurs in the circuit, a certain electromagnetic suction force is generated at both ends of the contact to make the contact quickly close or break. If the electromagnetic suction exceeds a certain value, the normally closed contact and the normally open contact will separate the switch or disconnect.
