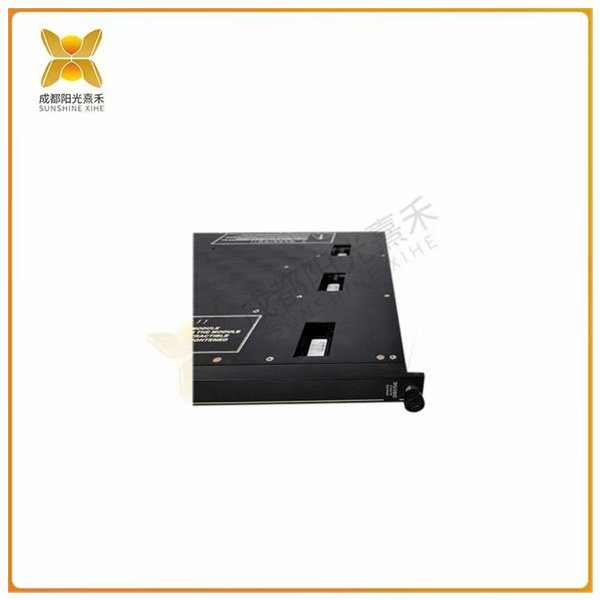

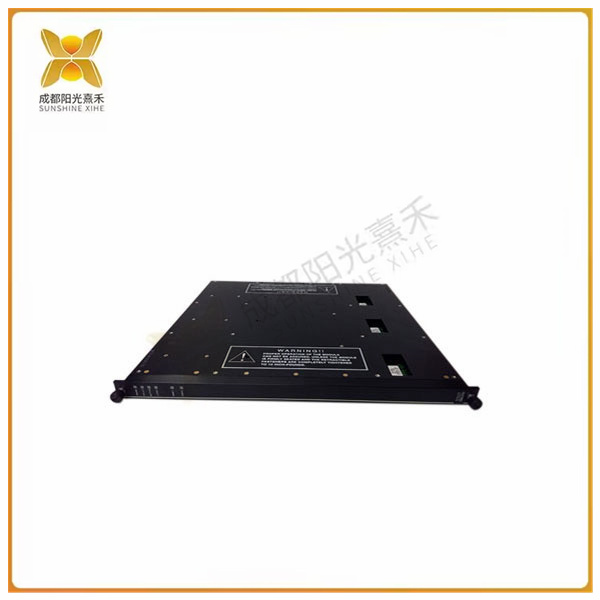

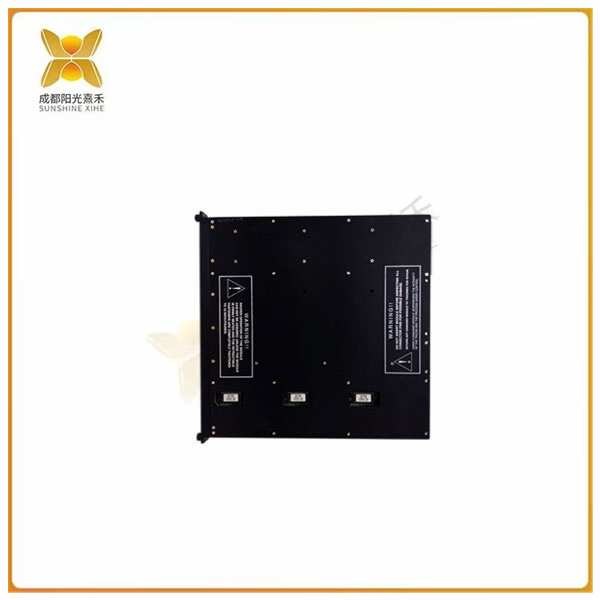

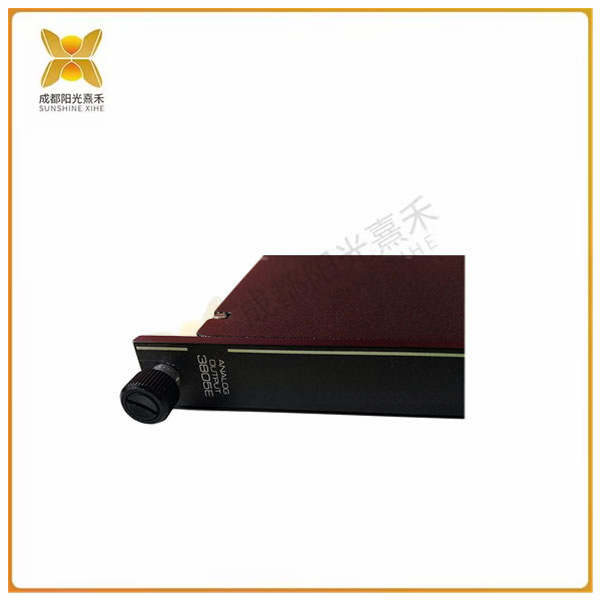

>>>>>型號:Triconex 3805E 模擬量輸出模塊 4-20 mA輸出

【功能描述】

品牌：Triconex

產品編號：3805E型

產品類型：模擬量輸出模塊

類型：TMR

輸出電流范圍：4-20 mA輸出（+6%超量程）

輸出點數：8

隔離點：否、共回路、直流耦合

分辨率：12位

輸出精度：FSR（0-21.2 mA）的<0.25%（在4-20 mA范圍內），從32°到140°F（0°到60°C）

超量程保護：+42.5 VDC，連續

支腿故障時的開關時間：<10 ms，典型值

顏色：豌豆綠

重量：4公斤

尺寸：9公斤

發貨重量：10公斤

>>>>>型號:Triconex 3805E 模擬量輸出模塊 4-20 mA輸出

【英文介紹】

TRICONEX 3720 The Triconex communication module is a communication mastery module commonly used in industry mastery systems to fulfill communication with other equipment, systems and collections. This module is usually used to stop data exchange and communication with external equipment, PLC (non-programming logic master), HMI (human-machine interface), SCADA (monitoring and data acquisition system), etc.

The TRICONEX 3720 Triconex system is fully compliant with IEC61508/61511 standards, and uses the latest TMR microprocessor hardware technology and the proven and reliable TRISTATION 1131 software for triple redundancy and fault-tolerant control. The system has high reliability and high utilization rate, and is used in petrochemical, oil refining, oil and gas, chemical industry, electric power, rail transit, aerospace, nuclear industry and other industries.

TRICONEX 3720 The Triconex communication module supports a variety of communication methods, including:

Ethernet communication: Supports TCP/IP, UDP, and other protocols, and can interact with other devices, controllers, or upper-level systems.

RS485 communication: often used to communicate with the host computer, can be used for data interaction with other PLC, touch screen and other devices.

Modbus communication: Supports the Modbus protocol and can interact with other devices.

Profibus communication: Supports the Profibus protocol and can interact with other devices.

232/485 Communication: Communicates with computers, HMI and other devices through serial ports.

TRICONEX 3720 In addition, Triconex communication module also supports 422 communication, CAN bus communication and so on.

>>>>>型號:Triconex 3805E 模擬量輸出模塊 4-20 mA輸出
