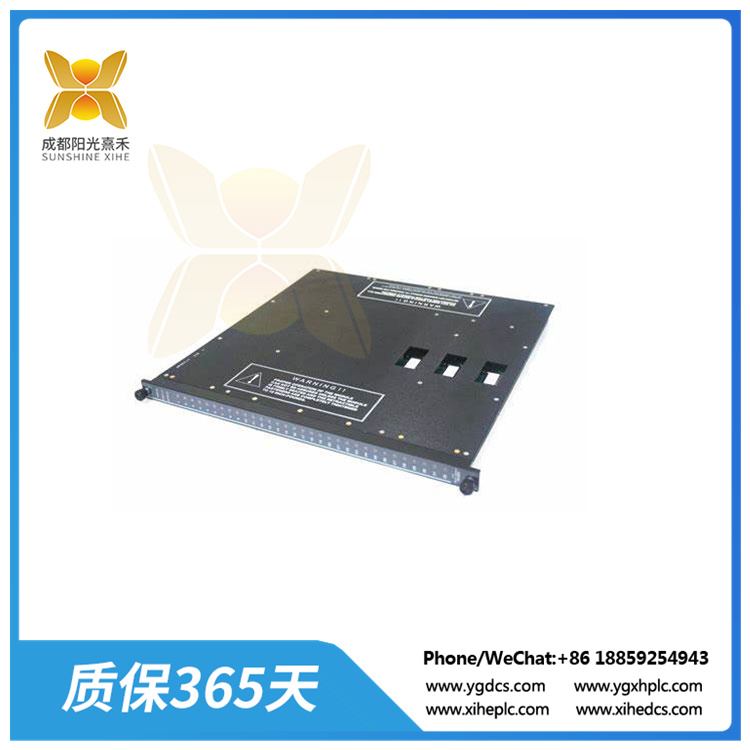

TRICONEX 4000029-010 | 模擬輸出模塊 將數字信號轉換為模擬量信號

　　TRICONEX 4101.jpg

　　型號：TRICONEX 4000029-010

　　輸出信號16，公共

　　電壓范圍16-30伏直流電

　　最大電壓36伏直流電

　　電壓降%3C 1.5 VDC，典型

　　電源模塊負載%3C 10瓦

　　電流額定值，每點最高0.7A

　　TRICONEX 4000029-010模擬輸出模塊是驅動硬件輸出和相關數據通路的關鍵組件，其功能在于按照特定的運行方式選擇當前的設定值，并且根據需要反向提供結果給硬件輸出或軟件輸出。在控制系統中，模擬輸出模塊扮演著將數字信號轉換為模擬量信號的重要角色，進而控制執行器(如執行閥、電機等)的工作狀態，如控制閥門的開度、電機的轉速等。

　　TRICONEX 4000029-010模擬輸出模塊的應用非常廣泛，尤其在工業控制領域中。例如，在溫度控制系統中，模擬輸出模塊可以將PLC輸出的控制信號轉換成相應的電壓或電流輸出，以控制溫度控制器、加熱器或冷卻器的工作狀態和效果。同樣，在液位控制系統和速度控制系統中，模擬輸出模塊也發揮著至關重要的作用。

　　在配置和使用模擬輸出模塊時，需要考慮多種因素，如模塊的輸出類型、精度、響應速度等，以確保其能夠滿足特定應用場景的需求。此外，為了確保模擬輸出模塊的準確性和穩定性，還需要定期對其進行維護和校準。

　　Model: TRICONEX 4000029-010

　　Output signal 16, public

　　Voltage range 16-30 volts DC

　　The maximum voltage is 36 volts DC

　　Voltage drop %3C 1.5 VDC, typical

　　Power module load % 310W

　　Current rating, up to 0.7A per point

　　The TRICONEX 4000029-010 Analog output module is a key component that drives the hardware output and the associated data path, its function is to select the current set point in a particular mode of operation and provide the result in reverse to the hardware output or software output as required. In the control system, the analog output module plays an important role in converting the digital signal to the analog signal, and then controls the working state of the actuator (such as the executive valve, the motor, etc.), such as controlling the opening of the valve and the speed of the motor.

　　The TRICONEX 4000029-010 analog output module is used in a wide range of applications, especially in the field of industrial control. For example, in the temperature control system, the analog output module can convert the control signal output by the PLC into the corresponding voltage or current output to control the working state and effect of the temperature controller, heater or cooler. Similarly, in the liquid level control system and speed control system, the analog output module also plays a crucial role.

　　When configuring and using an analog output module, many factors need to be considered, such as the output type of the module, accuracy, response speed, etc., to ensure that it can meet the needs of a specific application scenario. In addition, in order to ensure the accuracy and stability of the analog output module, it needs to be regularly maintained and calibrated.
