TRICONEX 3614E | TRICONEX 3101 模塊監控DO組件

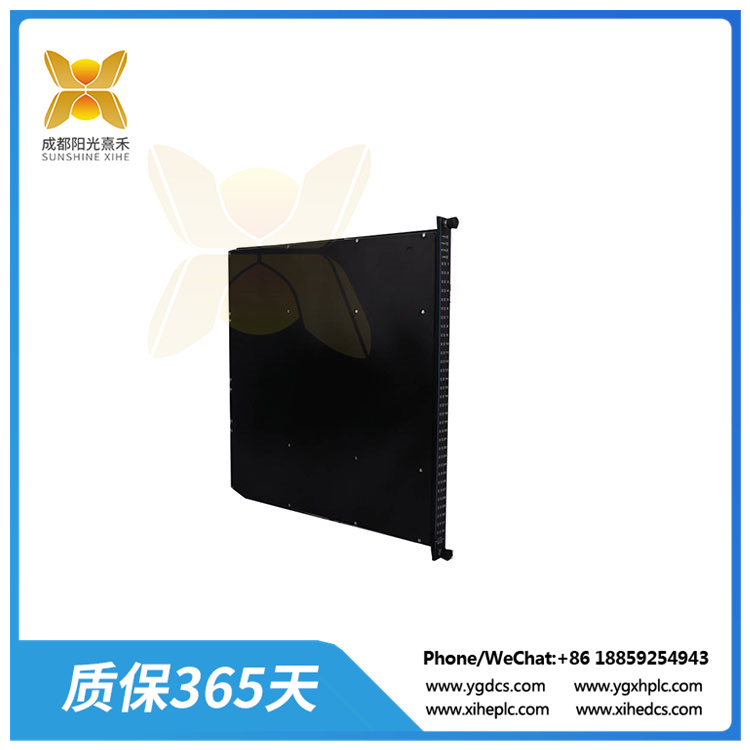

TRICONEX 3614E
制造商:Triconex
產品編號:3614E
產品類型:模塊監控DO組件
運輸重量:5公斤
Triconex Tricon控制系統介紹:
Tricon控制系統的主要特點
Tricon是一種高容錯的可編程和過程控制技術。
基特點如下:
1.提供三模冗余結構(TMR),具有三個相同的子電路，每個子電路執行獨立程度的控制，還有一個專用的硬件/軟件架構，用于對輸入和輸出進行"表
決"
能夠忍受惡劣的工業環境
2.它可以在現場安裝，并且可以在不干擾現場布線的情況下在現場在線安裝和修復模塊級。
3.支持多達118個//0模塊(模擬和數字)和可選通信模塊。通信模塊可以連接到Modbus主機和從厘設備，或連接到Foxboro和Honewwel分布式控制系統(DCS)，對等網絡中的其他Ticons，以及TCP/P網絡中的外部主機。
模擬輸出模塊是驅動硬件輸出和相關數據通路的關鍵組件，其功能在于按照特定的運行方式選擇當前的設定值，并且根據需要反向提供結果給硬件輸出或軟件輸出。在控制系統中，模擬輸出模塊扮演著將數字信號轉換為模擬量信號的重要角色，進而控制執行器(如執行閥、電機等)的工作狀態，如控制閥門的開度、電機的轉速等。
TRICONEX 3614E模擬輸出模塊的應用非常廣泛，尤其在工業控制領域中。例如，在溫度控制系統中，模擬輸出模塊可以將PLC輸出的控制信號轉換成相應的電壓或電流輸出，以控制溫度控制器、加熱器或冷卻器的工作狀態和效果。同樣，在液位控制系統和速度控制系統中，模擬輸出模塊也發揮著至關重要的作用。
TRICONEX 3614E
Manufacturer :Triconex
Product Number :3614E
Product Type: Module Monitors the DO component
Shipping weight :5 kg
Triconex Tricon Control System Introduction:
Key features of the Tricon control system
Tricon is a highly fault-tolerant programmable and process control technology.
The basic features are as follows:
1. Provides a three-mode redundancy structure (TMR) with three identical subcircuits, each performing an independent degree of control, and a dedicated hardware/software architecture for tabulating inputs and outputs
Definitely."
Able to endure harsh industrial environments
2. It can be installed in the field, and the module level can be installed and repaired online in the field without interfering with the field wiring.
3. Support up to 118 //0 modules (analog and digital) and optional communication modules. Communication modules can be connected to Modbus hosts and slave devices, or to Foxboro and Honewwel Distributed Control Systems (DCS), other Ticons in peer-to-peer networks, and external hosts in TCP/P networks.
The analog output module is the key component that drives the hardware output and the related data path, its function is to select the current set point according to the specific operation mode, and provide the result to the hardware output or the software output as required. In the control system, the analog output module plays an important role in converting the digital signal to the analog signal, and then controls the working state of the actuator (such as the executive valve, the motor, etc.), such as controlling the opening of the valve and the speed of the motor.
The TRICONEX 3614E analog output module has a wide range of applications, especially in the field of industrial control. For example, in the temperature control system, the analog output module can convert the control signal output by the PLC into the corresponding voltage or current output to control the working state and effect of the temperature controller, heater or cooler. Similarly, in the liquid level control system and speed control system, the analog output module also plays a crucial role.
