>>>>>型號:8200-1302 數字調速器 充當圖形界面和鍵盤
【功能描述】
8200-1302 是可用于控制汽輪機的幾款伍德沃德 505 數字調速器之一。該操作員控制面板充當圖形界面和鍵盤，允許對渦輪機進行調整并與之通信。這可以通過位于設備上的 Modbus 通信端口進行配置。
8200-1302 具有多種可用功能：
熱啟動和冷啟動的自動啟動順序，具有溫度輸入選項
三速頻段的臨界速度規避
10 個外部報警輸入
10 個外部 DI 跳閘輸入
具有相關 RTC 時間戳的跳閘和報警事件的跳閘指示
雙速度和負載動態
超速跳閘的峰值速度指示
零速檢測
遠程壓降
頻率死區
該裝置還提供三種正常工作模式，包括配置、操作和校準模式。
該裝置包括兩個冗余速度輸入，可以接受磁性拾取裝置、渦流探頭或接近探頭。它具有模擬輸入 （8），可針對 27 種功能中的任何一種進行配置。該裝置還具有額外的 20 個觸點輸入。這些觸點中的前四個觸點默認用于關斷、提高速度設定點、復位和降低速度設定點。其他的可以根據需要進行配置。此外，該裝置還具有兩個 4-20 mA 控制輸出和八個 Form-C 繼電器觸點輸出。

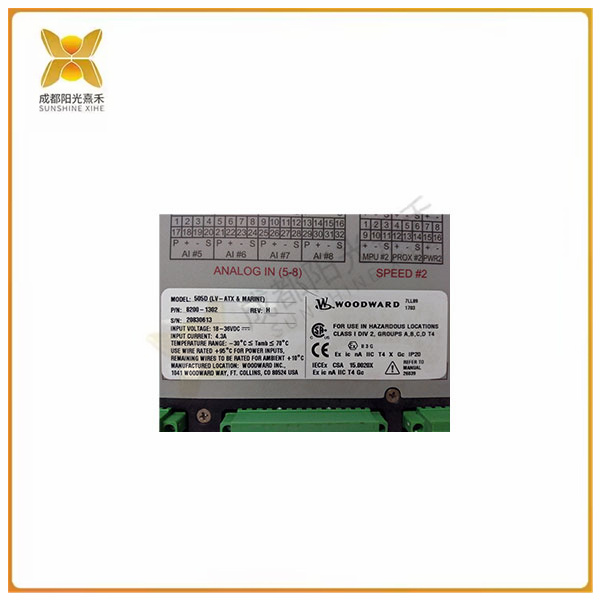

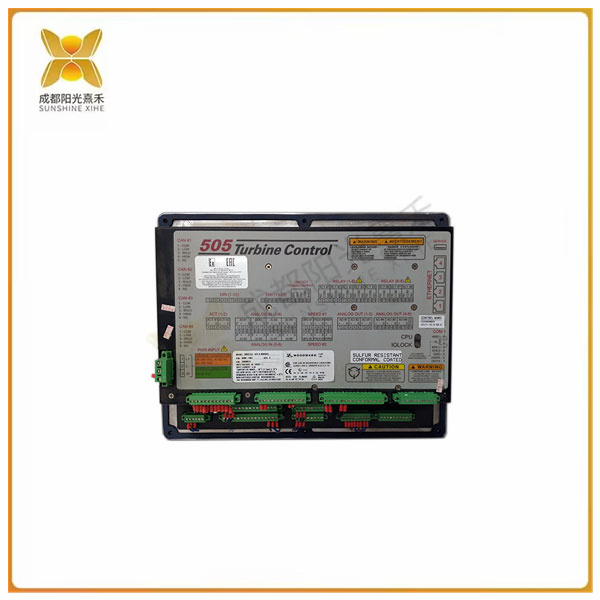

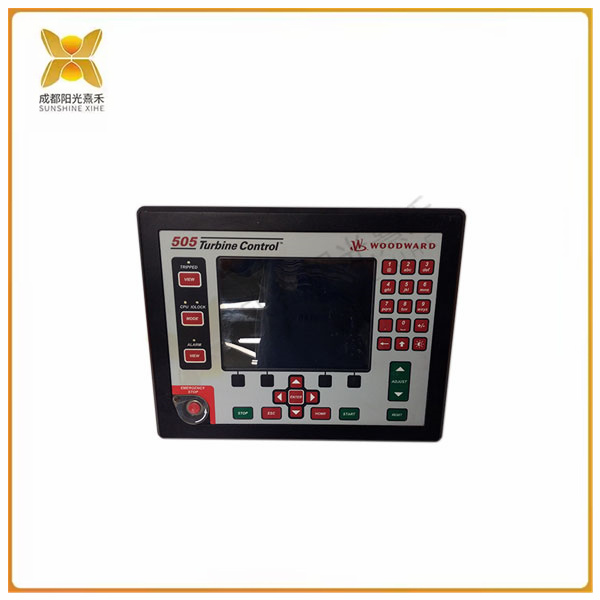

8200-1302 的前面板包括一個緊急跳閘鍵、一個退格/刪除鍵、一個 shift 鍵，以及視圖、模式、ESC 和 Home 鍵。它還具有導航十字鍵、軟鍵命令和四個 LED，用于關聯控制和硬件的狀態。
有關 8200-1302 的使用和安裝的更多信息，請參閱伍德沃德的原始文檔。
>>>>>型號:8200-1302 數字調速器 充當圖形界面和鍵盤
【英文介紹】
The 8200-1302 is one of several Woodward 505 digital governors available to control steam turbines. The operator control panel acts as a graphical interface and keyboard, allowing the turbine to be adjusted and communicated with. This can be configured via a Modbus communication port located on the device.
The 8200-1302 has a variety of functions available:
Automatic start sequence for hot start and cold start, with temperature input option
Critical speed evasion in the three-speed band
10 external alarm inputs
10 external DI trip inputs
Trip indication with associated RTC time stamps and alarm events
Dual speed and load dynamics
Peak speed indication of overspeed trip
Zero speed detection
Long range voltage drop
Frequency dead zone
The unit also offers three normal operating modes, including configuration, operation and calibration modes.
The device includes two redundant speed inputs and can accept a magnetic pickup device, eddy current probe, or proximity probe. It has analog inputs (8) and can be configured for any of the 27 functions. The device also has an additional 20 contact inputs. The first four of these contacts are used by default to turn off, raise speed setpoints, reset, and lower speed setpoints. Others can be configured as needed. In addition, the unit has two 4-20 mA control outputs and eight Form-C relay contact outputs.
The front panel of the 8200-1302 includes an emergency trip key, a backspace/delete key, a shift key, as well as the view, Mode, ESC, and Home keys. It also has navigation cross keys, soft key commands, and four leds to correlate the state of the control and hardware.
For more information on the use and installation of the 8200-1302, see Woodward's original documentation.
