>>>>>型號:1753-L32BBBM-8A 控制器 帶有 24 個非電氣隔離的數字輸入

【功能描述】

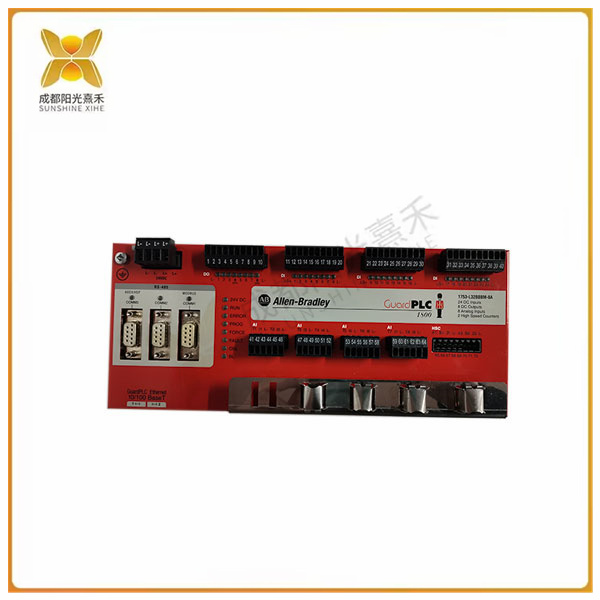

 Allen-Bradley 1753-L32BBBM-8A 控制器是 Allen-Bradley GuardPLC 系列的一部分，旨在用作完整 GuardPLC 系統的一部分。它帶有 24 個非電氣隔離的數字輸入和 8 個非電氣隔離的數字輸出。1753-L32BBBM-8A 控制器還具有 8 個單極性模擬輸入，非電氣隔離。該控制器的工作溫度范圍為 32 至 140 華氏度，其存儲溫度范圍為 -40 至 185 華氏度。1753-L32BBBM-8A 控制器的防護等級相對較低，為 IP 20。Allen-Bradley 1753-L32BBBM-8A 是 GuardPLC 1800 系列的安全控制器。該控制器在 GuardPLC 控制器中具有最多的 I/O 點。它配備了 32 個 I/O 點（24 個輸入和 8 個輸出，沒有一個是電氣隔離的）。輸出通道 4 和 8 在 60 攝氏度時可承受 1 安培的電流，其他通道的額定電流為 0.5 安培。1753-L32BBBM-8A 控制器還具有 2 個（非電氣隔離）高速計數器，分辨率為 24 位。安裝了 250 KB 的用戶程序存儲器和 250 KB 的應用數據存儲器，以支持微處理器進行故障處理。該設備將檢測其控制系統行為中的故障，并將故障模塊的所有受影響的輸入和輸出置于安全狀態。

1753-L32BBBM-8A GuardPLC 1800 控制器的特點是 Modbus 通信選項。用戶可以使用此通信協議與其他工業自動化設備交換信號值和其他數據。Allen-Bradley 1753-L32BBBM-8A 設計用于連接到 24 伏直流/8 安培電源。它采用 IP20 防護外殼，尺寸為 114 毫米（4.49 英寸）x 257 毫米（10.1 英寸）x 80 毫米（3.15 英寸），包括屏蔽板。它的重量約為 2.6 磅（1.2 千克）。請勿在 0 至 60 攝氏度（32 至 140 華氏度）溫度范圍之外使用本設備。該控制器已通過嚴格的測試，通過了 CE、C-Tick 和 c-UL-us 標準認證。

 >>>>>型號:1753-L32BBBM-8A 控制器 帶有 24 個非電氣隔離的數字輸入

【英文介紹】

The Allen-Bradley 1753-L32BBM-8A controller is part of the Allen-Bradley GuardPLC family and is intended to be used as part of a complete GuardPLC system. It comes with 24 non-electrically isolated digital inputs and 8 non-electrically isolated digital outputs. The 1753-L32BBM-8A controller also features eight unipolar analog inputs that are not electrically isolated. The controller operates from 32 to 140 degrees Fahrenheit and its storage temperature ranges from -40 to 185 degrees Fahrenheit. The 1753-L32BBM-8A controller has a relatively low protection rating of IP 20. Allen-Bradley 1753-L32BBM-8A is the GuardPLC 1800 series safety controller. This controller has the most I/O points among GuardPLC controllers. It is equipped with 32 I/O points (24 inputs and 8 outputs, none of which are electrically isolated). Output channels 4 and 8 can withstand a current of 1 amp at 60 degrees Celsius, while the other channels are rated for 0.5 amp. The 1753-L32BBM-8A controller also features 2 (non-electrically isolated) high-speed counters with a resolution of 24 bits. 250 KB of user program memory and 250 KB of application data memory were installed to support the microprocessor for troubleshooting. The device will detect faults in the behavior of its control system and place all affected inputs and outputs of the failed module in a safe state.

The 1753-L32BBM-8A GuardPLC 1800 controller features a Modbus communication option. Users can use this communication protocol to exchange signal values and other data with other industrial automation equipment. Allen-Bradley 1753-L32BBM-8A is designed to connect to a 24 volt DC /8 amp power supply. It features an IP20 protective housing measuring 114 mm (4.49 in) x 257 mm (10.1 in) x 80 mm (3.15 in), including a shield plate. It weighs about 2.6 pounds (1.2 kg). Do not use this device outside the temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). The controller has passed rigorous testing and is certified to CE, C-Tick and c-UL-us standards.

>>>>>型號:1753-L32BBBM-8A 控制器 帶有 24 個非電氣隔離的數字輸入
