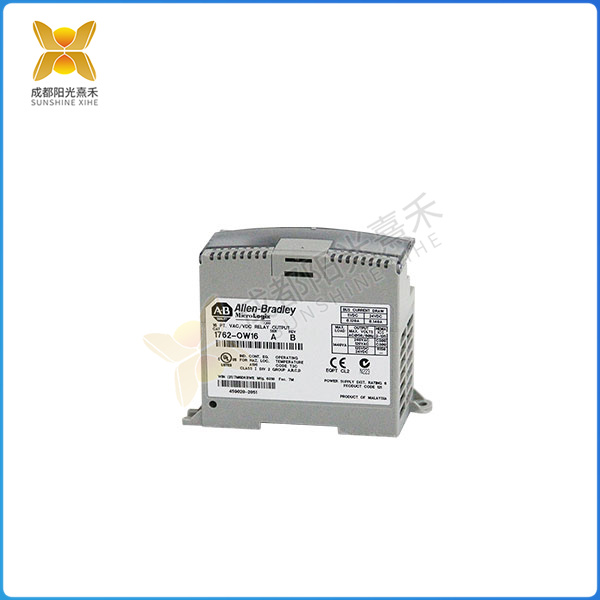

>>>>>型號:1762-OW16 MicroLogix繼電器輸出擴展模塊
【功能描述】
1762-OW16 是一款 MicroLogix 繼電器輸出擴展模塊。
該模塊設計用于增強 MicroLogix 1100、1200 和 1400 可編程邏輯控制器（PLC）的輸出能力。
以下是關于 1762-OW16 的一些主要特點和規格：
1. 輸出能力：該模塊具有十六（16）個繼電器觸點輸出，可用于電氣負載的通電和斷電。它可以在 24-125VDC 和 120-240 VAC 的電壓范圍內工作。
信號延遲：對于 ON 至 OFF 和 OFF 至 ON 轉換，每個輸出通道的信號延遲時間為 10 毫秒。
2. 電流容量：模塊的每個點的額定連續電流為 2.5 A，每個公共點的連續電流為 8A，每個模塊的連續電流為 16A。
3. 輸出組：1762-OW16 有兩個輸出組，每個組由八個通道組成。組 0 由輸出 0-7 組成，而組 1 由輸出 8-15 組成。
4. 浪涌抑制：建議在感性負載上安裝浪涌抑制器，以保護模塊免受高浪涌電流的損害，從而延長模塊的使用壽命。
5. 兼容性：與 MicroLogix 1100 控制器一起使用時，最多可以安裝四個此模塊的實例。如果與 MicroLogix 1200 一起使用，則最多支持六個模塊，而與 MicroLogix 7 一起使用時允許使用七個模塊。
>>>>>型號:1762-OW16 MicroLogix繼電器輸出擴展模塊
【英文介紹】
The 1762-OW16 is a MicroLogix relay output expansion module.
The module is designed to enhance the output capabilities of MicroLogix 1100, 1200 and 1400 programmable logic controllers (PLCS).
Here are some of the main features and specifications of the 1762-OW16:
1. Output capability: The module has sixteen (16) relay contact outputs that can be used to power on and off electrical loads.
It can operate in the voltage range of 24-125VDC and 120-240 VAC.
2. Signal delay: For ON to OFF and OFF to ON conversions, the signal delay time for each output channel is 10 milliseconds.
3. Current capacity: The rated continuous current of each point of the module is 2.5A, the continuous current of each
common point is 8A, and the continuous current of each module is 16A.
4. Output group: 1762-OW16 has two output groups, each group consists of eight channels. Group 0 consists of outputs 0-7, while group 1 consists of outputs 8-15.
5. Surge suppression: It is recommended to install a surge suppressor on the inductive load to protect the module from
high surge current damage, thereby extending the service life of the module.
6. Compatibility: Up to four instances of this module can be installed when used with the MicroLogix 1100 controller.
Up to six modules are supported if used with the MicroLogix 1200, while seven modules are allowed when used with the MicroLogix 7.
