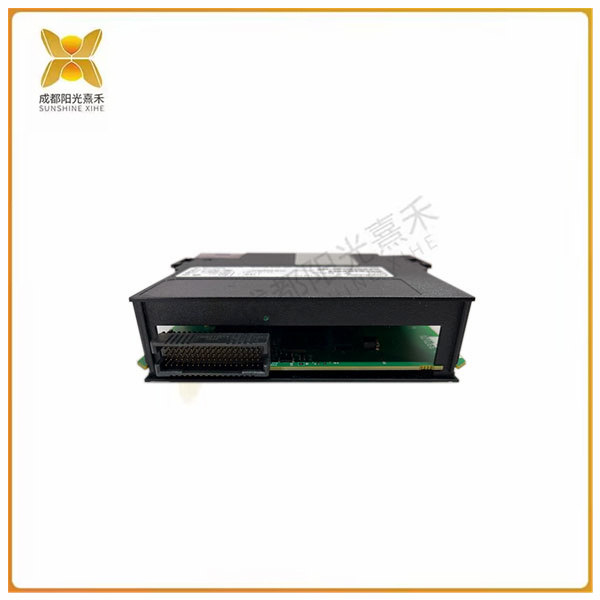

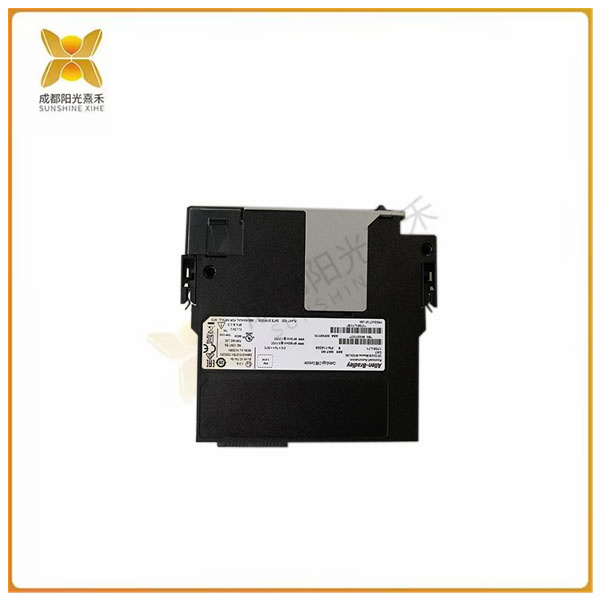

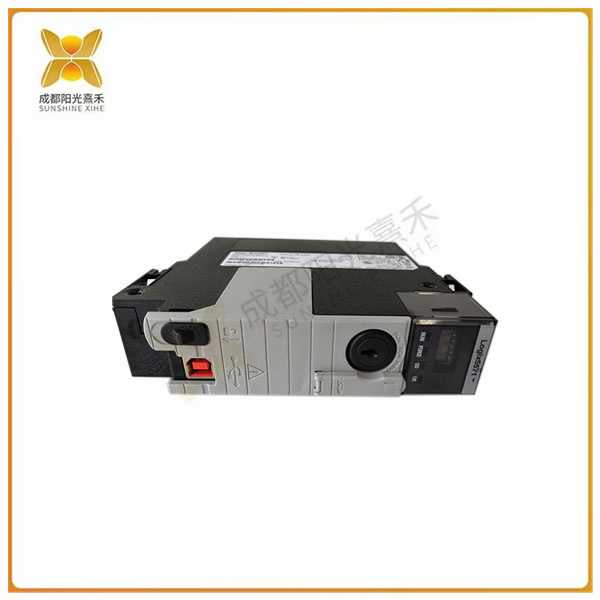

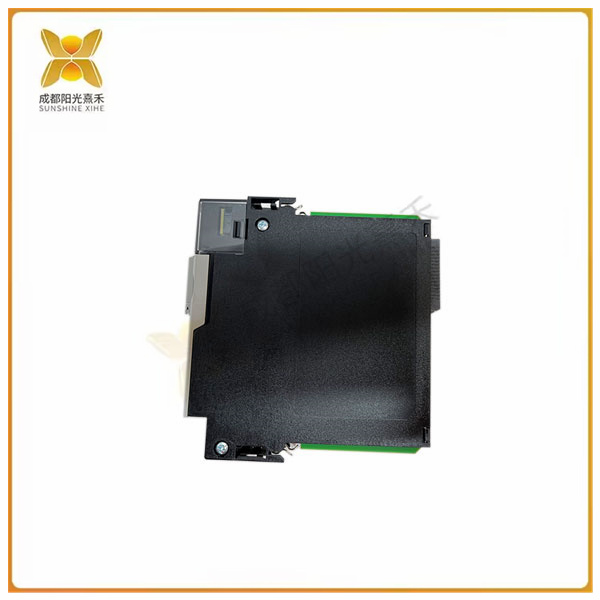

>>>>>型號:1756-L71 可編程自動化控制器 具有板載 字母數字顯示屏
【功能描述】
1756-L71 的技術參數
制造者 羅克韋爾自動化
系列 ControlLogix
集成運動控制 ? SERCOS 接口 ? 模擬選項（編碼器輸入、LDT 輸入、SSI 輸入） ? EtherNet/IP 網絡上的集成運動控制
冗余 全面支持
可選通信適配器 ? 以太網/IP ? 控制網 ? 設備網絡 ? 數據高速公路增強版 ? 遠程 I/O ? 同步鏈接 ? 第三方流程和設備網絡
內置通信 1 個 USB 端口
Allen-Bradley 1756-L71 是一款 ControlLogix 可編程自動化控制器。它具有 2 MB 的用戶內存和 0.98 MB 的 I/O 內存。它還具有板載 4 個字符的字母數字顯示屏，可輕松監控運行時和模塊信息以及控制器診斷。它有一個開放式外殼和內置的一 （1） 個 2.0 全速 USB 端口?？捎玫耐ㄐ胚x項包括 DeviceNet、ControlNet、EtherNet/IP、Remote I/O Data Highway Plus、第三方進程和網絡以及 SynchLink。它還附帶一個 1 GB 非易失性內存，但您可以使用 1784-SD2 將其升級到 2 GB。建議將 SD 卡保留在控制器中。1756-L71 控制器隨附三個電容器儲能模塊，其中兩個是可拆卸的。它在 1.2 V DC 時的電流消耗為 5 mA，在 5.1 V DC 時的電流消耗為 800 mA。1756-L71 控制器還具有 30 伏的連續隔離電壓、2.5 瓦的最大功耗和 8.5 BTU/小時的散熱。它的最大模擬 I/O、數字 I/O 和總 I/O 分別為 4,000、128,000 和 128,000。此產品的工作溫度為 0 至 60 攝氏度，存儲溫度為 -40 至 85 攝氏度。其最高周圍空氣溫度為 60 攝氏度，非冷凝相對濕度為 5% 至 95%?？刂破髟?10 到 500 赫茲時具有 2G 的振動、30G 的運行沖擊和 50G 的非運行沖擊，安裝 SD 卡時會降至 45G。其它控制器可以要求用戶首先了解PLC寄存器，特別是字節和位，以便開始對程序元素進行尋址。使用 1756-L71，用戶只需插入一個程序元素并選擇物理連接 I/O 的邏輯通道。在其他PLC中，用戶可能會發現需要將一個寄存器移動到另一個寄存器以啟動轉換和處理，只是為了獲得模擬數據。該控制器只需用戶找到I/O信號物理端接的邏輯通道。
>>>>>型號:1756-L71 可編程自動化控制器 具有板載 字母數字顯示屏
【英文介紹】
Technical parameters of 1756-L71
Manufacturer Rockwell Automation
Series ControlLogix
Integrated motion control ? SERCOS interface ? Analog options (encoder input, LDT input, SSI input) ? Integrated motion control on EtherNet/IP networks
Full support for redundancy
Optional communication adapters ? Ethernet /IP ? Control network ? Device Network ? Data Superhighway Enhanced ? Remote I/O ? Synchronous links ? Third-party processes and device networks
Built-in communication 1 USB port
The Allen-Bradley 1756-L71 is a ControlLogix programmable automation controller. It has 2 MB of user memory and 0.98 MB of I/O memory. It also features an onboard 4-character alphanumeric display for easy monitoring of runtime and module information as well as controller diagnostics. It has an open housing and built-in one (1) 2.0 full speed USB ports. Available communication options include DeviceNet, ControlNet, EtherNet/IP, Remote I/O Data Highway Plus, third-party processes and networks, and SynchLink. It also comes with a 1 GB non-volatile memory, but you can upgrade it to 2 GB with the 1784-SD2. You are advised to keep the SD card in the controller. The 1756-L71 controller comes with three capacitor energy storage modules, two of which are removable. It has a current consumption of 5 mA at 1.2 V DC and 800 mA at 5.1 V DC. The 1756-L71 controller also features a continuous isolation voltage of 30 volts, a maximum power consumption of 2.5 watts, and a heat dissipation of 8.5 BTU/ hour. Its maximum analog I/O, digital I/O and total I/O are 4,000, 128,000 and 128,000, respectively. The operating temperature of this product is 0 to 60 degrees Celsius and the storage temperature is -40 to 85 degrees Celsius. It has a maximum ambient air temperature of 60 degrees Celsius and a non-condensing relative humidity of 5 to 95%. The controller has 2G vibration at 10 to 500 Hz, 30G operating shock, and 50G non-operating shock, dropping to 45G when SD card is installed. Other controllers may require the user to first understand the PLC registers, especially bytes and bits, in order to begin addressing program elements. With the 1756-L71, the user simply inserts a program element and selects the logical channel that physically connects the I/O. In other PLCS, users may find it necessary to move one register to another to initiate conversion and processing, just to get analog data. The controller only needs the user to find the logical channel to which the I/O signal is physically terminated.
