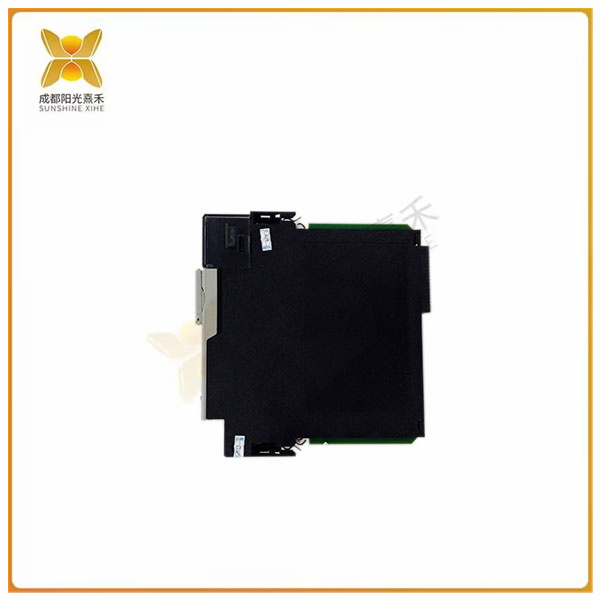

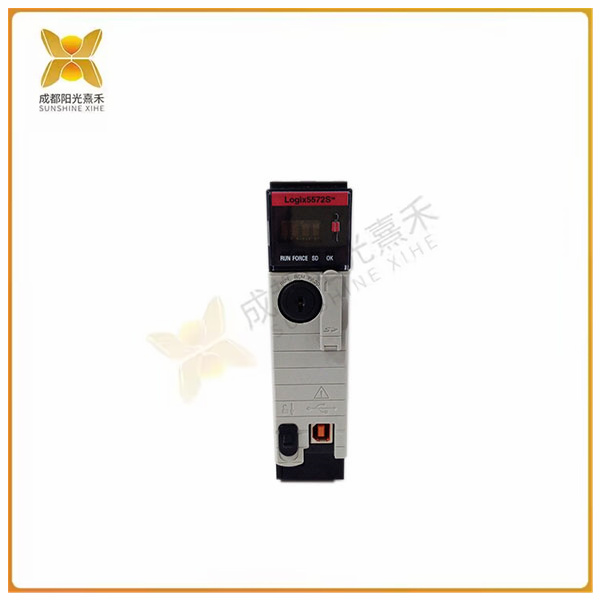

>>>>>型號:1756-L72S 控制器 具有安全控制功能
【功能描述】
Allen-Bradley 1756-L72S 是 GuardLogix 5570 控制器，是 Logix5000 系列控制器的一部分。它是一款具有安全控制功能的ControlLogix控制器。它是一種雙處理器解決方案，必須與 1756-L7SP 安全模塊配合使用，以滿足 SIL 3 或 Cat 標準。4/PLe安全標準。安全伙伴控制器是自動配置的，使單個項目受益。它具有出色的處理能力和運動速度以及高性能邏輯。它有一個用于通信的 USB 端口。它最多可支持 500 個控制器連接。1756-L72S 控制器具有 4MB 用戶內存、2MB 安全內存和 0.98MB I/O 內存。它可以支持 128,000 個數字 I/O 和 4000 個模擬 I/O。它在 1.2V DC 時消耗 5mA 的電流，在 5.1V DC 時消耗 800mA 的電流。它的功耗為 2.5W，散熱為 8.5 BTU/小時。它重 0.55 磅，具有 30V（連續）的隔離電壓，用于基本絕緣。它可以安裝在 ControlLogix 1756 機箱的任何插槽中，也可以在同一機箱中安裝多個控制器。為了安全通信，它使用 ControlNet、DeviceNet 或 EtherNet/IP 網絡。1756-L72S 控制器可以通過背板或通過 I/O 鏈路控制或監控 I/O。對于控制器診斷，它有一個提供運行時信息的前顯示屏。它使用儲能模塊運行，這意味著不需要鋰電池。預裝了 1 GB （1784-SD1） 安全數字卡作為可選的非易失性存儲器，可擴展至 2 GB （1784-SD2）。
Allen-Bradley 1756-L72S 是一款 5570 GuardLogix 可編程自動化控制器 （PAC）。該控制器具有標準和安全控制器功能。該控制器是主控制器，與目錄號為 1756-L7SP 或 1756-L7SPK 的安全合作伙伴一起使用，以達到安全集成級別 （SIL） 類別級別 （CL） 3/性能級別 e （PLe） /Cat。4. 評級。使用 1756-L72S，與專用安全控制器不同，標準和安全項目集成在一個文件中。
1756-L72S 具有大容量標準存儲器和專用安全存儲器。這些內存區域包括 4 MB 用戶內存、2 MB 安全內存、0.98 MB I/O 內存和 1 GB 非易失性存儲器，由控制器隨附的 1784-SD1 提供。它使 1756-L72S 能夠連接多達 128,000 個輸入和輸出 （I/O） 信號，這些信號可能由 128,000 個離散 I/O 和 4000 個模擬 I/O 組成。
>>>>>型號:1756-L72S 控制器 具有安全控制功能
【英文介紹】
Allen-Bradley 1756-L72S is the GuardLogix 5570 controller, part of the Logix5000 series of controllers. It is a ControlLogix controller with security controls. It is a dual-processor solution that must be used in conjunction with the 1756-L7SP safety module to meet SIL 3 or Cat standards. 4/PLe Safety standard. The Security Partner controller is automatically configured to benefit individual projects. It has excellent processing power and motion speed as well as high-performance logic. It has a USB port for communication. It supports up to 500 controller connections. The 1756-L72S controller has 4MB of user memory, 2MB of security memory, and 0.98MB of I/O memory. It can support 128,000 digital I/ OS and 4,000 analog I/ OS. It consumes 5mA of current at 1.2V DC and 800mA at 5.1V DC. It has a power consumption of 2.5W and a heat dissipation of 8.5 BTU/ hour. It weighs 0.55 pounds and has an isolation voltage of 30V (continuous) for basic insulation. It can be installed in any slot in the ControlLogix 1756 case, or multiple controllers can be installed in the same case. For secure communication, it uses ControlNet, DeviceNet, or EtherNet/IP networks. The 1756-L72S controller can control or monitor I/O through the backplane or through the I/O link. For controller diagnostics, it has a front display that provides runtime information. It operates using energy storage modules, which means there is no need for lithium batteries. A 1 GB (1784-SD1) secure digital card is pre-installed as an optional non-volatile memory, expandable up to 2 GB (1784-SD2).
The Allen-Bradley 1756-L72S is a 5570 GuardLogix programmable Automation controller (PAC). The controller has both standard and safety controller functions. This controller is the master controller and is used with a security partner with catalog number 1756-L7SP or 1756-L7SPK to reach Security Integration Level (SIL) Category Level (CL) 3/ Performance Level e (PLe) /Cat. 4. Rating. With the 1756-L72S, unlike dedicated safety controllers, standards and safety items are integrated in a single file.
The 1756-L72S has a large-capacity standard memory and a dedicated security memory. These memory areas include 4 MB of user memory, 2 MB of safe memory, 0.98 MB of I/O memory, and 1 GB of non-volatile memory, provided by the 1784-SD1 that came with the controller. It enables the 1756-L72S to connect up to 128,000 input and output (I/O) signals, which may consist of 128,000 discrete I/ OS and 4,000 analog I/ OS.
