>>>型號:1756-A10 機架背板 廣泛應用于工業控制 高速通信路徑
【功能描述】

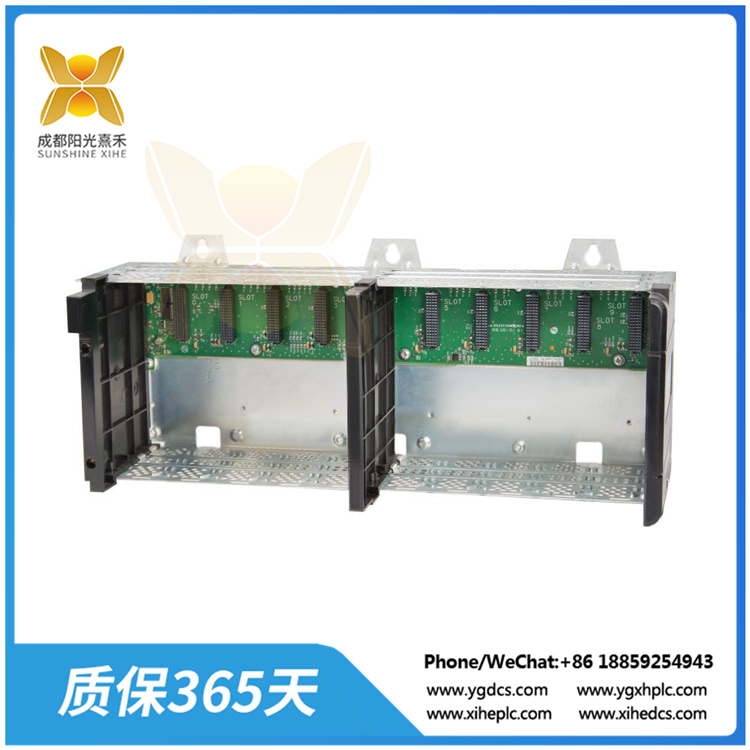

1756-A10是一個機架背板。它提供了模塊之間的高速通信路徑，并分配功率給每個機架內的模塊。這意味著，它負責在ControlLogix系統的不同模塊之間傳輸數據和指令，同時確保每個模塊都能得到足夠的電力供應。
1756-A10機架背板的設計允許任何ControlLogix模塊被置于任意插槽中，增強了系統的靈活性和可擴展性。如果需要填充空的插槽，可以使用槽填充器模塊（如1756-N2）。該背板特別設計用于水平安裝，確保在工業自動化環境中的穩定性和可靠性。
在功能方面，1756-A10機架背板具有多個時隙，每個時隙都有相應的背板電流限制。例如，其背板電流在機箱/時隙的最大值為1.5 A / 1.5 A。這樣的設計可以確保電流分配均勻，防止因過載而導致的設備損壞。
與1756-A10機架背板配套使用的，通常還有一條DIN安裝軌。這條安裝軌不僅用于固定模塊，還能方便地將模塊旋轉到位，實現堅固且具有EMC（電磁兼容性）的設計。
總的來說，1756-A10機架背板是ControlLogix系統中一個關鍵的硬件組件，它確保了系統內部的高效通信和電力分配，從而支持工業自動化設備的穩定運行。
>>>>型號:1756-A10 機架背板 廣泛應用于工業控制 高速通信路徑
【英文介紹】
The 1756-A10 is a rack backplane. It provides a high-speed communication path between modules and distributes power to modules within each rack. This means that it is responsible for transferring data and
instructions between the different modules of the ControlLogix system, while ensuring that each module receives an adequate supply of power.
The design of the 1756-A10 rack backplane allows any ControlLogix module to be placed in any slot, enhancing the flexibility and scalability of the system. If you need to fill an empty slot, you can use the slot filler
module (such as 1756-N2). The backplane is specially designed for horizontal installation, ensuring stability and reliability in industrial automation environments.
In terms of functionality, the 1756-A10 rack backplane features multiple time slots, each with a corresponding backplane current limit. For example, the maximum backplane current in the chassis/slot is 1.5 A / 1.5 A.
This design ensures that the current is evenly distributed and prevents equipment damage due to overload.
Used with the 1756-A10 frame backplane, there is usually a DIN mounting rail. This mounting rail not only holds the module in place, but also makes it easy to rotate the module into place for a robust and EMC
(Electromagnetic compatibility) design.
Overall, the 1756-A10 rack backplane is a key hardware component in the ControlLogix system, ensuring efficient communication and power distribution within the system to support the stable operation of industrial
automation equipment.
