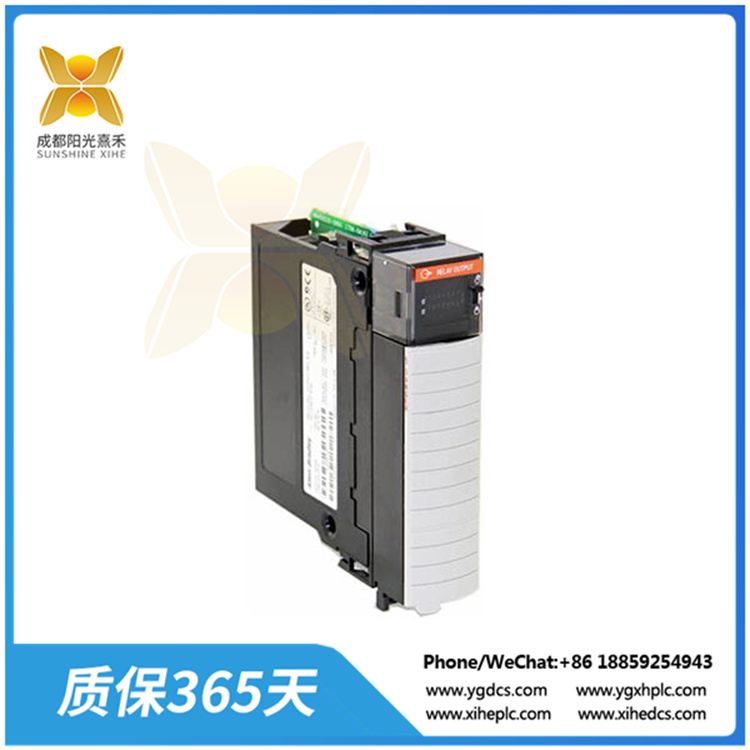

>>>型號:1756-OW161 繼電器輸出模塊 用于工業自動化產品 具有多種輸出電流額定值

【功能描述】

1756-OW161是一個繼電器輸出模塊，其觸點形式為常開，帶有獨立隔離，也可稱為干觸點輸出模塊。

1756-OW161能夠在5~125VDC和10~240VAC的電壓范圍內運行，具有多種輸出電流額定值，以適應不同的電壓條件。例如，在5~30V DC時，輸出電流額定值為1A；在48伏直流電時，

輸出電流為0.5A；在125伏直流電時，輸出電流為0.22A；在120伏交流電（50/60赫茲）時，輸出電流為1.5A；在240伏交流電（50/60赫茲）時，輸出電流為0.75A。

該模塊的先導占空比為C300/R150，每個輸出通道的輸出延遲時間為10ms（在5.1VDC和24VDC下）。從背板汲取的電流為150mA，總背板功耗為4.4瓦。

綜上所述，1756-OW161繼電器輸出模塊是一款功能強大、應用廣泛的工業自動化產品，能夠滿足多種復雜控制系統的需求。

>>>>型號:1756-OW161 繼電器輸出模塊 用于工業自動化產品 具有多種輸出電流額定值

【英文介紹】

The 1756-OW161 is a relay output module with a normally open contact form with independent isolation, also known as a dry contact output module.

The 1756-OW161 is capable of operating in the voltage range of 5~125VDC and 10~240VAC with a variety of output current ratings to accommodate different voltage conditions. For example, when

5~30V DC, the output current rating is 1A; At 48 volts DC, the output current is 0.5A; At 125 volts DC, the output current is 0.22A; At 120 volts AC (50/60 Hz), the output current is 1.5A; At 240 volts AC

 (50/60 Hz), the output current is 0.75A.

The module has a lead duty cycle of C300/R150 and an output delay time of 10ms per output channel (at 5.1VDC and 24VDC). The current drawn from the backplane is 150mA, and the total backplane

power consumption is 4.4 watts.

In summary, the 1756-OW161 relay output module is a powerful and widely used industrial automation product that can meet the needs of a variety of complex control systems.
