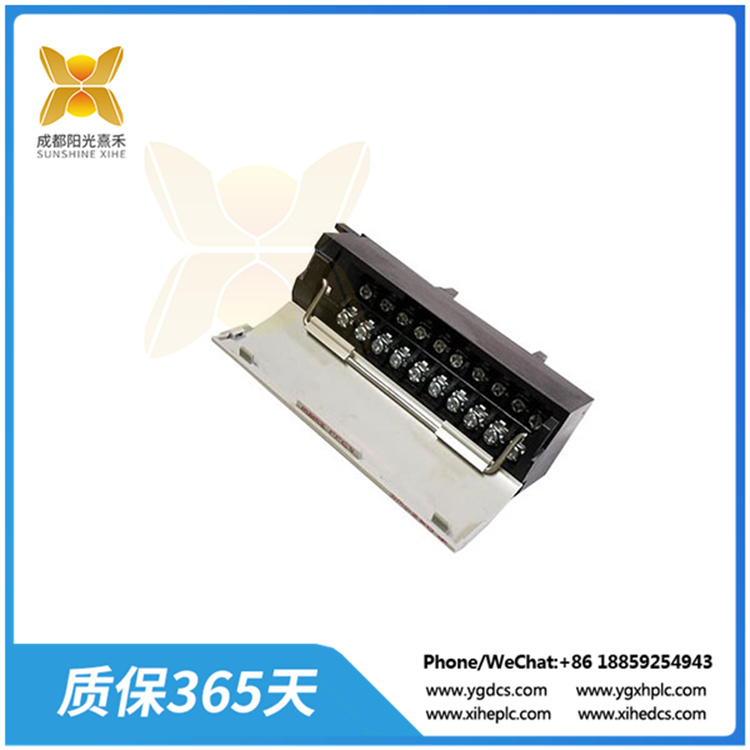

>>>型號:1756-TBNH 可拆卸接線端子 用于多種工業環境和應用場景
【功能描述】
1756-TBNH是一款由在ControlLogix系列中制造的可拆卸接線端子或RTB（遠程端子塊）模塊。它主要用于連接1756 I/O模塊和工業廠房布線，能夠靈活地互連這些組件。
1756-TBNH這款模塊具有多種特性，如它是一個20位NEMA螺絲夾，具有1.36 Nm的螺絲扭矩和8毫米（5/16英寸）的螺絲刀寬度。其尺寸為5.51 x 4.41 x 5.71英寸，重量為0.3磅。此外，它還支持使用0.33~2.1 mm2
（22~14 AWG）實線或絞合銅線，這些線必須額定為90°C（194°F）或更高，并且絕緣規格最大為1.2 mm（3/64英寸）。
在功能方面，1756-TBNH模塊能夠接收、存儲用戶通過編程器等輸入設備輸入的程序和數據，通過I/O部件接收現場信號的狀態或數據并存入輸入映像寄存器或數據存儲器中，執行用戶程序，完成各種數據的處理、傳輸和
存儲相應的內部控制信號，以完成用戶指令規定的各種操作，并響應各種外圍設備的請求。
總的來說，1756-TBNH是一款功能強大的可拆卸接線端子或RTB模塊，適用于多種工業環境和應用場景。不過，對于具體的應用場景、接線方式、安裝步驟等，建議參考產品手冊或聯系專業的技術支持以獲取更詳細的信息。
同時，在使用任何工業自動化設備時，務必遵循相關的安全操作規程，確保人員和設備的安全。
>>>>型號:1756-TBNH 可拆卸接線端子 用于多種工業環境和應用場景
【英文介紹】
The 1756-TBNH is a detachable terminal or RTB (Remote Terminal Block) module manufactured in the ControlLogix series. It is mainly used to connect 1756 I/O modules and industrial plant wiring, allowing
flexible interconnection of these components.
The 1756-TBNH module has a variety of features, such as it is a 20-bit NEMA screw clamp with 1.36 Nm of screw torque and an 8 mm (5/16 in) screwdriver width. It measures 5.51 x 4.41 x 5.71 inches and weighs
0.3 pounds. In addition, it supports the use of 0.33 to 2.1 mm2 (22 to 14 AWG) solid or stranded copper wires, which must be rated at 90°C (194°F) or higher and have an insulation specification of up to 1.2 mm (3/64 inch).
In terms of functions, the 1756-TBNH module can receive and store the programs and data input by the user through the input device such as the programmer, receive the status or data of the field signal through the
I/O component and store it in the input image register or data memory, execute the user program, complete the processing of various data, transmit and store the corresponding internal control signal. To complete various
operations specified by user instructions, and respond to various peripheral device requests.
Overall, the 1756-TBNH is a powerful detachable terminal or RTB module suitable for a variety of industrial environments and application scenarios. For details about application scenarios, cable connections, and installation
procedures, you are advised to refer to the product documentation or contact technical support engineers. At the same time, when using any industrial automation equipment, it is necessary to follow the relevant safety
operating procedures to ensure the safety of personnel and equipment.
