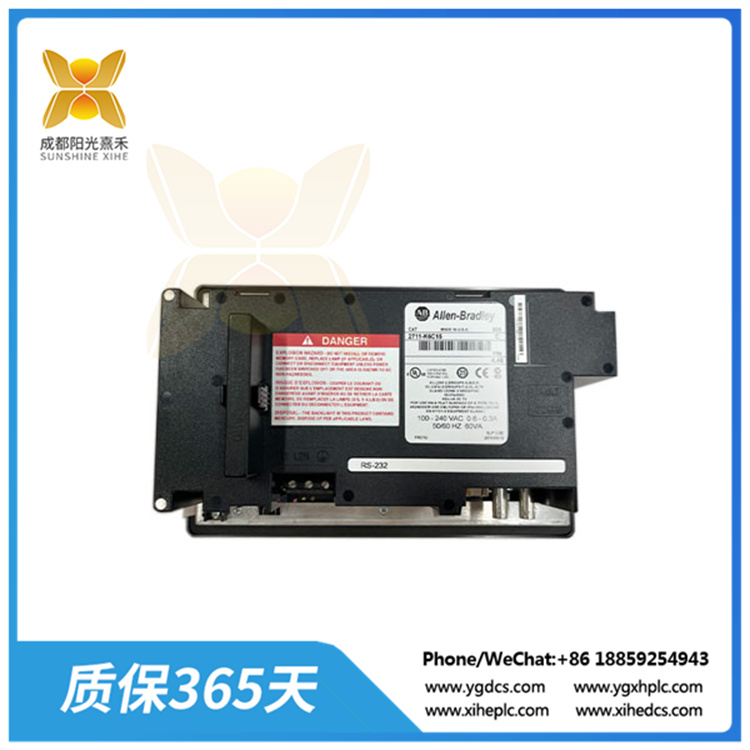

>>>型號:2711-K6C15 觸摸屏 電阻觸摸屏技術 電阻薄膜屏
【功能描述】
2711-K6C15 是PanelView 600觸摸屏。這款觸摸屏采用先進的電阻觸摸屏技術，用戶可以通過觸摸屏幕表面進行控制，實現直觀、高效的操作。
2711-K6C15 該觸摸屏的主要部分是一塊與顯示器表面非常配合的電阻薄膜屏，這是一種多層的復合薄膜，以一層玻璃或硬塑料平板作為基層，表面涂有一層透明氧化金屬（透明的導電電阻）導電層，上面再蓋有一層外表面硬化處理、
光滑防擦的塑料層。這種設計不僅提高了觸摸的靈敏度，也增強了屏幕的耐用性。
2711-K6C15觸摸屏還具有一些其他的重要特性。它采用了將輸入、輸出以及電源三方之間相互電氣隔離的電路結構，不僅具有限能功能，還有隔離功能，同時符合本安型限制能量的要求。此外，它還具有高可靠性、抗干擾能力強、
靈活性高等特點，使其在各種工業自動化應用場景中都能表現出色。
在機械特性方面，2711-K6C15的外形尺寸為132mm105mm52mm，外殼防護等級為IP30，采用波浪紋鋁制加強機殼，安裝方式為35mm DIN導軌安裝，凈重為800g。同時，它能夠在-10~70℃(-40~+85℃寬溫可選)的工作溫度范圍
內正常運行，相對濕度要求為≤90%（無冷凝），存放溫度范圍為-40~80℃。
在功能方面，用戶能夠使用鍵盤控制HMI來輸入信息和數據。此外，該裝置使用85~264伏交流電供電，內部存儲器容量為240KB。如果需要更換背光，可以使用零件號2711-NL3的背光更換部件。其裝運重量和尺寸大約為6磅和14x11x8英寸。
2711-K6C15作為一款操作終端，能夠連接到ControlNet網絡上的一個或多個控制器，支持對控制器數據的定期和不定期訪問，還支持冗余布線。當與ControlLogix系統通信時，ControlNet終端支持符號CIP尋址。每個終端都有一個網絡訪問
端口，用于本地訪問ControlNet網絡。
>>>>型號:2711-K6C15 觸摸屏 電阻觸摸屏技術 電阻薄膜屏
【英文介紹】
The 2711-K6C15 is a PanelView 600 touch screen. This touch screen uses advanced resistive touch screen technology, which allows users to control it by touching the surface of the screen for intuitive and efficient operation.
2711-K6C15 The main part of the touch screen is a resistance film screen very compatible with the display surface, which is a multi-layer composite film, with a layer of glass or hard plastic plate as the base, the surface is
coated with a layer of transparent metal oxide (transparent conductive resistance) conductive layer, and then covered with a layer of external surface hardening treatment, smooth anti-friction plastic layer. This design not only
improves the sensitivity of the touch, but also enhances the durability of the screen.
The 2711-K6C15 touch screen also has some other important features. It adopts the circuit structure of electrical isolation between the input, output and power supply, which not only has the function of energy limiting, but
also the function of isolation, and meets the requirements of intrinsically safe energy limiting. In addition, it also has high reliability, strong anti-interference ability, high flexibility, so that it can perform well in a variety of
industrial automation application scenarios.
In terms of mechanical characteristics, the 2711-K6C15 has an external dimension of 132mm105mm52mm, a housing protection class of IP30, a corrugated aluminum reinforced housing, a 35mm DIN rail mounting method,
and a net weight of 800g. At the same time, it can operate normally in the working temperature range of -10~70℃(-40~+85℃ wide temperature optional), the relative humidity requirement is ≤90% (no condensation), and
the storage temperature range is -40~80℃.
In terms of functionality, users can use the keyboard to control the HMI to enter information and data. In addition, the device uses 85 to 264 volts AC power supply, internal memory capacity of 240KB. If the backlight needs to
be replaced, you can use the backlight replacement part No. 2711-NL3. Its shipping weight and dimensions are approximately 6 pounds and 14x11x8 inches.
As an operating terminal, the 2711-K6C15 is capable of connecting to one or more controllers on the ControlNet network, supports regular and irregular access to controller data, and also supports redundant cabling. ControlNe
t terminals support symbolic CIP addressing when communicating with ControlLogix systems. Each terminal has a network access port for local access to the ControlNet network.
