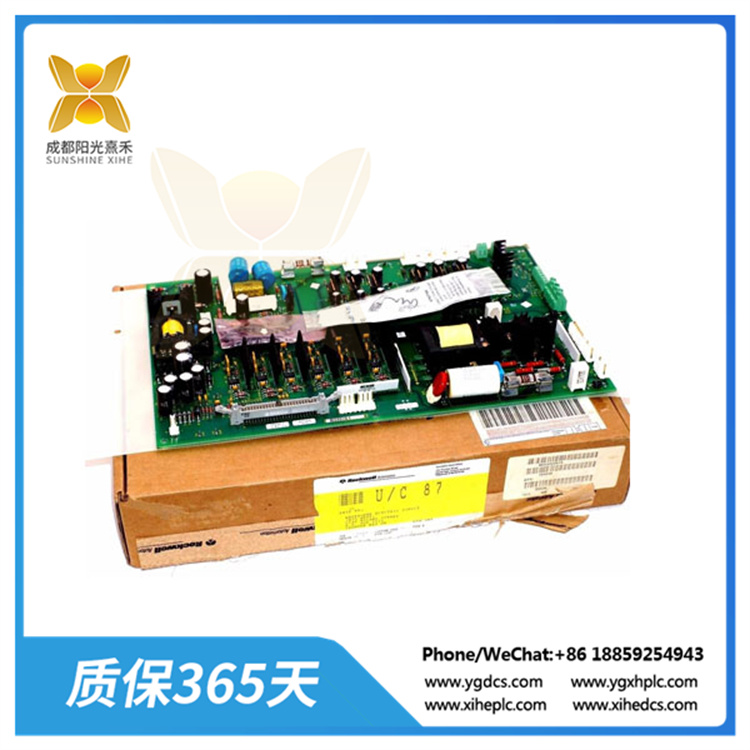

>>>型號:1336-SN-SP10A 逆變器緩沖器 用于自動化系統 兼容1336可調頻交流驅動器
【功能描述】
1336-SN-SP10A是一種逆變器緩沖器，專門用于1336 Plus、Plus II、Impact和Force驅動器，特別兼容1336可調頻交流驅動器。它屬于2級裝配組件，是一種備件項目。每個驅動器使用三個這樣的緩沖器套件。
1336-SN-SP10A這種緩沖器印刷電路板（PCB）主要用于框架E或輸出功率為150、200、250和X300HP的驅動器。在驅動器的內部，緩沖板安裝在驅動器主機架內部，位于轉換器托架中橋式散熱器的一側。
在更換此板時，需要切斷驅動器的電源并鎖定以防止訪問。即使驅動器的電源被移除，也不要立即觸摸組件，因為它有電容器可以短時間儲存電壓。因此，在繼續操作之前，需要測量TB1端子塊上的+DC和-DC，確保安全。同時，
還需要卸下位于81、82和83端子的導線，并相應地標記電線。
1336-SN-SP10A可能還涉及其他應用領域或具有其他功能特性，例如與高速無線PROFIBUS DP通信網關的配合使用，提供高效、強大的空中無線協議，支持多達13個通道和一個有線PROFIBUS主或從接口端口。這些特性使得它
在現場設備的數據傳輸和診斷方面具有較高的效率和可靠性。
>>>>型號:1336-SN-SP10A 逆變器緩沖器 用于自動化系統 兼容1336可調頻交流驅動器
【英文介紹】
The 1336-SN-SP10A is an inverter buffer designed specifically for the 1336 Plus, Plus II, Impact, and Force drives, with special compatibility with Allen-Bradley's 1336 adjustable AC drives. It is a class 2 assembly
component and is a spare parts item. Each drive uses three of these buffer suites.
1336-SN-SP10A This buffer printed circuit board (PCB) is mainly used in frame E or drives with output power of 150, 200, 250 and X300HP. On the inside of the drive, the buffer plate is mounted inside the drive
frame, on the side of the bridge radiator in the converter carriage.
When replacing this board, the power to the drive needs to be cut off and locked to prevent access. Even if the power supply to the drive is removed, do not touch the component immediately because it has capacitors
that can store voltage for a short time. Therefore, before proceeding, it is necessary to measure the +DC and -DC on the TB1 terminal block to ensure safety. At the same time, the wires at terminals 81, 82, and 83 need
to be removed and the wires marked accordingly.
The 1336-SN-SP10A May also be involved in other application areas or have other functional features, such as use in conjunction with a high-speed wireless PROFIBUS DP communication gateway to provide an efficient
and powerful over-the-air wireless protocol supporting up to 13 channels and a wired PROFIBUS master or slave interface port. These characteristics make it highly efficient and reliable in data transmission and diagnosis of field equipment.
