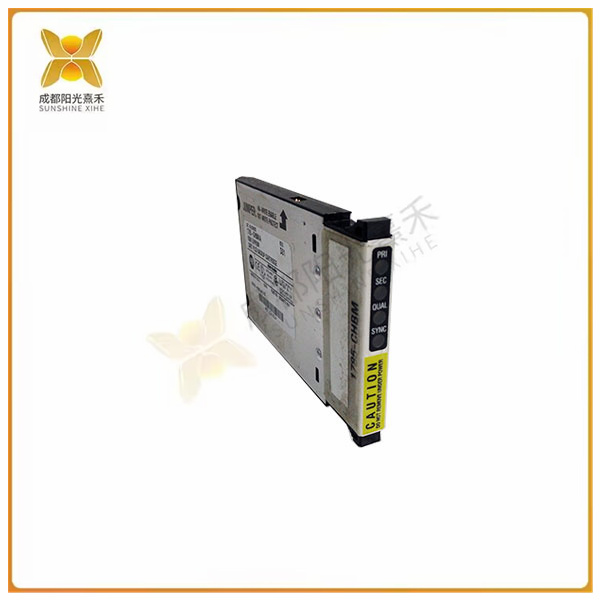

>>>>>型號:1785-CHBM 熱回管模塊 備份模塊
【功能描述】
Allen-Bradley 的 1785-CHBM ControlNet PLC-5 熱回管模塊是安裝在 PLC-5 處理器上的備份模塊，允許啟用 ControlNet 的 PLC-5 控制器在備份模式下運行。1785-CHBM 具有 100K 字的非易失性用戶存儲器容量，通過移除模塊上的跳線，可以將其存儲器授予寫保護。該模塊旨在與 1785-L20C15、-L40C15 或 -L80C5 處理器完全兼容，并符合 CISPR 11：第 1 組 A 類（帶適當?shù)耐鈿ぃ┹椛湟?guī)范。1785-CHBM 的 IEC 額定工作溫度范圍為 0-600 C （32-140 0F），相對濕度為 5-95%，無冷凝，額定儲存溫度范圍為 –40-85 0C （–40-185 0F）。它經過測試和額定，可在 10-500Hz 下承受 2 的運行振動，在不降額的情況下承受 30G 的運行沖擊，并且可以承受 50G 的非運行沖擊。 它重 7.88 克，通過了 UL、CE、C-TICK 和 CSA 認證。
>>>>>型號:1785-CHBM 熱回管模塊 備份模塊
【英文介紹】
Allen-Bradley's 1785-CHBM ControlNet PLC-5 Hot return tube module is a backup module installed on the PLC-5 processor that allows ControlNet-enabled PLC-5 controllers to operate in backup mode. The 1785-CHBM has a non-volatile user memory capacity of 100K words, and by removing the jumper on the module, its memory can be granted write protection. The module is designed to be fully compatible with 1785-L20C15, -L40C15 or -L80C5 processors and complies with CISPR 11: Group 1 Class A (with appropriate housing) radiation specifications. The 1785-CHBM has an IEC rated operating temperature range of 0-600 C (32-140 0F), relative humidity of 5-95%, no condensation, and rated storage temperature range of -40-85 0C (-40-185 0F). It is tested and rated to withstand 2 operating vibrations at 10-500Hz, 30G operating shocks without derating, and 50G non-operating shocks. It weighs 7.88g and is UL, CE, C-TICK and CSA certified.
