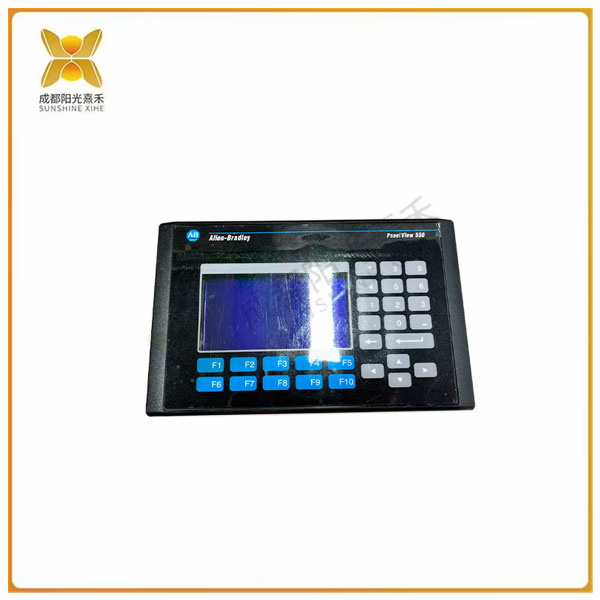

>>>>>型號:2711-K5A2 操作終端 具有集成鍵盤輸入接口
【功能描述】
2711-K5A2 是一款 Allen-Bradley PanelView Standard 操作終端，具有集成鍵盤輸入接口、顯示區域、通信端口和內部存儲器。該電子設備具有緊湊的組件，支持齊平安裝到工業級外殼上。
2711-K5A2 的鍵盤輸入接口由十 （10） 個功能鍵組成，接受本地和全局分配，使任何按鈕都可用于特定功能或接受變量分配。除了功能鍵外，鍵盤組件還設置了一個數字鍵，用于輸入數字變量和常量;導航鍵，用于突出顯示屏幕中顯示的相應對象。
該操作終端還具有 5.5 英寸單色屏幕，顯示區域?yàn)?120 x 60 毫米（4.75 x 2.38 英寸），分辨率為 256 x 128 像素。它配備了一個可更換的內部背光，設計用于運行長達 100,000 小時。
這縮短并最大限度地延長了工程時間，因?yàn)閮?nèi)部測試也可以在不需要物理硬件的情況下完成。
2711-K5A2 具有一個 170KB 的內部隨機存取存儲器 （RAM） 和一個 240KB 的非易失性存儲器，用于保存應用程序和系統文件，例如趨勢、日志和用戶手冊。
2711-K5A2 安裝在 NEMA 或 IP 級外殼上，可提供足夠的防水、灰塵、污垢、腐蝕性和爆炸性物質保護。將 2711-K5A2 安裝在 NEMA 12/13 型、4X（僅限室內使用）、IP54 和 IP65 或任何等效額定外殼中。
2711-K5A2 是一款 Allen-Bradley PanelView 550 終端。這個過時的操作終端允許用戶與其他機器連接。此 PanelView 設備具有 5.5 英寸。單色LCD藍色模式屏幕。它有一個嵌入式 DH-485 通信端口。用戶可以使用位于設備前面板的嵌入式鍵盤來控制設備。
其 DH-485 通信端口可以連接到 SLC 和 MicroLogix 控制器、DH-485 網絡或壁掛式電源。2711-K5A2 端子使用 120 伏交流電源供電。該單元具有 170 KB 的應用程序運行時存儲器和 240 KB 的非易失性存儲器。本機的內部背光更換部件號為 2711-NL1。終端的大約運輸重量和尺寸分別為 6 磅和 14 x 11 x 8 英寸。
>>>>>型號:2711-K5A2 操作終端 具有集成鍵盤輸入接口
【英文介紹】
The 2711-K5A2 is an Allen-Bradley PanelView Standard operating terminal with an integrated keyboard input interface, display area, communication port, and internal memory. The electronics feature compact components that support flush mounting onto an industrial-grade housing.
The 2711-K5A2 keyboard input interface consists of ten (10) function keys that accept local and global assignments, making any button available for a specific function or accepting variable assignments. In addition to function keys, the keyboard component also has a numeric key for entering numeric variables and constants; Navigation key, used to highlight the corresponding object displayed on the screen.
The operating terminal also features a 5.5-inch monochrome screen with a display area of 120 x 60 mm (4.75 x 2.38 inches) and a resolution of 256 x 128 pixels. It comes with a replaceable internal backlight and is designed to operate for up to 100,000 hours.
This shortens and maximizes engineering time, as internal testing can also be done without the need for physical hardware.
The 2711-K5A2 has a 170KB internal random access memory (RAM) and a 240KB non-volatile memory for holding application and system files such as trends, logs, and user manuals.
The 2711-K5A2 is mounted on a NEMA or IP grade housing and provides adequate protection against water, dust, dirt, corrosive and explosive substances. Install the 2711-K5A2 in NEMA Type 12/13, 4X (indoor use only), IP54 and IP65 or any equivalent rated housing.
The 2711-K5A2 is an Allen-Bradley PanelView 550 terminal. This outdated operating terminal allows users to connect to other machines. This PanelView device is 5.5 inches. Monochrome LCD blue mode screen. It has an embedded DH-485 communication port. Users can control the device using an embedded keyboard located on the front panel of the device.
Its DH-485 communication port can be connected to SLC and MicroLogix controllers, DH-485 networks, or wall-mounted power supplies. The 2711-K5A2 terminal uses a 120 volt AC power supply. The unit has 170 KB of application runtime memory and 240 KB of non-volatile memory. The internal backlight replacement part number of this unit is 2711-NL1. The approximate shipping weight and dimensions of the terminal are 6 pounds and 14 x 11 x 8 inches, respectively.
