>>>>>型號:2711P-T10C4A9 終端具有擴展功能和文件查看器 監視其他機器
【功能描述】

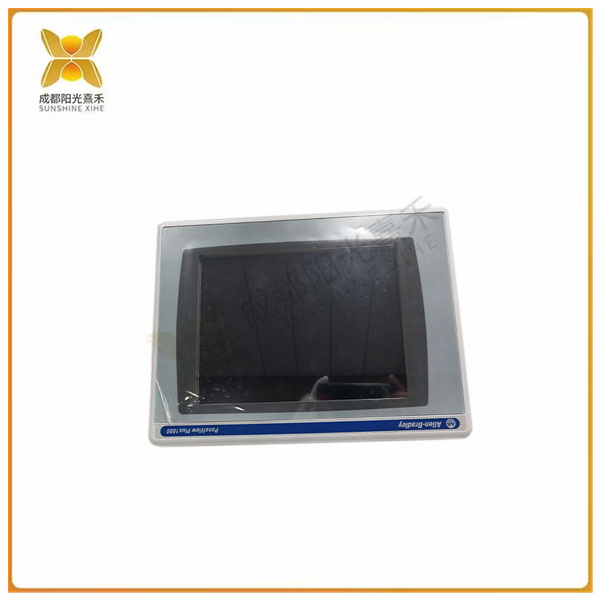

Allen-Bradley 2711P-T10C4A9 PanelView Plus 6 終端具有擴展功能和文件查看器。它可以以圖形方式顯示應用程序狀態信息，允許操作員控制和監視其他機器。2711P-T10C4A9具有靈活的配置過程，具有獨立的顯示模塊和邏輯模塊以及可選的通信模塊。用戶可以通過觸摸屏輸入信息和數據來控制操作界面。2711P-T10C4A9 配備 10.4 英寸彩色顯示屏，輸入選項采用電阻式觸摸屏。觸摸屏分辨率為 640 x 480，具有 18 位彩色圖形。它具有 512 MB 的 RAM 和 512 MB 的非易失性存儲器，用于用戶存儲。它重 8 磅，尺寸為 16 x 14 x 8 英寸。其輸入電壓為 100 至 240 伏交流電，頻率為 50 至 60 赫茲，最大功耗為 160 伏。對于通信，它有一個以太網端口、一個 RS-232 端口和 2 個 USB 端口。2711P-T10C4A9 還可以支持可選的 DH-485、DH+、ControlNet 和以太網模塊。它配備了一個電池供電的實時時鐘，并支持用于外部存儲的 SD 卡。
2711P-T10C4A9 在處理器速度、內存、照明和連接性方面比以前的 PanelView 終端有了顯著改進。以太網端口使用網絡和標準以太網連接連接到 EtherNet/IP 網絡上的控制器。此端口可以處理應用程序傳輸和打印。EtherNet/IP 屏幕允許用戶修改 PanelView 終端的某些 EtherNet/IP 通信設置。如果需要另一個以太網端口，2711P-RN20 以太網通信模塊可用于 700 至 1500 終端。該模塊具有自己唯一的 IP 地址。此端口具有用于網絡通信的 RJ45、10/100Base-T 連接器，并支持 MDI/MDI-X 連接。
這是一項實用功能，允許設備顯示各種文檔，例如手冊、報告、配方、圖表，以幫助系統正常運行。這些功能已添加到基本功能中，例如文件傳輸協議 （FTP）<VNC 客戶端和服務器連接、PDF 文件查看器和 Active X 控件。該操作終端也可以配置為開放式或封閉式系統配置。
>>>>>型號:2711P-T10C4A9 終端具有擴展功能和文件查看器 監視其他機器
【英文介紹】
Allen-Bradley 2711P-T10C4A9 PanelView Plus 6 terminal with extension function and file viewer. It can graphically display application status information, allowing operators to control and monitor other machines. The 2711P-T10C4A9 has a flexible configuration process with separate display and logic modules as well as an optional communication module. The user can enter information and data through the touch screen to control the operation interface. The 2711P-T10C4A9 features a 10.4-inch color display with resistive touch screen input options. The touchscreen has a resolution of 640 x 480 and features 18-bit color graphics. It has 512 MB of RAM and 512 MB of non-volatile memory for user storage. It weighs 8 pounds and measures 16 x 14 x 8 inches. Its input voltage is 100 to 240 volts AC, the frequency is 50 to 60 Hertz, and the maximum power consumption is 160 volts. For communication, it has one Ethernet port, one RS-232 port, and two USB ports. The 2711P-T10C4A9 also supports optional DH-485, DH+, ControlNet, and Ethernet modules. It comes with a battery-powered real-time clock and supports SD cards for external storage.
The 2711P-T10C4A9 is a significant improvement over previous PanelView terminals in terms of processor speed, memory, lighting, and connectivity. EtherNet ports connect to controllers on EtherNet/IP networks using network and standard Ethernet connections. This port can handle application transfer and printing. The EtherNet/IP screen allows users to modify certain EtherNet/IP communication Settings for PanelView terminals. If another Ethernet port is required, the 2711P-RN20 Ethernet communication module is available for 700 to 1500 terminals. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connectivity.
This is a utility feature that allows the device to display various documents, such as manuals, reports, recipes, diagrams, to help the system function properly. These features have been added to basic features such as File Transfer Protocol (FTP) <VNC client and server connections, PDF file viewer, and Active X controls. The operating terminal can also be configured as an open or closed system configuration.
