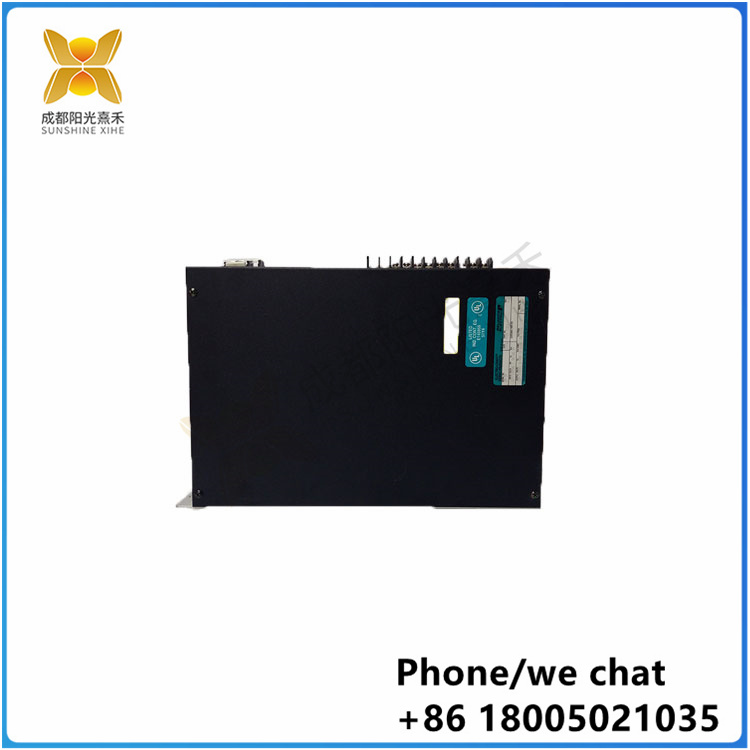

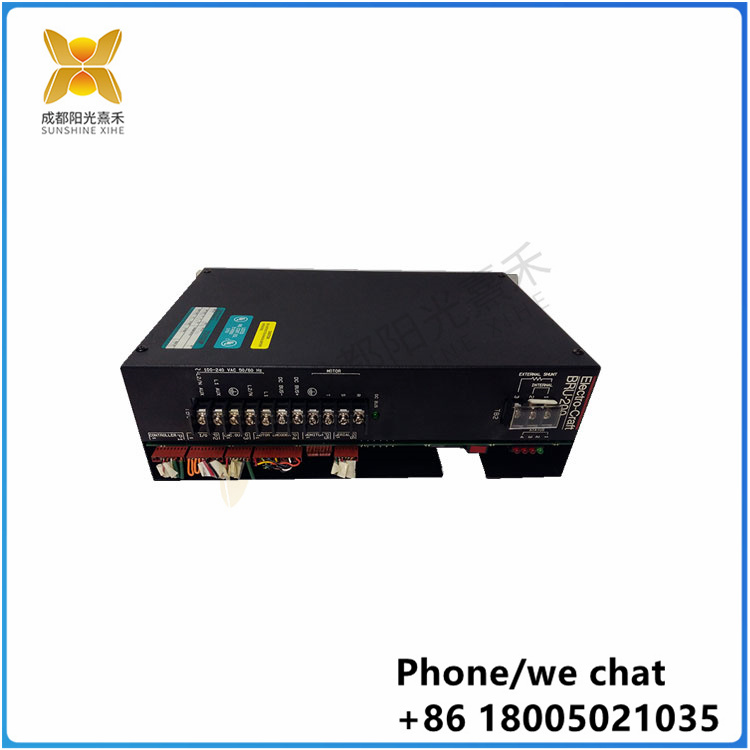

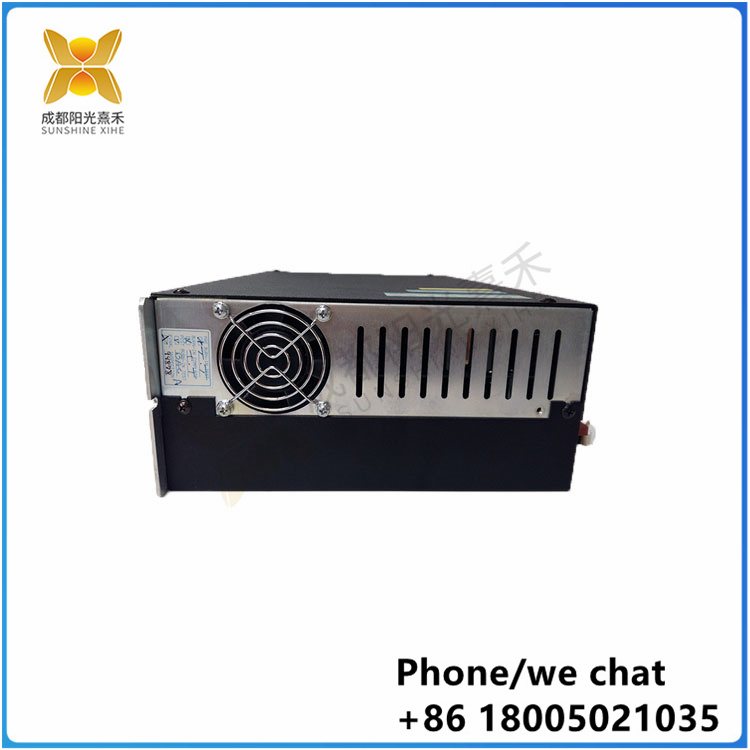

DMC2 50412P-CAN |T8110B型|驅動器|
DMC2 50412P-CAN 工作原理
伺服驅動器的工作原理主要包括信號處理、PID調節、電流控制和驅動輸出等幾個部分：
信號處理：伺服驅動器首先對接收到的上位機指令進行信號處理，包括解碼、濾波、采樣等操作，將上位機指令轉換為適合伺服電機控制的信號。
PID調節：根據信號處理后的信號，通過PID（比例-積分-微分）調節器對伺服電機的控制參數進行調整。PID調節器根據誤差信號的大小和變化趨勢，計算出相應的控制量，從而實現對伺服電機的精確控制。
電流控制：根據PID調節器的輸出，通過電流控制器對伺服電機的電流進行控制。電流控制器調整伺服電機的電流大小和方向，確保電機按照預定方式運行。
驅動輸出：將電流控制器的輸出信號轉換為驅動信號，通過驅動電路驅動伺服電機工作。驅動電路包括功率放大器、脈沖生成器等部件，可以實現對伺服電機的高效驅動。
DMC2 50412P-CAN 基本要求
伺服驅動器在設計和應用過程中需要滿足以下基本要求：
調速范圍寬：從最低速到最高速電機都能平穩運轉，轉矩波動要小。
定位精度高：能夠?qū)崿F(xiàn)對伺服電機的高精度位置控制。
有足夠的傳動剛性和高的速度穩定性：確保電機在高速運轉時仍能保持穩定的性能。
快速響應：能夠快速響應上位機的指令信號，實現無超調的精確控制。
Working principle of DMC2 50412P-CAN
The working principle of servo driver mainly includes signal processing, PID regulation, current control and drive output:
Signal processing: The servo driver first conducts signal processing on the received instructions of the upper computer, including decoding, filtering, sampling and other operations, and converts the instructions of the upper computer into signals suitable for the control of the servo motor.
PID adjustment: According to the signal after signal processing, the control parameters of the servo motor are adjusted through the PID (proportional-integral-differential) regulator. The PID controller calculates the corresponding control amount according to the size and change trend of the error signal, so as to realize the precise control of the servo motor.
Current control: According to the output of the PID regulator, the current of the servo motor is controlled by the current controller. The current controller adjusts the current size and direction of the servo motor to ensure that the motor operates in a predetermined manner.
Drive output: The output signal of the current controller is converted into a drive signal, and the servo motor is driven by the drive circuit. The drive circuit includes power amplifier, pulse generator and other components, which can realize the efficient drive of servo motor.
DMC2 50412P-CAN Basic requirements
Servo drivers need to meet the following basic requirements in the design and application process:
Wide speed range: from the lowest speed to the highest speed motor can run smoothly, torque fluctuation is small.
High positioning accuracy: It can realize high-precision position control of servo motor.
Sufficient drive rigidity and high speed stability: ensure that the motor can maintain stable performance at high speed.
Fast response: It can quickly respond to the command signal of the host computer to achieve accurate control without overshoot.
