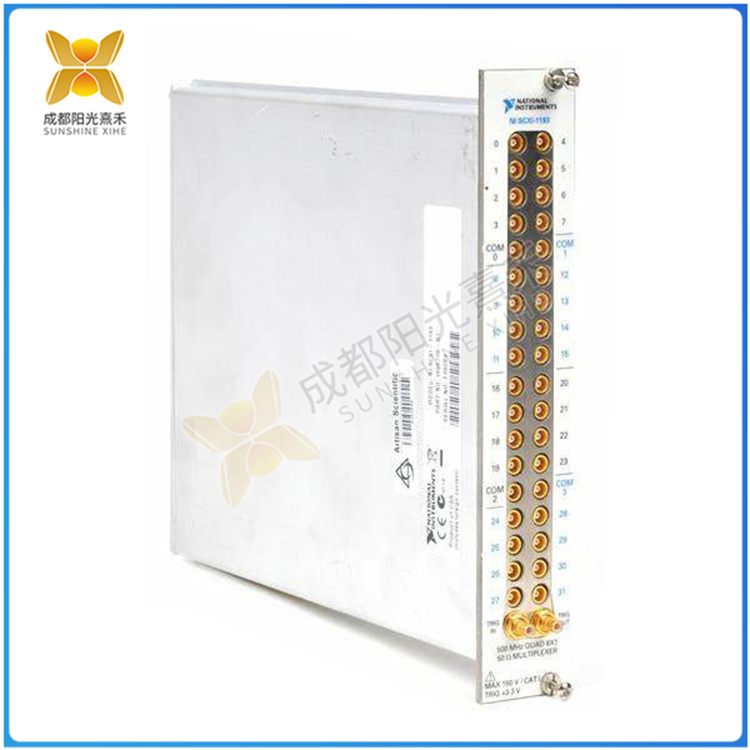

>>>>>型號:SCXI-1193 多路復用器開關模塊

【功能描述】

SCXI-1193 是一個高密度射頻多路復用器開關模塊。

SCXI-1193的具體特點和功能如下：

高密度32通道RF多路復用器：該模塊具有32個通道，可配置為未端接多路復用器、外部端接多路復用器或維度通用的稀疏矩陣。

廣泛的信號頻率范圍：每種配置都能承受從DC到500 MHz以上的信號頻率。

靈活的布線方式：該模塊有一個插槽，并利用高密度推進式MCX連接器進行離散但易于管理的布線。

多種拓?fù)浣Y(jié)構：可實現四路8 x 1多路復用器、四路4 x 1端接多路復用器、雙路16 x 1多路復用器、雙路8 x 1端接多路復用器、

32 x 1多路復用器、16 x 1端接多路復用器和獨立模塊等多種拓?fù)浣Y(jié)構。

多種電纜選擇：該射頻多路復用器開關模塊可用于多種不同的電纜，包括MCX-MCX電纜、MCX-BNC電纜、MCX-SMB電纜或MCX-SMA電纜。

電氣特性：模塊的DC功率要求為50毫安時為+5伏直流電，170毫安時為+18.5伏至+25伏直流電，170毫安時為-18.5伏至-25伏直流電。

最大掃描速率為每秒100次操作。

物理特性：該模塊重2盎司，尺寸為1.2 x 6.8 x 7.8英寸。推薦的工作溫度范圍為0°C至50°C，儲存溫度范圍為-20°C至70°C，非冷凝濕度范圍為5%至85%。

>>>>>型號:SCXI-1193 多路復用器開關模塊

【英文介紹】

SCXI-1193 is a high density RF multiplexer switch module.

Specific features and functions of SCXI-1193 are as follows:

High-density 32-channel RF multiplexer: This module has 32 channels and can be configured as an unterminated

multiplexer, an externally terminated multiplexer, or a sparse matrix with dimensionally generic dimensions.

Wide range of signal frequencies: Each configuration can withstand signal frequencies from DC to more than 500 MHz.

Flexible wiring: The module has a slot and makes use of high-density propulsive MCX connectors for discrete but

manageable wiring.

Multiple topologies: It can realize a variety of topologies such as four-way 8 x 1 multiplexer, four-way 4 x 1 end

multiplexer, dual-way 16 x 1 multiplexer, dual-way 8 x 1 end multiplexer, 32 x 1 multiplexer, 16 x 1 end multiplexer

and independent modules.

Multiple cable options: The RF multiplexer switch module can be used with a variety of different cables, including

MCX-MCX cables, MCX-BNC cables, MCX-SMB cables or MCX-SMA cables.

Electrical characteristics: The module's DC power requirements are 50 mah +5 volts DC, 170 mah +18.5 volts DC

to +25 volts DC, and 170 mah -18.5 volts DC to -25 volts DC. The maximum scan rate is 100 operations per second.

Physical characteristics: The module weighs 2 ounces and measures 1.2 x 6.8 x 7.8 inches. The recommended

operating temperature range is 0°C to 50°C, the storage temperature range is -20°C to 70°C, and the non-condensing

humidity range is 5% to 85%.
