PXI-8431/8 | PXI串行儀器控制模塊 | 實現自動化和智能化

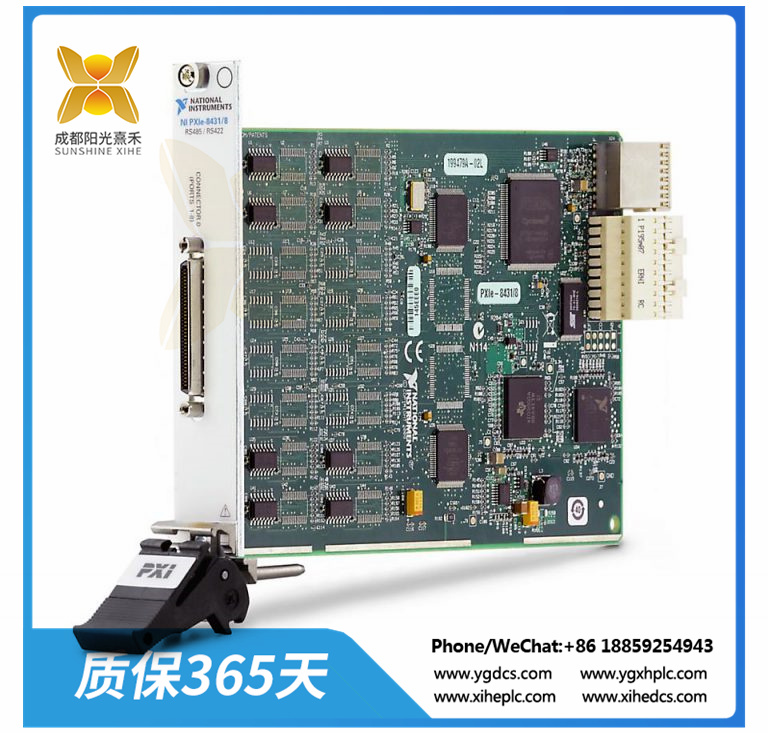

PXI-8431/8
PXI串行儀器控制模塊
8端口，RS485/RS422 PXI串行接口模塊—PXI?8431/8是一款用于與RS485和RS422設備進行高速通信的高性能接口， 它具有高性能DMA傳輸、多線程和多處理器支持。 用戶可選擇4線或2線收發器模式來實現全雙工或半雙工通信。 NI串行接口也可作為標準COM端口，以便兼容使用串行通信的程序。
特點：
靈活性：PXI-8431/8用戶可以根據需要選擇適當?shù)拇袇f(xié)議和通道數量。
兼容性：NI串行接口兼容標準COM端口，方便與現有程序集成。
隔離功能：部分型號提供隔離功能，提高系統的穩定性和安全性。
應用場景：
電子測試：PXI-8431/8用于測試和驗證電子產品中的串行通信接口。
數據采集：通過串行接口采集外部設備的數據。
控制系統：PXI-8431/8與外部設備進行通信和控制，實現自動化和智能化。
使用注意事項：
在使用前，請確保已正確安裝和配置PXI機箱、控制器和串行儀器控制模塊。
根據所使用的串行協議和通道數量，選擇適當?shù)臏y(cè)試程序或編寫自定義測試程序。
在進行高速數據傳輸時，請注意數據完整性和穩定性問題。
PXI-8431/8
PXI serial instrument control module
8-port, RS485/RS422 PXI Serial Interface module - PXI?8431/8 is a high-performance interface for high-speed communication with RS485 and RS422 devices with high-performance DMA transport, multithreading and multiprocessor support. Users can choose between 4-wire or 2-wire transceiver modes for full duplex or half-duplex communication. The NI serial interface can also be used as a standard COM port for compatibility with programs that use serial communication.
Features:
Flexibility: PXI-8431/8 users can choose the appropriate number of serial protocols and channels according to their needs.
Compatibility: NI serial interface is compatible with standard COM ports for easy integration with existing programs.
Isolation function: Some models provide isolation function to improve system stability and security.
Application scenario:
Electronic testing: The PXI-8431/8 is used to test and verify serial communication interfaces in electronic products.
Data acquisition: Acquisition of external device data through serial interface.
Control system: PXI-8431/8 communicates and controls with external devices to achieve automation and intelligence.
Precautions for use:
Before use, ensure that the PXI chassis, controller, and serial instrument control module are properly installed and configured.
Depending on the serial protocol and number of channels used, choose the appropriate test program or write a custom test program.
When performing high-speed data transfers, be aware of data integrity and stability issues.
