PCI-MIO-16E-4 數據采集設備 具有 3 個 DMA 通道
配置： ? PCI 卡電壓：僅
5 V 部件號：
184002B-01、184002C-01、184002E-01、184002F-01、184002G-01
PCI-MIO-16E-4是NI公司的一款數據采集設備，通過USB或以太網連接PC或筆記本電腦，具有16路模擬輸入、4路模擬輸出、16路數字輸入、16路數字輸出。

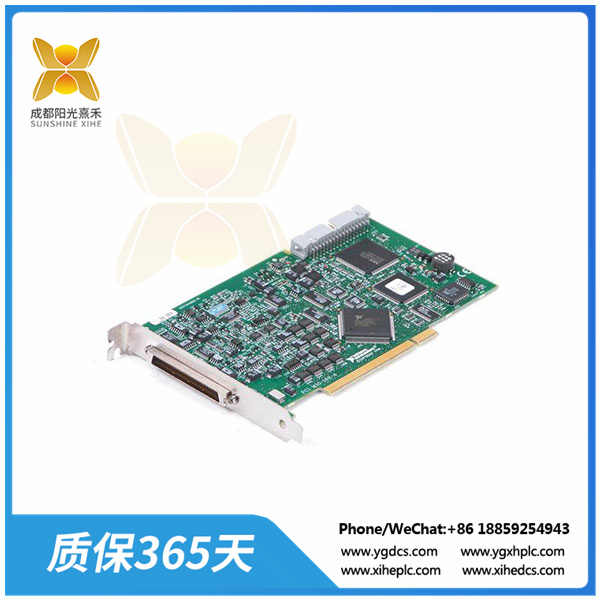

National Instruments PCI-MIO-16E-4(部件號：PCI-6040E和777383-01)是一款多功能、即插即用、PCI控制和供電的數據采集設備。該器件在多通道模式下運行時可采集 250 kS/s，在單通道掃描模式下運行時可采集 500 kS/s。PCI-MIO-16E-4 具有 16 個差分或 8 個單端模擬輸入通道，分辨率為 12 位，以及 8 條 5 V TTL/CMOS 數字 I/O 線。此外，還提供 2 個 12 位分辨率的模擬輸出通道，采樣率為 512 個 Samples/s，輸出范圍為 ±10 V。它有 3 個 DMA 通道(分散-聚集模式)。
這種多功能I/O設備傾向于與各種NI設備無縫同步運行。對于定時相關功能和同步，它配備了 2 個定時 I/O 通道，分辨率為 24 位，頻率為 20 MHz。它具有 600 kHz 的小輸入信號帶寬和 350 kHz 的大輸入信號帶寬。此外， NI PCI-MIO-16E-4 可 處理 外部 生成 的 定 時 信號。該器件中的模擬輸出可用于生成頻率為每秒 1 MS 的波形。兩個內部計數器帶有兩個輸入(柵極和源極)、兩個軟件寄存器和一個輸出，用于不同的應用。該設備配有一個 68 針公 0.050 D 型連接器。
Configuration: ? PCI card voltage: Only
5 V Part Number:
184002B-01, 184002C-01, 184002E-01, 184002F-01, 184002G-01
The PCI-MIO-16E-4 is a data acquisition device from NI that connects to a PC or laptop via USB or Ethernet and has 16 analog inputs, 4 analog outputs, 16 digital inputs, and 16 digital outputs.
National Instruments PCI-MIO-16E-4 (Part numbers: PCI-6040E and 777383-01) is a versatile, plug-and-play, PCI-controlled and powered data acquisition device. The device can capture 250 kS/s when running in multi-channel mode and 500 kS/s when running in single-channel scan mode. The PCI-MIO-16E-4 has 16 differential or eight single-ended analog input channels with a resolution of 12 bits, and eight 5 V TTL/CMOS digital I/O lines. In addition, two 12-bit resolution analog output channels are available with a sampling rate of 512 Samples/s and an output range of ±10 V. It has 3 DMA channels (dispersion-aggregation mode).
This versatile I/O device tends to operate seamlessly in sync with various NI devices. For timing related functions and synchronization, it is equipped with 2 timing I/O channels with 24-bit resolution and 20 MHz frequency. It has a small input signal bandwidth of 600 kHz and a large input signal bandwidth of 350 kHz. In addition, the NI PCI-MIO-16E-4 can handle externally generated timed signals. The analog output in this device can be used to generate waveforms with frequencies of 1 MS per second. Two internal counters with two inputs (gate and source), two software registers, and one output for different applications. The device is equipped with a 68-pin male 0.050D connector.
