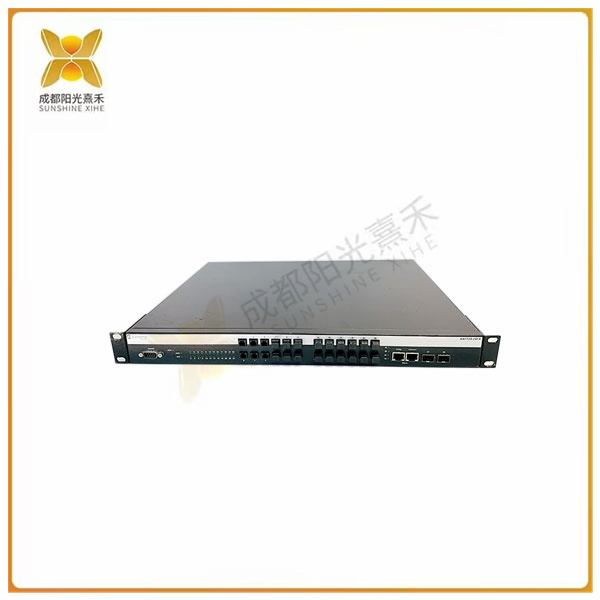

>>>>>型號:A4H124-4FX-P0973JN 光纖管理交換機
【功能描述】
A4系列24端口光纖管理交換機，部件號:P0973JN (A4H124-24FX)
主要規格產品說明Invensys P0973JN -交換機- 24端口-管理-桌面設備類型交換機- 24端口-受管-可堆疊外殼類型桌面港口24個100Base-FX + 2個千兆SFP表演吞吐量:9.5 Mpps交換容量:12.8 Gbps容量虛擬接口(VLAN):4096MAC地址表大小16K條目巨型框架支架9216遠程管理協議SNMP 2、SNMP、RMON、Telnet、HTTP、TFTP、SSH特征流量控制、BOOTP支持、IGMP監聽、系統日志支持、端口鏡像、DiffServ支持、半雙工模式、全雙工模式、生成樹協議(STP)支持、快速生成樹協議(RSTP)支持、服務質量(QoS)、RADIUS支持、鏈路聚合控制協議(LACP)符合標準IEEE 802.3u、IEEE 802.3i、IEEE 802.3z、IEEE 802.1D、IEEE 802.1Q、IEEE 802.1p、IEEE 802.3x、IEEE 802.3ad (LACP)、IEEE 802.1w、IEEE 802.1x、IEEE 802.3ac、IEEE 802.1s、IEEE 802.1ad、IEEE 802.1t、IEEE 802.1力量交流120/230伏(50 – 60赫茲)尺寸(寬高比)17.4英寸x 14.5英寸x 1.7英寸重量10.8磅
>>>>>型號:A4H124-4FX-P0973JN 光纖管理交換機
【英文介紹】
A4 Series 24-port Fibre Channel management switch, Part number :P0973JN (A4H124-24FX)
Invensys P0973JN - Switch - 24 ports - Management - Desktop Device Type Switch - 24 ports - Managed - Stackable Housing Type Desktop Port 24 100Base-FX + 2 Gigabit SFP Performance Throughput :9.5 Mpps Switching capacity :12.8 Gbps Capacity Virtual Interface (VLAN):4096MAC Address Table Size 16K entry Mega frame bracket 9216 Remote Management Protocol SNMP 2, SNMP, RMON, Telnet, HTTP, TFTP, SSH feature traffic control, BOOTP support, IGMP monitoring, system log support, port mirroring, DiffServ support, half duplex mode, full duplex mode, spanning tree protocol (STP) support, Fast Spanning Tree protocol (RSTP) support, service Quality (QoS), RADIUS support, Link Aggregation Control Protocol (LACP) comply with the standards IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1 Power AC 120/230 volts (50-60 Hz) Dimensions (aspect ratio)17.4 inches x 14.5 inches x 1.7 inches Weight 10.8 pounds
>>>>>型號:A4H124-4FX-P0973JN 光纖管理交換機
