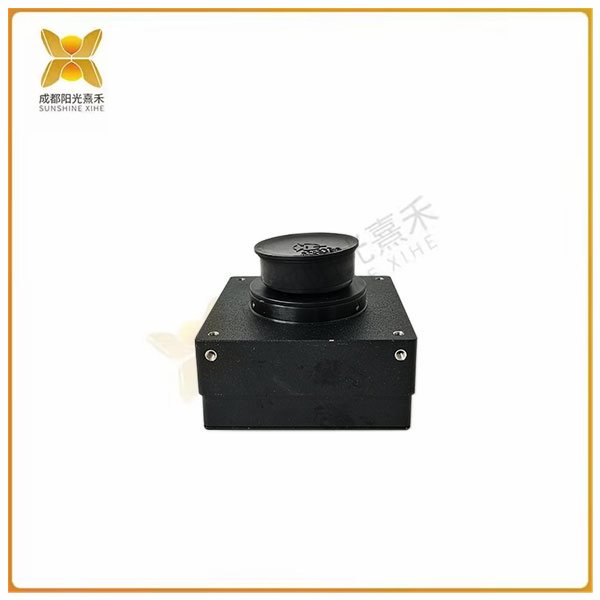

>>>>>型號:A404K 高性能滿足攝像機 圖像質量
【功能描述】
A400系列的目標是提供一個高性能滿足攝像機中最嚴格的要求分辨率、速度和圖像質量。這個目標實現了通過使用一個先進的四百萬像素傳感器和一個獨特的相機后端，一個組合，提供了輝煌的圖像質量和快速預處理的可能性。確保可靠、一致質量，A400變種是100%質量檢查和校準。所有的這使得A400相機非常靈活和可靠的工具許多應用程序。
所有A400相機都包含一個高質量的CMOS傳感器2352X 1726活動像素。而最常見的CCD的速度傳感器限制為15 fps, A400變體提供了更好的最大幀率:
?A402k/kc – 24 fps全分辨率
?A403k/kc -全分辨率48幀/秒
?A404k/kc – 96 fps全分辨率
?A405k/kc – 167fps在2320 x 1726
?A406k/kc – 209fps在2320 x 1726
A400系列以卓越的性能樹立了新的標準以及與CCD相機相媲美的圖像質量。非凡的圖像質量來自先進的CMOS傳感器的使用以及精密的電子設計。三個不同的圖像增強功能可以進一步提高圖像質量:
?柱陰影校正，消除固定模式噪音
?DSNU陰影校正，消除暗信號不均勻性
?PRNU陰影校正消除照片響應
不均勻性沒有開花或污跡是另一個優點在帶有CCD傳感器的相機上。代碼缺失不是問題
A400和圖像在這方面非常相似。的A400攝像機中使用的快速FPGA使板載選項成為可能預處理和允許實現個別算法適應客戶需求
>>>>>型號:A404K 高性能滿足攝像機 圖像質量
【英文介紹】
The A400 series aims to deliver a high performance camera that meets the most stringent requirements for resolution, speed and image quality. This goal was achieved by using an advanced four-megapixel sensor and a unique camera backend, a combination that offers brilliant image quality and the possibility of fast preprocessing. To ensure reliable, consistent quality, the A400 variant is 100% quality checked and calibrated. All of this makes the A400 camera a very flexible and reliable tool for many applications.
All A400 cameras include a high quality CMOS sensor with 2352X 1726 active pixels. While the speed sensor of the most common CCDS is limited to 15 fps, the A400 variant offers a better maximum frame rate:
?A402k/kc - 24 fps full resolution
A403k/kc - full resolution 48 frames per second
?A404k/kc - 96 fps full resolution
A405k/kc - 167fps at 2320 x 1726
A406k/kc - 209fps at 2320 x 1726
The A400 series sets new standards with outstanding performance and image quality comparable to CCD cameras. The extraordinary image quality comes from the use of advanced CMOS sensors as well as sophisticated electronic design. Three different image enhancement features can further improve image quality:
? Column shadow correction to eliminate fixed mode noise
?DSNU shadow correction to eliminate dark signal unevenness
?PRNU shadow correction eliminates photo response
Non-uniformity without flowering or smudging is another advantage on cameras with CCD sensors. Missing code is not a problem
The A400 and the image are very similar in this respect. The fast FPGA used in the A400 camera makes it possible for on-board options to be pre-processed and allows the implementation of individual algorithms adapted to customer needs
