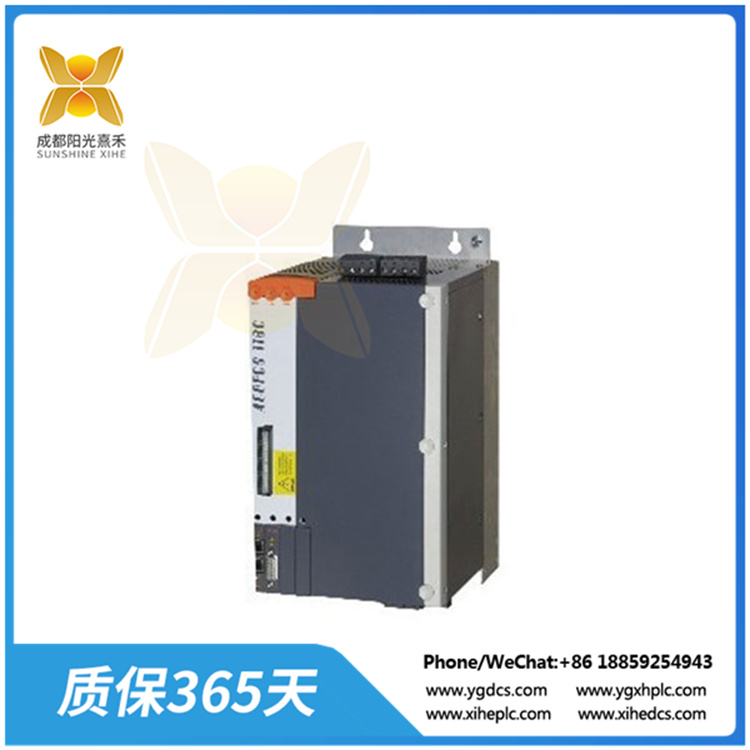

>>>>型號:8V1180.00-2 ACOPOS 伺服驅動器

【功能描述】

8V1180.00-2 ACOPOS是一款伺服驅動器，作為ACOPOS智能伺服驅動器的一部分，該伺服驅動器具有高性能和優越的特性。

8V1180.00-2 ACOPOS其主要特性和參數如下：

輸入電壓與頻率：8V1180.00-2的主輸入電壓為400 VAC~480 VAC，頻率為50/60 Hz。

負載能力：該伺服驅動器具有最大17 kVA的安裝負載。

標稱輸入電壓：其標稱輸入電壓為24 VDC。

保護功能：這款伺服驅動器配備了過載和接地故障保護，有助于確保在異常情況下設備的安全運行。

精度與速度：ACOPOS伺服驅動器的控制循環僅50μs，運行時掃描時間非常短且通信循環周期僅400μs，這保證了其在應用中的快速響應和精確控制。

此外，ACOPOS伺服驅動器系列特別適用于對材質的受力有嚴格要求的纏繞和放卷裝置，如饒線裝置或拉光纖設備。在這些應用中，轉矩的設定可以根據纏繞的半徑的變化隨時更改，

確保材質的受力不會隨著纏繞半徑的變化而改變。

總的來說，8V1180.00-2 ACOPOS伺服驅動器是一款功能強大、性能卓越的伺服驅動器，能夠滿足復雜和高動態特性的運動控制需求。

>>>>>型號:8V1180.00-2 ACOPOS 伺服驅動器

【英文介紹】

The 8V1180-00-2 ACOPOS is a servo drive that is part of the ACOPOS Intelligent servo drive with high performance and superior characteristics.

8V1180-00-2 ACOPOS Main features and parameters are as follows:

Input voltage and frequency: The main input voltage of 8V1180.00-2 is 400 VAC~480 VAC, and the frequency is 50/60 Hz.

Load capacity: The servo drive has a maximum mounting load of 17 kVA.

Nominal input voltage: Its nominal input voltage is 24 VDC.

Protection: This servo drive is equipped with overload and ground fault protection to help ensure the safe operation of the equipment in abnormal conditions.

Accuracy and speed: The control cycle of the ACOPOS servo drive is only 50μs, the runtime scan time is very short and the communication cycle is only 400μs, which guarantees fast response

 and precise control in the application.

In addition, the ACOPOS servo drive series is particularly suitable for winding and unwinding devices that have strict requirements on the force of the material, such as wire harvesting devices

 or fiber pulling devices. In these applications, the torque setting can be changed at any time according to the change of the winding radius, ensuring that the force of the material does not

change with the change of the winding radius.

Overall, the 8V1180.00-2 ACOPOS servo drive is a powerful, high-performance servo drive that can meet the motion control needs of complex and highly dynamic characteristics.
