SST-PB3-SLC | IC200GBI001 | 掃描相互獨立|
一、產品概述

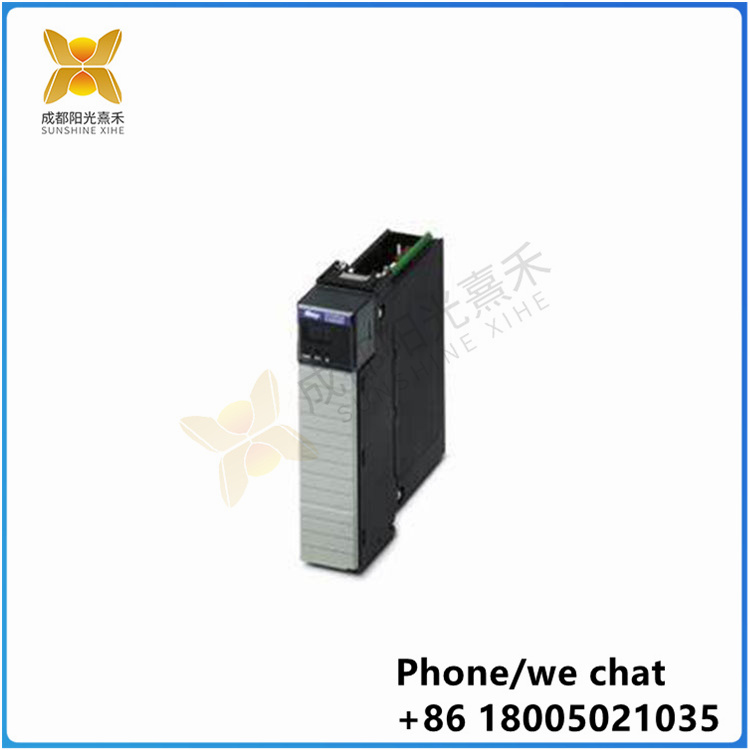

品牌與型號：SST-PB3-SLC，由Allen-Bradley（羅克韋爾）生產。
功能：將羅克韋爾SLC 500 PLC連接為主站或從站，以掃描或模擬PROFIBUS DP I/O。
應用場景：廣泛用于工業自動化領域，特別是需要PROFIBUS通信的場合。
二、主要功能與特點
通信能力：
支持將SLC 500 PLC連接到PROFIBUS網絡，實現與其他PROFIBUS設備的通信。
可作為PROFIBUS網絡的主站或從站，支持掃描和模擬PROFIBUS DP I/O。
數據空間：
提供用戶定義的2064字節輸入和2064字節輸出的數據空間，滿足各種通信需求。
配置與升級：
掃描儀上的9針串行端口可用于現場固件升級和I/O配置上傳，方便用戶進行設備維護和配置調整。
獨立掃描：
SLC處理器邏輯掃描和PROFIBUS I/O掃描相互獨立，確保系統運行的穩定性和可靠性。
診斷與維護：
從站狀態、所有從站的診斷狀態信息、網絡診斷計數器和DP主站診斷計數器均由掃描儀維護，便于用戶進行故障診斷和排除。
兼容性：
100%向后兼容上一代產品（SST-PFB-SLC），方便用戶進行產品升級和替換。
配置軟件支持：
支持從SST DP配置軟件和西門子COM PROFIBUS導出配置文件，簡化配置過程。
注意事項
在購買和使用SST-PB3-SLC時，請務必選擇正規渠道和合格產品，以確保設備的質量和性能。
在安裝和配置過程中，請遵循產品說明書和安全規范進行操作，以確保系統的正常運行和人員安全。
定期對設備進行維護和檢查，及時發現并處理潛在問題，確保設備的長期穩定運行。
總的來說，SST-PB3-SLC是一款功能強大、性能穩定的PLC通信模塊，能夠滿足工業自動化領域?qū)ROFIBUS通信的需求。
I. Product overview
Make and Model: SST-PB3-SLC, manufactured by Allen-Bradley (Rockwell).
Function: Connect a Rockwell SLC 500 PLC to a master or slave station to scan or simulate PROFIBUS DP I/O.
Application scenario: Widely used in the field of industrial automation, especially in the case of PROFIBUS communication.
2. Main functions and characteristics
Communication capability:
The SLC 500 PLC can be connected to the PROFIBUS network to communicate with other PROFIBUS devices.
It can be used as the master or slave station of the PROFIBUS network, supporting scanning and simulating PROFIBUS DP I/O.
Data space:
Provides user-defined data space of 2064 bytes of input and 2064 bytes of output to meet various communication needs.
Configuration and upgrade:
The 9-pin serial port on the scanner can be used for on-site firmware upgrades and I/O configuration uploaders, facilitating device maintenance and configuration adjustments.
Independent scan:
SLC processor logic scanning and PROFIBUS I/O scanning are independent of each other to ensure the stability and reliability of system operation.
Diagnosis and maintenance:
Slave station status, all slave station diagnostic status information, network diagnostic counters, and DP master station diagnostic counters are maintained by the scanner for easy user diagnosis and troubleshooting.
Compatibility:
100% backward compatible with previous generation products (SST-PFB-SLC), making it easy for users to upgrade and replace products.
Configuration software support:
Export configuration files from SST DP configuration software and Siemens COM PROFIBUS to simplify the configuration process.
Matters needing attention
When purchasing and using SST-PB3-SLC, be sure to choose regular channels and qualified products to ensure the quality and performance of the equipment.
During installation and configuration, follow the product instructions and safety specifications to ensure the normal operation of the system and the safety of personnel.
Periodically maintain and check the device to discover and handle potential problems in a timely manner to ensure long-term stable operation of the device.
Overall, the SST-PB3-SLC is a powerful and stable PLC communication module that can meet the needs of PROFIBUS communication in the field of industrial automation.
