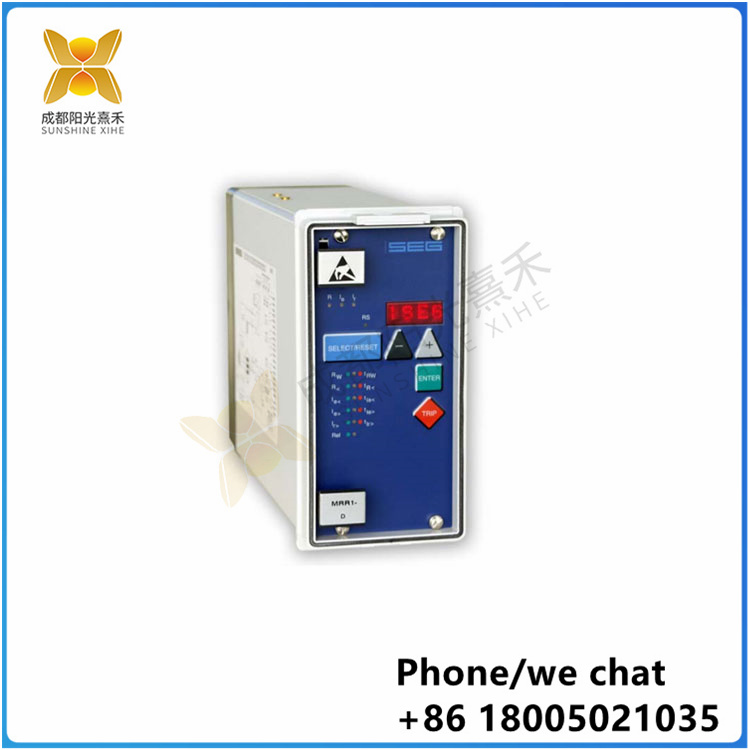

MRR1 |DS200TCPDG1BEC|轉子接地故障保護|

簡介及應用

發電機轉子保護繼電器MRR1集轉子接地故障保護、勵磁過保護于一體

和欠流保護以及旋轉二極管失效保護。

從而為同步發電機轉子提供了強有力的保護，覆蓋了

直流欠流繼電器

領域的繼電器

整流故障繼電器

接地探測器繼電器

直流過流繼電器

MRR1推薦用于同步發電機和額定1mva以上的電動機。

轉子接地故障元件檢測轉子繞組的高低電阻接地故障。它是

設有兩個階段，一個報警，一個跳閘。

勵磁電流保護元件對無刷勵磁機的直流勵磁電流進行監控

機器。保護功能有:二極管欠流、過流、紋波檢測

故障保護。

特點與特點

除了一般MR-description中描述的特性外，MRR1還提供:

檢測高阻抗接地故障，測試頻率為0.5 Hz

接地故障保護的短路和過壓檢測輸入

通過霍爾換能器電隔離勵磁電流測量，測量范圍

0 ~ 20a

絕緣電阻顯示

顯示勵磁電流

勵磁電流過流和欠流保護，具有獨立的電流設置

延遲時間

通過監測勵磁電流的紋波分量來檢測二極管的故障

二級監督轉子絕緣電阻與獨立設置

電阻和延時

兩個跳閘繼電器，一個用于勵磁欠流和過流，一個用于二極管故障檢測

用于阻塞和遠程復位的數字輸入

可編程功能的阻塞輸入

輸出繼電器保護功能的可編程分配

通過RS485遠程接口

 Introduction and application

The generator rotor protection relay MRR1 com-bines rotor earth fault protection, excitation over-

and undercurrent protection as well as rotating diode failure protection.

Thus providing a powerful protection regarding the rotor of synchronous generators, covering the

DC undercurrent relay

Field relay

Rectification failure relay

Ground detector relay

DC over current relay

The MRR1 is recommended for synchronous generators and motors above 1 MVA rating.

The rotor earth fault element detects high- and low resistance earth faults of the rotor winding. It is

equipped with two stages, one for alarm, one for trip.

The excitation current protection element super-vises the DC excitation current of brushless excitor

machines. The protective functions are: Undercurrent, over current and ripple detection for diode

failure protection.

Features and characteristics

Besides features described in the general MR-description, MRR1 provides:

Detection of high impedance earth faults with a test frequency of 0.5 Hz

Short circuit and overvoltage proof measuring input for the earth fault protection

Excitor current measurement galvanically isolated via Hall-transducer, measuring range

0 to 20 A

Display of insulation resistance

Display of the excitation current

Excitation current over- and undercurrent protection with independent settings for current

and delay time

Detection of diode failures by supervision of the ripple component of the excitation current

Two stage supervision of the rotor insulation resistance with independent settings for

resistance and time delay

Two trip relays, one for excitation under- and over current, one for diode failure detection

Digital inputs for blocking and for remote reset

Programmable function of the blocking input

Programmable assignment of protective functions to output relays

Remote interfacing via RS485
