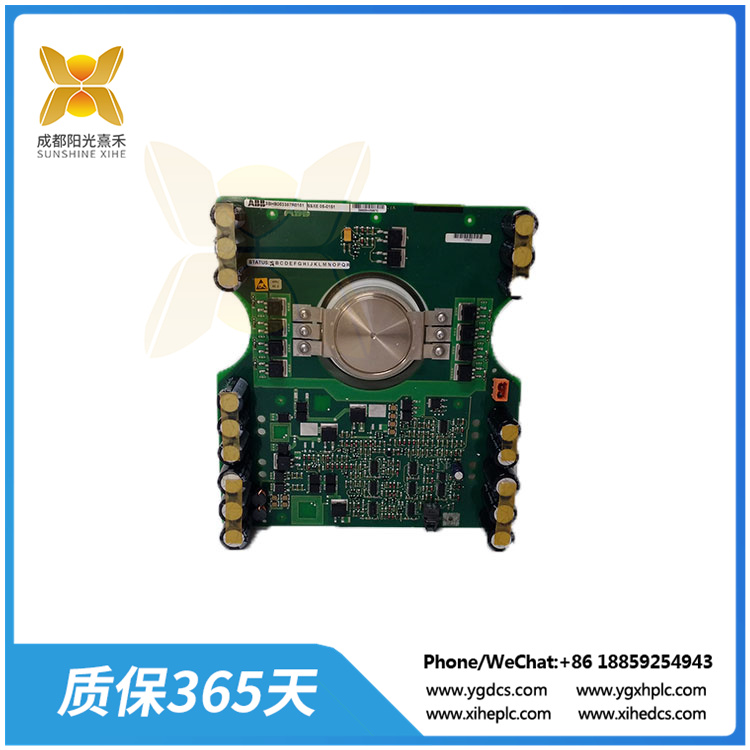

>>>型號:5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104 可控硅控制單元模塊
【功能描述】
5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104 可控硅控制單元模塊，也被稱為晶閘管或可控硅模塊，自20世紀50年代面世以來，已發展成為一大類半導體器件。
5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104的核心成員包括單向可控硅、雙向晶閘管、光控可控硅、逆導可控硅、可關斷可控硅和快速可控硅等。其中，單向可控硅（即普通可控硅）
是現今廣泛使用的類型，它由四層半導體材料構成，包含三個PN結和三個電極引腳：陽極A、控制極G和陰極K。
5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104可控硅控制單元模塊的主要作用包括：
可控整流作用：在一個基本的單相半波可控整流電路中，只有當正弦交流電壓處于正半周，并且在控制極上施加觸發脈沖時，可控硅才會被觸發導通，負載上才會有電壓輸出。通過調整觸發脈沖的到來時間，
可以調節負載上輸出電壓的平均值，實現可控整流。
無觸點開關：它常用于自動化設備中，替代通用繼電器，具有無噪音、壽命長的特點。
開關和調壓作用：在交流電路中，可控硅的觸發時間不同，通過它的電流和電壓只有交流周期的一部分，因此它可以調節輸出電壓。
可控硅控制單元模塊在多個領域都有廣泛的應用，如電力系統、工業自動化、電動機控制以及電熱設備控制等。在電力系統中，它可以用于電力控制和調節，如控制電流大小以實現負荷平衡和電壓穩定。在工業自動化領域，
可控硅模塊被用于電機控制，通過控制觸發電壓和觸發角，實現對電機的啟動、停止和調速等功能。在電熱設備控制中，它可以控制加熱元件的加熱功率，以滿足設定的溫度要求。
>>>>型號:5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104 可控硅控制單元模塊
【英文介紹】
The 5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104 thyristor control unit module, also known as thyristor or thyristor module, has developed into a large class of semiconductor
devices since its introduction in the 1950s.
The core members of 5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104 include unidirectional thyristor, bidirectional thyristor, optically controlled thyristor, reverse-guided thyristor,
turn-off thyristor and fast thyristor. Among them, unidirectional thyristor (that is, ordinary thyristor) is the type widely used today, which is composed of four layers of semiconductor material containing
three PN junctions and three electrode pins: anode A, control pole G, and cathode K.
5SHX06F6004-3BHB003387R0101-5SXE05-0151-3BHB003151P104 The main functions of the thyristor control unit module include:
Controlled rectifier action: In a basic single-phase half-wave controlled rectifier circuit, only when the sinusoidal AC voltage is in the positive half cycle, and the trigger pulse is applied on the control pole,
the thyristor will be triggered and the voltage output will be on the load. By adjusting the arrival time of the trigger pulse, the average value of the output voltage on the load can be adjusted to achieve
controllable rectification.
Contactless switch: It is often used in automation equipment, replacing universal relays, with no noise, long life characteristics.
Switching and voltage regulation: In an AC circuit, the triggering time of the thyristor is different, and the current and voltage through it are only part of the AC cycle, so it can adjust the output voltage.
Thyristor control unit modules are widely used in many fields, such as power systems, industrial automation, motor control and electric heating equipment control. In power systems, it can be used for power
control and regulation, such as controlling the current size to achieve load balancing and voltage stability. In the field of industrial automation, thyristor modules are used for motor control, which can start,
stop and speed regulate the motor by controlling the trigger voltage and trigger Angle. In the control of electric heating equipment, it can control the heating power of the heating element to meet the set
temperature requirements.
