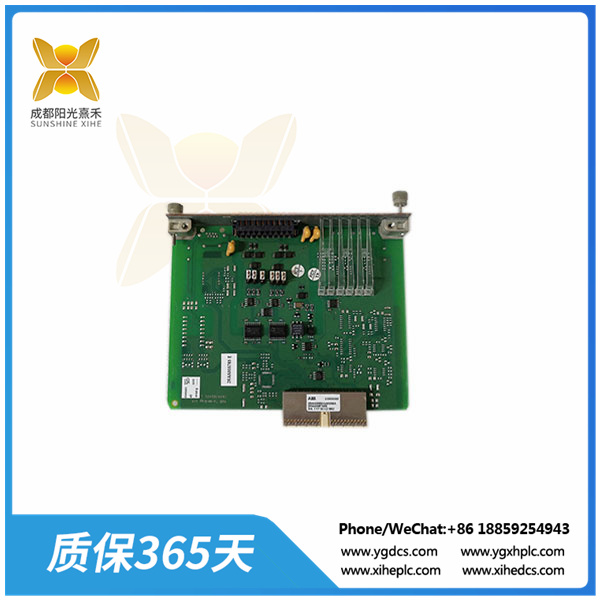

COM0034 | 控制器模塊 | 216MB66 HESG324510M1
模型:COM0034
類別:控制器模塊
額定電流:1A
額定電壓:230V AC
控制方式:開環控制保護功能過載保護、欠壓保護、過壓保護、短路保護等
通訊接口RS232、RS485
尺寸:100 × 50 × 40毫米
重量:0.5公斤
控制器由程序計數器、指令寄存器、指令解碼器、定時發生器、操作控制器等組成，負責從主存儲器中取出指令，指出下一條指令在主存儲器中的位置，對指令進行解碼或測試，并產生相應的操作控制信號，以啟動指定動作。 此外，控制器還負責指揮和控制CPU、主存、輸入輸出設備之間數據流的方向。
它是如何工作的:
COM0034控制器的功能是接收輸入信號(如傳感器輸入信號或用戶輸入信號)并產生輸出信號，實現對系統的控制。
工作過程包括輸入信號接收、信號處理、控制算法執行、輸出信號生成、系統監控與反饋。
適用范圍:
家用電器:如空調、洗衣機、冰箱等，通過控制器實現對設備的自動控制和監控。
工業制造:在自動化生產線和機器人系統中，控制器用于實時監控和控制生產過程中的各種參數。
交通:如交通信號燈、電梯、地鐵系統等，控制器用于控制智能設備的運行。
能源管理:在智能家居和工業能源系統中，控制器用于監控和調節能源消耗，以提高能源效率
Model: COM0034
Category: Controller module
Rated current: 1A
Rated voltage: 230V AC
Control mode: open loop controlProtection function Overload protection, undervoltage protection, overvoltage protection, short circuit protection, etc
Communication ports RS232, RS485
Dimensions: 100 x 50 x 40 mm
Weight: 0.5kg
.
The controller is composed of program counter, instruction register, instruction decoder, timing generator and operation controller, etc., which is responsible for taking out instructions from main memory, pointing out the position of the next instruction in main memory, decoding or testing instructions, and generating corresponding operation control signals to start the specified actions. In addition, the controller is responsible for directing and controlling the direction of data flow between the CPU, main memory, input and output devices.
How it works:
The COM0034 controller controls the system by receiving input signals (such as those from sensors or user input) and generating output signals.
The working process includes input signal receiving, signal processing, control algorithm execution, output signal generation, system monitoring and feedback.
Scope of application:
Household appliances: such as air conditioning, washing machines, refrigerators, etc., through the controller to achieve automatic control and monitoring of equipment.
Industrial manufacturing: In automated production lines and robotic systems, controllers are used to monitor and control various parameters in the production process in real time.
Transportation: such as traffic lights, elevators, subway systems, etc., the controller is used to control the operation of intelligent equipment.
Energy Management: In smart home and industrial energy systems, controllers are used to monitor and regulate energy consumption to improve energy efficiency
