5SHY3545L0005   | IGCT模塊  |  5SHY3545L0003  |  336A4954ARP2

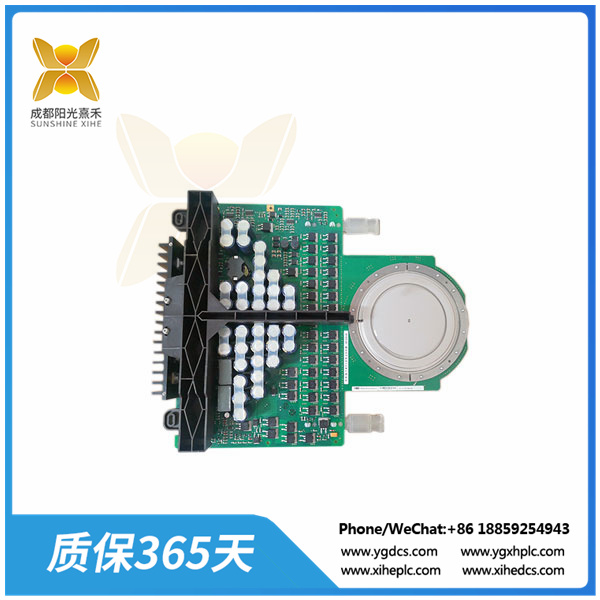

　　型號：5SHY3545L0005

　　類別：IGCT模塊

　　成色：全新/非全新

　　貨期：現貨

　　質保：一年

　　IGCT模塊是一種高性能的半導體可控硅模塊，具有顯著的特點和優勢。

　　IGCT模塊具有以下顯著特點：

　　電流大：5SHY3545L0005 IGCT模塊能夠承受大電流，適用于高壓、高功率應用。

　　阻斷電壓高：具有高的阻斷電壓能力，確保在高壓條件下穩定工作。

　　開關頻率高：5SHY3545L0005 具有較高的開關頻率，能夠?qū)崿F(xiàn)快速的電力控制和調節。

　　可靠性高：通過先進的制造工藝和材料，確保IGCT模塊具有高可靠性和穩定性。

　　結構緊湊：緊湊的設計使得IGCT模塊易于安裝和集成到各種電力系統中。

　　IGCT模塊的工作原理基于GTO芯片的控制特性。在導通階段，IGCT模塊發揮晶閘管的性能，實現電流的順暢流動。在關斷階段，它呈現晶體管的特性，通過控制門極電壓實現電流的迅速切斷。這種工作原理使得IGCT模塊能夠在需要時快速響應并調節電流和電壓。

　　三、功能與應用

　　5SHY3545L0005 IGCT模塊能夠控制電流和電壓的傳導，使它們在電路中的流動可以根據需要進行調節。此外，它還具有電流和電壓限制功能，有助于確保系統在安全范圍內運行。IGCT模塊廣泛應用于高壓大功率的電力電子系統中，如風力發電、電動汽車、電網穩定等領域。在這些應用中，IGCT模塊用于實現電力的高效轉換和控制，確保系統的穩定運行。

　　Model: 5SHY3545L0005

　　Category: IGCT module

　　Finish: New/not new

　　Delivery time: from stock

　　Warranty: One year

　　IGCT module is a kind of semiconductor thyristor module with high performance, which has remarkable characteristics and advantages.

　　IGCT modules have the following notable features:

　　High current: The 5SHY3545L0005 IGCT module can withstand high current and is suitable for high voltage and high power applications.

　　High blocking voltage: High blocking voltage capability to ensure stable operation under high voltage conditions.

　　High switching frequency: 5SHY3545L0005 has a high switching frequency, enabling fast power control and regulation.

　　High reliability: Through advanced manufacturing processes and materials, IGCT modules are guaranteed to have high reliability and stability.

　　Compact: The compact design makes the IGCT module easy to install and integrate into various power systems.

　　The working principle of IGCT module is based on the control characteristics of GTO chip. In the on-off stage, IGCT module plays the performance of thyristor to achieve smooth current flow. In the off phase, it takes on the characteristics of a transistor, and the current is quickly cut off by controlling the gate voltage. This working principle allows the IGCT module to respond quickly and adjust current and voltage when needed.

　　Third, function and application

　　The 5SHY3545L0005 IGCT module controls the conduction of current and voltage so that their flow in the circuit can be adjusted as needed. In addition, it has current and voltage limiting features to help ensure that the system operates within a safe range. IGCT modules are widely used in high-voltage and high-power power electronic systems, such as wind power generation, electric vehicles, grid stability and other fields. In these applications, IGCT modules are used to achieve efficient conversion and control of power, ensuring stable system operation.
