>>>>>型號:369-HI-R-M-F-E-H-E 電機保護繼電器提供了多種選擇

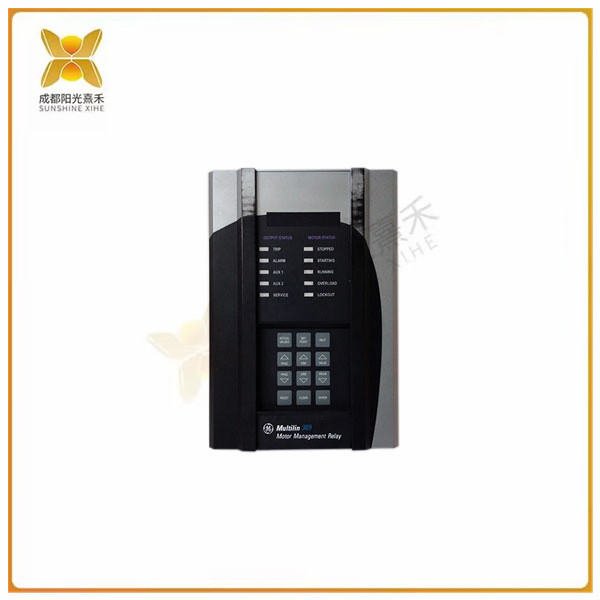

369-HI-R-M-F-E-H-E 5.jpg

【功能描述】

通用電氣多線公司的369-HI-R-M-F-0-H-E是一種369電機保護繼電器。該系列繼電器旨在保護電機(三相)和相關系統，同時在兩種控制輸入功率水平下提供許多基本功能和選項。

369-嗨-R-M-F-0-H-E提供了多種選擇。這包括12個RTD輸入。RTD裝置位于裝置后部的左側。該裝置也有一個可選的計量包。計量包增加了對VT輸入的訪問，允許電壓和功率元件。使用此選項可以計量赫茲、千伏安、千瓦、伏特和兆瓦時。

369-LO-0-M-F-E-0還安裝了一個額外的光纖端口。光纖端口的波特率為1200至19200，使用Modbus RTU協議。這用于頻道3。當用于通道3時，通道3 RS485連接被禁用。但是，該裝置仍有其他RS485端口可用。此外，該裝置有一個RS232端口，可用于連接PC。這通常用于與GE的EnerVista軟件通信。

369-HI-R-M-0-0-0-E是通用電氣多線369系列電機管理繼電器的一部分。這種型號的369，連同其升級和配件，很快就要停產，處于最后一次購買狀態。一些升級，如作為保護層的防腐蝕、高溫、防塵和防潮的保形涂層，仍然可以在生產線停產后添加。

>>>>>型號:369-HI-R-M-F-E-H-E 電機保護繼電器提供了多種選擇

369-HI-R-M-F-E-H-E 5.jpg

【英文介紹】

The General Electric Multiwire 369-HI-R-M-F-0-H-E is a 369 motor protection relay. This series of relays is designed to protect the motor (three-phase) and associated systems while providing many basic functions and options at both control input power levels.

369-Hi-R-M-F-0-H-E offers a variety of options. This includes 12 RTD inputs. The RTD unit is located on the left side of the rear of the unit. The unit also has an optional metering package. The metering package increases access to the VT input, allowing both voltage and power components. With this option, you can measure Hertz, KVA, kilowatts, volts, and megawatt-hours.

The 369-LO-0-M-F-E-0 also has an additional fiber optic port installed. The optical fiber port has a baud rate of 1200 to 19200 and uses the Modbus RTU protocol. This is used for channel 3. When used in channel 3, the RS485 connection in channel 3 is disabled. However, the device still has other RS485 ports available. In addition, the unit has an RS232 port that can be used to connect to a PC. This is typically used to communicate with GE's EnerVista software.

The 369-HI-R-M-0-0-0-0-E is part of the General Electric Multi-wire Series 369 motor management relays. This model 369, along with its upgrades and accessories, will soon be discontinued and is in its last purchase condition. Some upgrades, such as conformal coatings that act as protective layers against corrosion, high temperature, dust and moisture, can still be added after production lines are discontinued.
