>>>>>型號:369-LO-0-M-F-E-0-0 數字繼電器 VAC包括可選的計量套件

【功能描述】

369-LO-0-M-F-E-0 20-60 VDC 20-48 VAC包括可選的計量套件、可選的光纖端口和可選的Modbus TCP over Ethernet接口。

369-LO-0-M-F-E-0是GE 369電機管理繼電器的一個版本。這是一種數字繼電器，用于保護和監控機械系統和三相電機。這些系統經過精心設計，可以“學習”電機參數并適應使用中的應用。

369-LO-0-M-F-E-0的控制功率額定為20-60 VDC（20-48 VAC）。該裝置具有可選的計量包、可選的光纖端口和可選的Modbus/TCP協議接口。該可選計量套件提供VT輸入，以允許電壓和功率元件。這也可用于計量MWhrs、Hz、kVA、KW、V和PF。

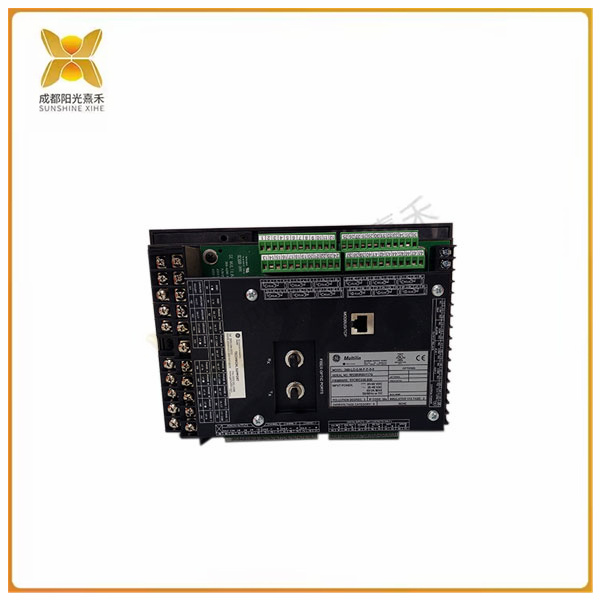

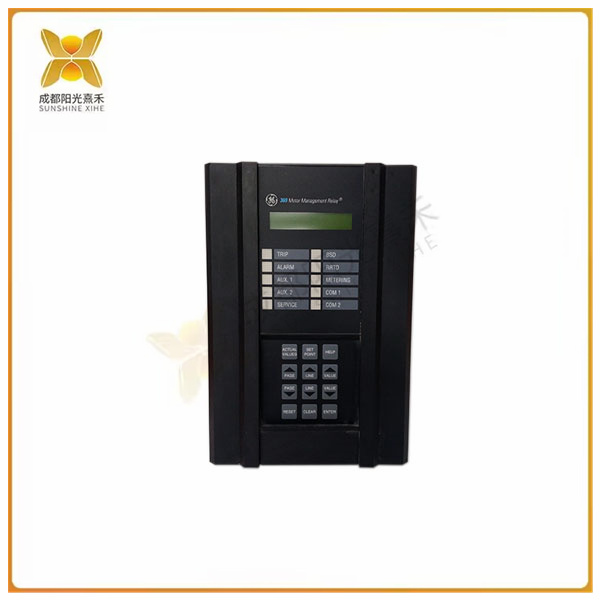

本機還具有一個RS232前面板端口以及三個RS485后端口。所有端口均標配Modbus RTU協議。前鍵盤（位于前面板上）可用于輸入設定值。這些也可以通過EnerVista 369軟件使用計算機通過連接輸入。

369-LO-0-M-F-E-0提供許多其他選項，包括增強型電機學習數據、電機啟動數據記錄、增強型事件記錄、用戶定義的輪詢輸入數據、通信丟失跳閘和欠壓自動重啟。

 >>>>>型號:369-LO-0-M-F-E-0-0 數字繼電器 VAC包括可選的計量套件

【英文介紹】

369-LO-0-M-F-E-0 20-60 VDC 20-48 VAC includes optional metering kit, optional fiber port, and optional Modbus TCP over Ethernet interface.

The 369-LO-0-M-F-E-0 is a version of the GE 369 motor management relay. This is a digital relay used to protect and monitor mechanical systems and three-phase motors. These systems are carefully designed to "learn" motor parameters and adapt to the application in use.

The 369-LO-0-M-F-E-0 control power rating is 20-60 VDC (20-48 VAC). The device has an optional metering package, an optional fiber port, and an optional Modbus/TCP protocol interface. The optional metering kit provides a VT input to allow voltage and power elements. This can also be used to measure MWhrs, Hz, kVA, KW, V and PF.

The unit also has an RS232 front panel port and three RS485 rear ports. All ports are configured with Modbus RTU as standard. The front keyboard (located on the front panel) can be used to enter Settings. These can also be entered via the EnerVista 369 software using the computer via connection.

The 369-LO-0-M-F-E-0 provides many other options, including enhanced motor learning data, motor start data logging, enhanced event logging, user-defined polling input data, communication loss tripping, and undervoltage automatic restart.
