>>>>>型號:469-P5-HI-A20-E 電機管理繼電器系列 具有增強的前面板
【功能描述】
SR469-P5-HI-A20-E 來自 GE Multilin，是 SR 469 電機管理繼電器系列的一部分。該裝置設計有 5 安培相位 CT 次級。SR 469 繼電器設計用于中壓電機，提供集成管理和保護。AX Control 備有多種不同 Multilin SR 469 繼電器的現貨。
SR469-P5-HI-A20-E 提供 70-265 VAC、90-300 VDC 控制電源。本機具有增強的前面板。但是，如果您需要可以在惡劣環境中使用的裝置，請參閱我們的 SR469-P5-HI-A20-E-H 列表，除了額外的惡劣環境保形涂層外，它在各個方面都與該裝置相似。

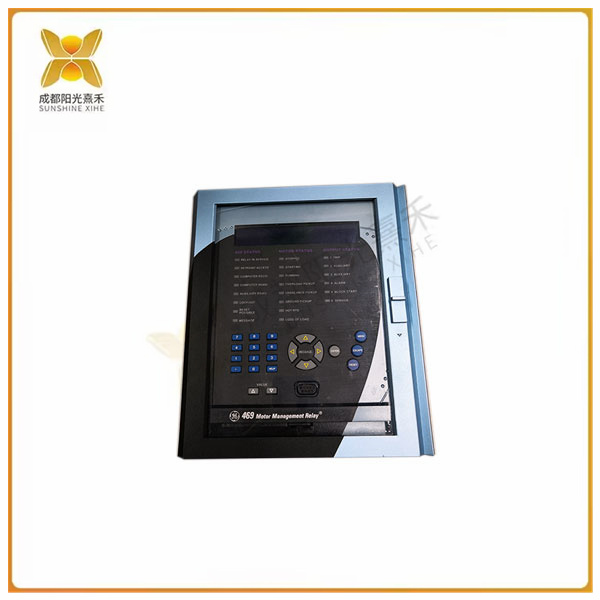

SR469-P5-HI-A20-E 具有精心設計的前面板，易于使用。該面板包括一個 RS-232 程序端口接口，波特率為 9600，可編程至 19,200 波特率。該面板有一個拉出式手柄，可以密封以防止任何形式的未經授權的拆卸。前面板有一個大的 LCD 顯示屏，具有 40 個字符的功能。用戶可以通過此顯示屏在本地查看診斷消息，例如跳閘或警報。此外，該面板還具有電機和輸出狀態指示燈、單位指示燈、數字鍵盤、控制和編程鍵，包括復位、轉義和菜單按鈕，以及允許用戶更改設定值的值鍵。
>>>>>型號:469-P5-HI-A20-E 電機管理繼電器系列 具有增強的前面板
【英文介紹】
The SR469-P5-HI-A20-E is from GE Multilin and is part of the SR469 motor management relay family. The device is designed with a 5 amp phase CT secondary. The SR 469 relay is designed for use in medium voltage motors and provides integrated management and protection. AX Control has a wide range of different Multilin SR 469 relays in stock.
The SR469-P5-HI-A20-E offers 70-265 VAC, 90-300 VDC control power. This unit has an enhanced front panel. However, if you need a unit that can be used in harsh environments, see our SR469-P5-HI-A20-E-H list, which is similar to the unit in every way except for the additional harsh environment conformation coating.
The SR469-P5-HI-A20-E features a well-designed front panel for ease of use. The panel includes an RS-232 program port interface with a baud rate of 9600, programmable to 19,200 baud rate. The panel has a pull-out handle that can be sealed to prevent any form of unauthorized removal. The front panel has a large LCD display with a 40-character feature. This display allows users to view diagnostic messages, such as tripping or alerts, locally. In addition, the panel features motor and output status indicators, unit indicators, numeric keypads, control and programming keys, including reset, escape and menu buttons, and value keys that allow users to change set values.
