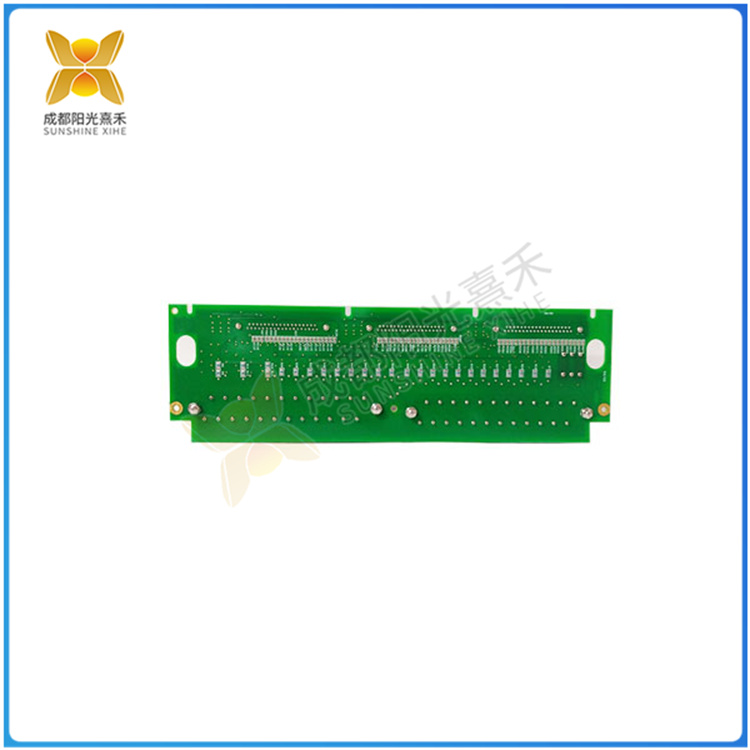

>>>>>型號:IS200TBCIS2CCD 接觸輸入設備

【功能描述】

IS200TBCIS2CCD是一種帶有組隔離端子板的接觸輸入設備，可以接收24個干接點輸入，并同時連接到兩個屏障型端子塊。

該設備可以與多種控制系統一起使用，包括Mark VI、Mark VIe和Mark VIeS。在Mark VIeS控制系統中，TBCIS1C、TBCIS2C和TBCIS3C型號都通過了安全認證。

IS200TBCIS2CCD可以與Mark VIe IS220PDIA和Mark VIeS IS200YDIA型號以及所有與PDIA和YDIA單元相關的型號一起使用。

在系統配置方面，IS200TBCIS2CCD可以用于單工和三模冗余（TMR）系統。

在TMR系統中，電纜將使用JS1、JT1和JR1連接器連接到I/O處理器。

在Simplex系統中，I/O處理器將僅通過JR1連接器連接。對于Mark VIe/VIeS系統，相關的I/O包將直接插入TBCI模型，然后連接到側面安裝支架上。

>>>>>型號:IS200TBCIS2CCD 接觸輸入設備

【英文介紹】

The IS200TBCIS2CCD is a contact input device with a set of isolated terminal boards that can receive 24 dry contact inputs and connect

to two barrier type terminal blocks simultaneously.

The device can be used with a variety of control systems, including Mark VI, Mark VIe and Mark VIeS. In the Mark VIeS control system,

the TBCIS1C, TBCIS2C and TBCIS3C models have all passed safety certification.

The IS200TBCIS2CCD can be used with the Mark VIe IS220PDIA and Mark VIeS IS200YDIA models and all models associated with PDIA

and YDIA units.

In terms of system configuration, the IS200TBCIS2CCD can be used in simplex and three-mode redundancy (TMR) systems.

In a TMR system, the cable will be connected to the I/O processor using JS1, JT1, and JR1 connectors.

In a Simplex system, the I/O processor will only be connected via the JR1 connector. For Mark VIe/VIeS systems, the associated I/O

packages are inserted directly into the TBCI model and then attached to the side mount bracket.
