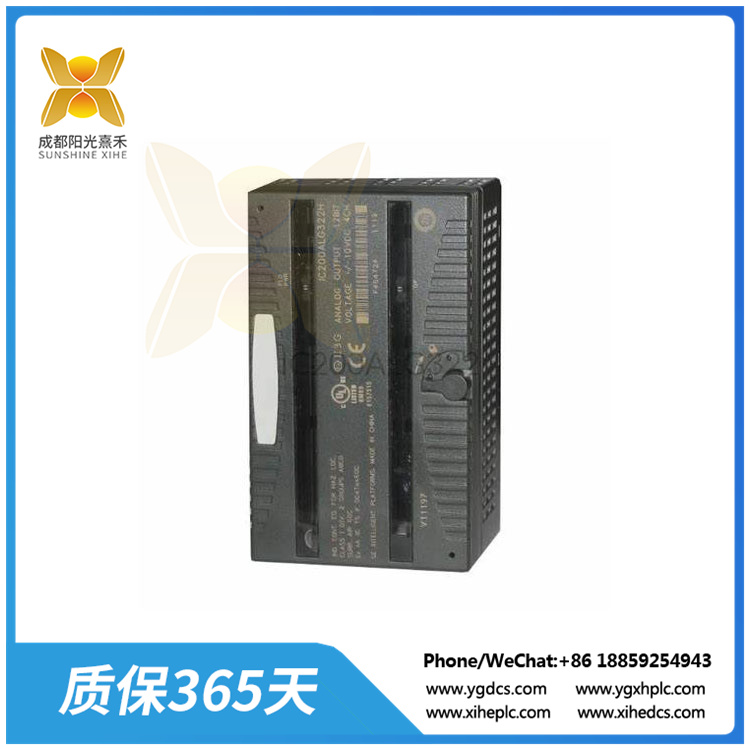

>>>>>型號:IC200ALG322 模擬輸出模塊

【功能描述】

IC200ALG322是Versamax模擬輸出模塊，專為提供不同輸出與電路主處理器之間的連接方法而設計。

該模塊具有四個模擬電壓輸出，可用作設備的連接器，并通過Versamax PLC系統使用的同一背板電源供電，但輸出需要外部電源。

IC200ALG322模塊在±10.24伏直流輸出電壓和最小5000歐姆的電阻負載下運行。它還具有12位分辨率，當在特定溫度范圍內使用時，其準確度等級為±0.3%到1%。此外，該模塊的額定電流消耗為210毫安，通道間串擾抑制最小為70 dB。

在安裝前，建議檢查該模塊并記下設備上的序列號，同時保存好所有的運輸容器和包裝材料。IC200ALG322模塊還帶有不同的診斷方法，能夠創建報告以顯示典型現場側電路是否存在側功率損耗。

IC200ALG322模塊的智能處理功能由Versamax系列的主CPU執行，確保高效且準確的控制。其強大的功能和穩定性使得它成為工業自動化和控制系統的理想選擇。

總的來說，IC200ALG322是一款功能強大、性能穩定的模擬輸出模塊，適用于各種工業自動化和控制應用。

>>>>>型號:IC200ALG322 模擬輸出模塊

【英文介紹】

The IC200ALG322 is a Versamax analog output module designed to provide a connection method between different outputs and the circuit's main processor.

The module has four analog voltage outputs that can be used as connectors for the device and is powered by the same backplane power supply used by the Versamax PLC system, but the output requires

 an external power supply.

The IC200ALG322 module operates at ±10.24 volts DC output voltage and a minimum resistance load of 5000 ohms. It also has a 12-bit resolution and an accuracy rating of ±0.3% to 1% when used over a

specific temperature range. In addition, the module has a rated current consumption of 210 mA and a minimum interchannel crosstalk suppression of 70 dB.

Before installation, it is recommended to check the module and write down the serial number on the device, as well as keep all shipping containers and packaging materials. The IC200ALG322 module also

comes with a different diagnostic method, capable of creating reports to show if there is a side power loss in a typical field side circuit.

The intelligent processing functions of the IC200ALG322 module are performed by the main CPU of the Versamax family, ensuring efficient and accurate control. Its powerful features and stability make it

 ideal for industrial automation and control systems.

Overall, the IC200ALG322 is a powerful and stable analog output module for a variety of industrial automation and control applications.
