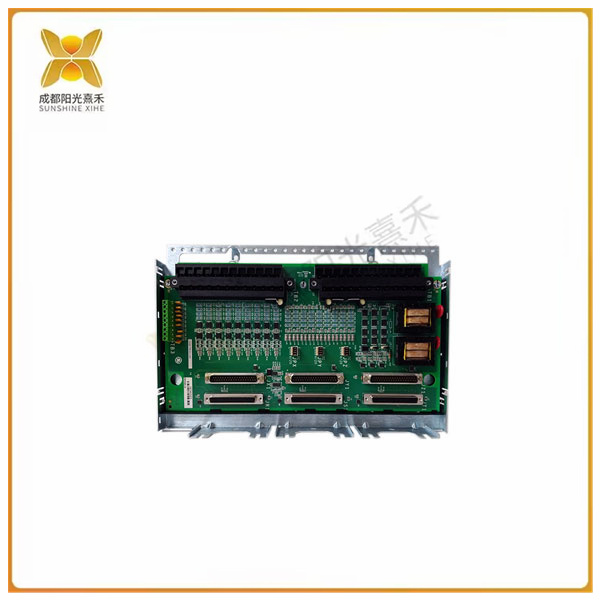

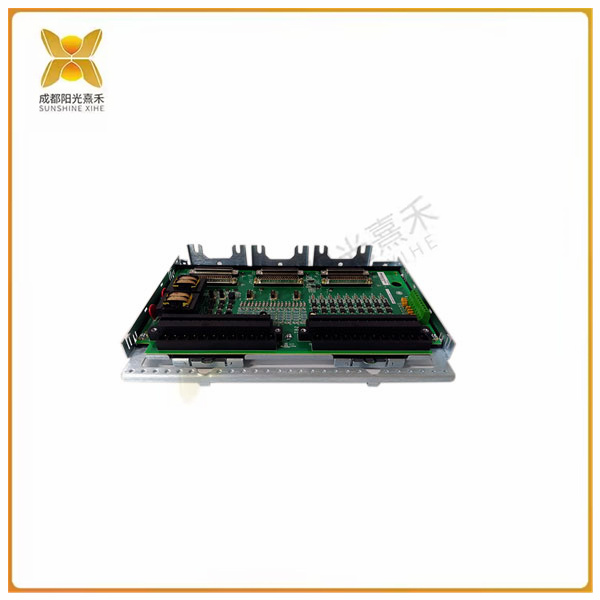

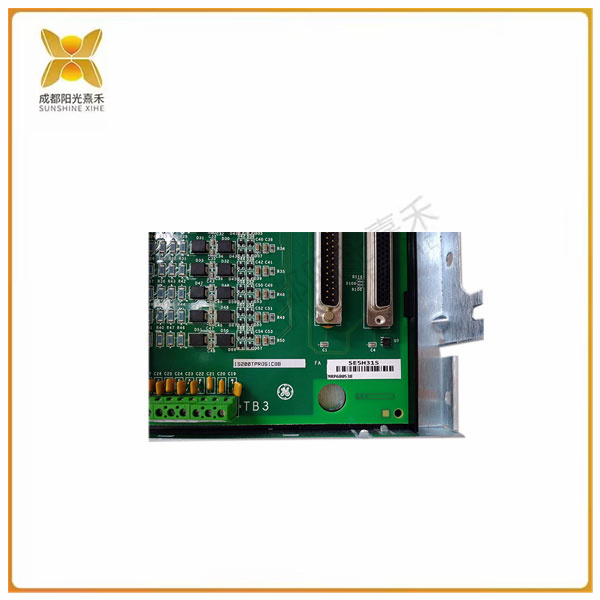

>>>>>型號:IS200TPROS1CBB-IS230TSPRH1C-MRP680538 模擬量輸入/輸出接口 TMR 應用程序
【功能描述】
IS200TPROS1CBB-IS230TSPRH1C-MRP680538 是一種模擬量輸入/輸出接口，通常用于工業自動化領域。它能夠感知傳感器產生的信號，如溫度、壓力、流量等，并可用于控制電壓或電流輸出設備。該接口的典型量程為-10～+10V、0～+11V、4～20mA或10～50mA。在選擇PLC時，用戶可能會面臨一些特殊類型且不能用標準I/O實現的I/O限定（如定位、快速輸入、頻率等），此時用戶應當考慮供銷廠商是否提供有有助于限度減小控制作用的模塊。有些特殊接口模塊自身能處理一部分現場數據，從而使CPU從繁重的任務處理中解脫出來。
IS200TPROS1CBB-IS230TSPRH1C-MRP680538 接口的應用場景主要包括工業自動化領域，如控制生產設備、機械臂、閥門、馬達、傳送帶等，以實現自動化的制造和加工過程。它廣泛用于各種工業自動化和控制系統中，如機床、機器人、輸送帶系統和印刷機等，以提高生產效率和精度。此外，它還可以用于數字化轉型的落地關鍵階段，以及在“3060碳目標”的要求下，中國制造企業轉型升級的緊迫情況下，助力企業實現能源消耗的降低和碳排放的減少。
IS200TPROH1C 兼容性
TPROH1C 是一個單工和 TMR 應用程序，可與 PPRO I/O 包配合使用。TPROH#C 鏈接到 TMR 系統中的三個 PPRO I/O 包。TPROH1CD 和 H12C 都接受三個 PPROH1A 用于直接連接，并包括用于三根電纜到備用跳閘繼電器端子板的 DC-37 連接。
IS200TPROH1C 安裝

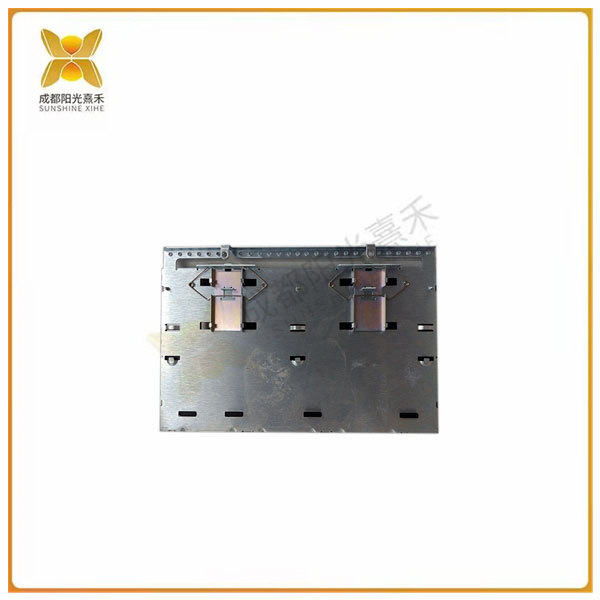

TPROH1C 和塑料絕緣體安裝在安裝在 DIN 導軌安裝的鈑金載體上。TPRO 和絕緣體也可以安裝在直接用螺栓固定在面板上的鈑金組件上。典型的 #18 AWG 電線用于將速度信號和 PT 輸入連接到接線端子?？梢圆鹣?TPROH1C 阻隔接線端子以更換電路板。TPROH2C 是一種可插入的可拆卸歐式接線端子。
>>>>>型號:IS200TPROS1CBB-IS230TSPRH1C-MRP680538 模擬量輸入/輸出接口 TMR 應用程序
【英文介紹】
IS200TPROS1CBB-IS230TSPRH1C-MRP680538 is an analog input/output interface commonly used in the field of industrial automation. It can sense the signals generated by the sensor, such as temperature, pressure, flow, etc., and can be used to control voltage or current output devices. Typical ranges for this interface are -10 to +10V, 0 to +11V, 4 to 20mA, or 10 to 50mA. When choosing a PLC, the user may face some special types of I/O restrictions that cannot be achieved with standard I/O (such as positioning, fast input, frequency, etc.), at which time the user should consider whether the supplier provides a module that helps to minimize the control effect. Some special interface modules can process part of the field data themselves, so that the CPU can be freed from heavy task processing.
The application scenarios of the IS200TPROS1CBB-IS230TSPRH1C-MRP680538 interface mainly include the field of industrial automation, such as controlling production equipment, mechanical arms, valves, motors, conveyor belts, etc., to realize automated manufacturing and processing processes. It is widely used in various industrial automation and control systems, such as machine tools, robots, conveyor belt systems and printing presses, to improve production efficiency and accuracy. In addition, it can also be used in the key stage of digital transformation, and in the urgent situation of the transformation and upgrading of Chinese manufacturing enterprises under the requirements of the "3060 carbon target", to help enterprises achieve the reduction of energy consumption and carbon emissions.
IS200TPROH1C Compatibility
TPROH1C is a simplex and TMR application that works with PPRO I/O packages. TPROH#C links to the three PPRO I/O packages in the TMR system. Both the TPROH1CD and H12C accept three PPROH1As for direct connections and include a DC-37 connection for the three cables to the spare trip relay terminal board.
IS200TPROH1C Installation
The TPROH1C and plastic insulators are mounted on a sheet metal carrier mounted on a DIN rail mount. TPRO and insulators can also be mounted on sheet metal assemblies bolted directly to the panel. A typical #18 AWG wire is used to connect the speed signal and PT input to the terminal. The TPROH1C block terminal can be removed to replace the circuit board. TPROH2C is a removable European terminal that can be inserted.
