IS200TREGH1B Mark VI主板跳閘緊急終止板印刷電路板

>>>>>型號:IS200TREGH1B Mark VI主板跳閘緊急終止板【功能描述】通用電氣（General Electric）或通用電氣（GE）創建了IS200TREGH1B作為跳閘緊急終止板。這是一種為Mark VI系列制造的印刷電路板或PCB。Mark VI 是通用電氣 Mark 系列的最新系列。這些系列是為蒸汽輪機和燃?xì)廨啓C(jī)的運行和自動化而設計的。

電話/Phone：18859254943 (微信同號)

郵箱/Email：sales@ygdcs.com

QQ：3561040004

在線咨詢

產品詳情

>>>>>型號:IS200TREGH1B Mark VI主板跳閘緊急終止板

【功能描述】

通用電氣（General Electric）或通用電氣（GE）創建了IS200TREGH1B作為跳閘緊急終止板。這是一種為Mark VI系列制造的印刷電路板或PCB。Mark VI 是通用電氣 Mark 系列的最新系列。這些系列是為蒸汽輪機和燃?xì)廨啓C(jī)的運行和自動化而設計的。

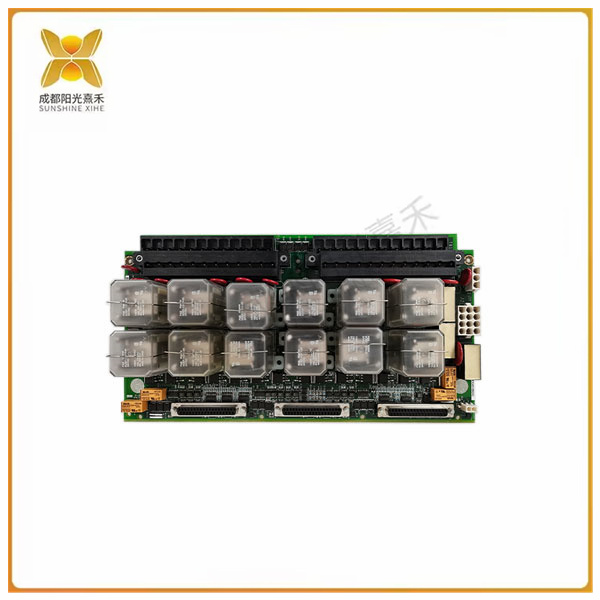

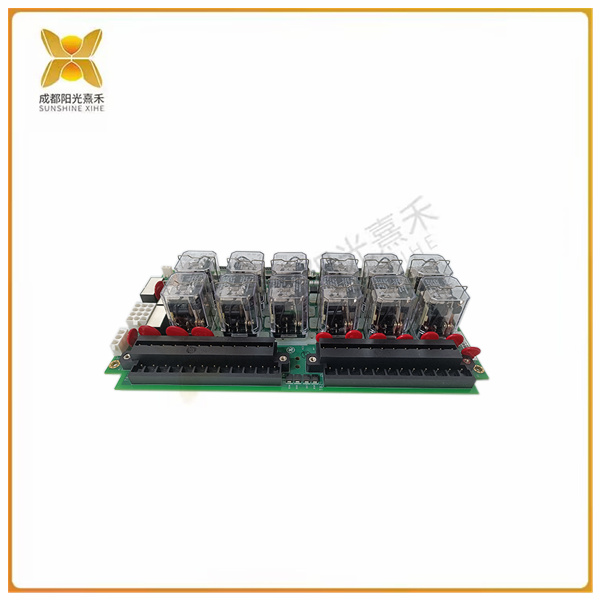

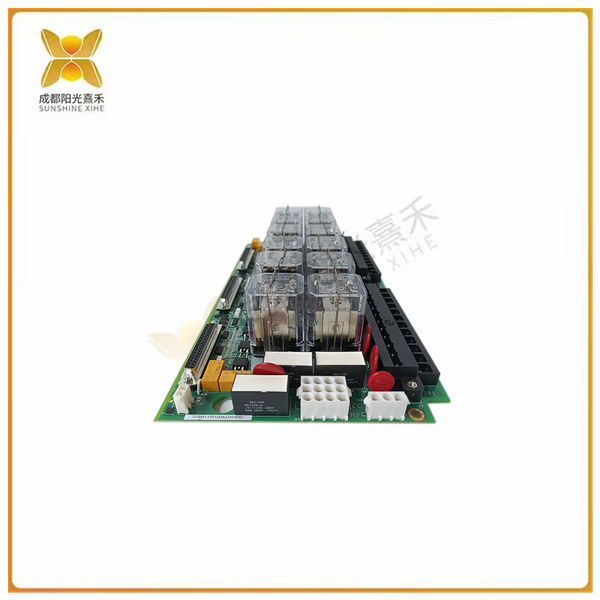

該設備上最引人注目的組件是一系列正方形的變壓器。這些變壓器由透明塑料和銀線覆蓋。這些蓋板包含有關組件的信息，例如部件號和電壓。這些變壓器中有十二（12）個位于IS200TREGH1B上的兩條垂直線，每條垂直線有六（6）個變壓器。兩（2）個大型黑色接線端子占據了IS200TREGH1B左邊緣的空間。接線端子共有四十八（48）個端子，由銀色金屬制成。這些端子在兩（2）個接線端子之間平均分配為二十四（24）個。該IS200TREGH1B包含許多稱為金屬氧化物壓敏電阻或MOV的組件。這些 MOV 是圓形和純紅色的。它們被放置在IS200TREGH1B的邊緣。三（3）個白色跳線端口已放置在IS200TREGH1B的頂部邊緣。這些端口之間總共有十七（17）個端口。左側的連接器具有三個端口，標識為 JH1。中間的連接器包含十二個標識為 J2 的端口，右側的最后一個連接器包含標識為 J1 的兩（2）個端口。

>>>>>型號:IS200TREGH1B Mark VI主板跳閘緊急終止板

IS200TREGH1B .jpg

【英文介紹】

General Electric or GE created the IS200TREGH1B as a trip emergency termination board. This is a printed circuit board or PCB manufactured for the Mark VI series. The Mark VI is the latest in the General Electric Mark series. These series are designed for the operation and automation of steam and gas turbines.

The most striking component on the device is a series of square transformers. These transformers are covered with transparent plastic and silver wire. These cover plates contain information about the component, such as part number and voltage. There are twelve (12) of these transformers located on two vertical lines on the IS200TREGH1B, each of which has six (6) transformers. Two (2) large black terminals occupy the space on the left edge of the IS200TREGH1B. There are forty-eight (48) terminals, made of silver metal. These terminals are evenly divided into twenty-four (24) terminals between two (2) terminals. The IS200TREGH1B contains a number of components called metal oxide varistors or MOV. These MOV are round and solid red. They are placed on the edge of IS200TREGH1B. Three (3) white jumper ports have been placed on the top edge of the IS200TREGH1B. There are a total of seventeen (17) ports between these ports. The connector on the left has three ports, identified as JH1. The middle connector contains twelve ports identified as J2, and the last connector on the right contains two (2) ports identified as J1.
