>>>>>型號:IS200VCMIH2BEE 印刷電路板 單元數據高速公路
【功能描述】
IS200VCMIH2BEE是一款印刷電路板（PCB）單元，具有數據高速公路功能。
在PCB設計中，數據高速公路是用于傳輸高速數字信號的通道，通常用于連接多個芯片或模塊之間的數據傳輸。IS200VCMIH2BEE作為PCB單元，可以提供高速、穩定的數據傳輸能力，以滿足各種復雜的應用需求。
具體來說，IS200VCMIH2BEE印刷電路板單元可能具有以下特點：
高帶寬：能夠支持高速數據傳輸，滿足高帶寬應用的需求。
低延遲：具有低延遲特性，確保數據傳輸?shù)膶崟r性。
可靠性：采用高質量的材料和制造工藝，確保數據傳輸?shù)姆€(wěn)定性和可靠性。
易于集成：具有易于集成的接口和連接器，方便與其他組件和模塊連接。
可擴展性：能夠支持多種接口和協議，滿足未來擴展的需求。
需要注意的是，具體的應用和功能可能會因?qū)嶋H設計和應用需求而有所不同。因此，在使用IS200VCMIH2BEE印刷電路板單元時，建議參考相關的技術文檔和數據手冊，以了解其詳細的功能和應用范圍。
該IS200VCMIH2BEE由通用電氣設計，作為其工業燃?xì)廨啓C(jī)和蒸汽輪機控制系統Speedtronic Mark VI的一部分。此版本的Speedtronic系統通常用于加工廠和發電應用，以控制渦輪機啟動期間的速度、同步發電機、提供渦輪機負載控制以及防止負載損失和渦輪機超速情況。
該IS200VCMIH2BEE是單元數據高速公路（UDH）的一部分。它用作主通信控制器板。數據通過光纖以太網（IONet）讀取并傳輸?shù)狡渌濉?/p>
VCMI板可設計用于單工或TMR（三重模塊化冗余）應用。單工板有一個IONet端口，而TMR板將有三個。IS200VCMIH2BEE板是TMR板。
IS200VCMIH2BEE使用SIFT投票（軟件實現的容錯）。數據在一個數據包中廣播到所有遠程機架。這些遠程位置的VCMI板提取適當?shù)臄?shù)據包數據。
IS200VCMIH2BEE是雙面板。電路板的背面主要裝有電阻器和電容器。電路板的正面更復雜，包括連接器端口（包括兩個背板）、電感器/扼流圈、tp測試點和集成電路。連接的前面板有三個IONet端口以及一個公串行端口。它有一個復位按鈕、兩個固定螺釘和四組LED指示燈（一組3個、一組6個、一組8個和另一組3個）。面板上還標有公司徽標和主板編號。
>>>>>型號:IS200VCMIH2BEE 印刷電路板 單元數據高速公路
【英文介紹】
The IS200VCMIH2BEE is a printed circuit board (PCB) unit with data highway capabilities.
In PCB design, a data highway is a channel used to transmit high-speed digital signals, usually used to connect data transmission between multiple chips or modules. As a PCB unit, IS200VCMIH2BEE can provide high-speed, stable data transmission capability to meet the needs of a variety of complex applications.
Specifically, the IS200VCMIH2BEE printed circuit board unit may have the following characteristics:
High bandwidth: Supports high-speed data transmission to meet the requirements of high-bandwidth applications.
Low latency: It has low latency characteristics to ensure real-time data transmission.
Reliability: The use of high-quality materials and manufacturing processes to ensure the stability and reliability of data transmission.
Easy integration: Easy to integrate interfaces and connectors for easy connection with other components and modules.
Scalability: Can support a variety of interfaces and protocols to meet the needs of future expansion.
It is important to note that specific applications and features may vary depending on actual design and application requirements. Therefore, when using the IS200VCMIH2BEE printed circuit board unit, it is recommended to refer to the relevant technical documentation and data manual to understand its detailed function and application scope.
The IS200VCMIH2BEE was designed by General Electric as part of its Speedtronic Mark VI industrial gas turbine and steam turbine control system. This version of the Speedtronic system is commonly used in processing plants and power generation applications to control turbine speed during start-up, synchronize generators, provide turbine load control, and prevent load loss and turbine overspeed situations.
The IS200VCMIH2BEE is part of the Unit Data Highway (UDH). It is used as the main communication controller board. Data is read and transmitted to other boards via Fiber Optic Ethernet (IONet).
VCMI boards can be designed for simplex or TMR (Triple modular redundancy) applications. The simplex board will have one IONet port, while the TMR board will have three. The IS200VCMIH2BEE board is a TMR board.
IS200VCMIH2BEE uses SIFT voting (software-implemented fault tolerance). The data is broadcast to all remote racks in one packet. The VCMI board at these remote locations extracts the appropriate packet data.

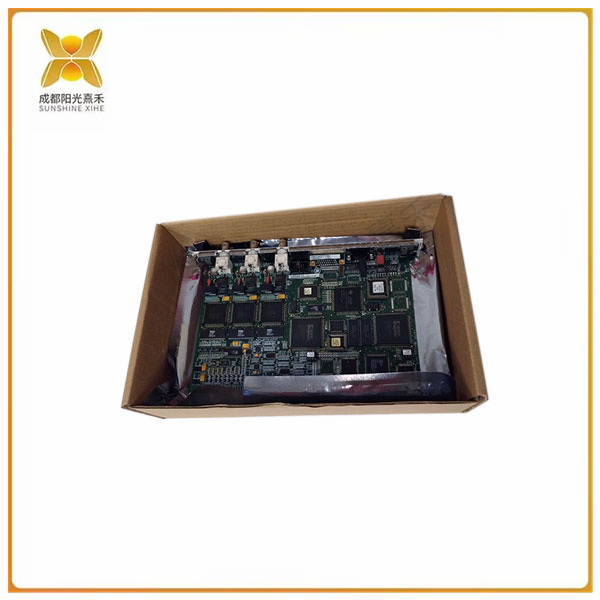

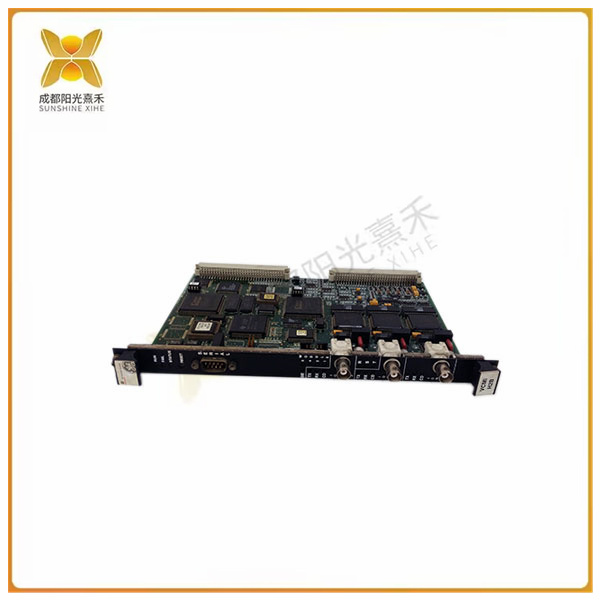

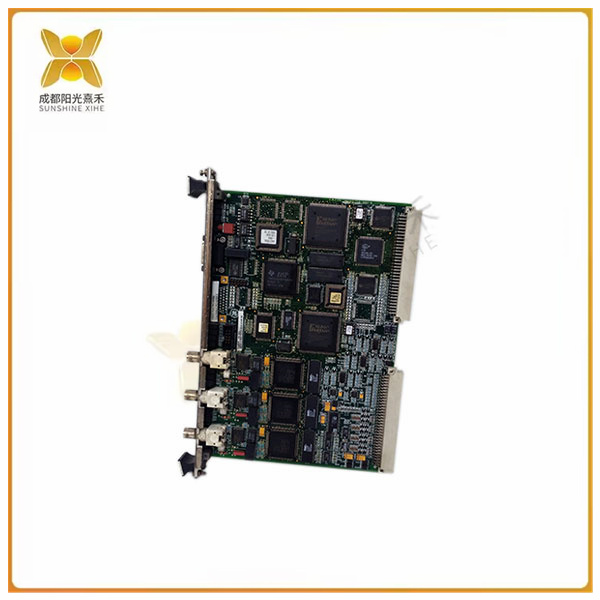

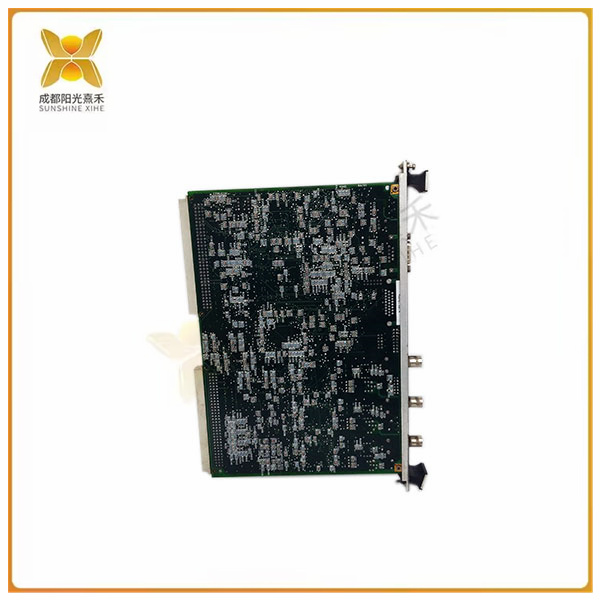

The IS200VCMIH2BEE is dual panel. The back of the circuit board is mainly equipped with resistors and capacitors. The front of the board is more complex and includes connector ports (including two backplanes), inductors/chokes, tp test points, and integrated circuits. The connected front panel has three IONet ports as well as a public serial port. It has a reset button, two setting screws, and four sets of LED indicators (one set of three, one set of six, one set of eight, and another set of three). The panel is also marked with the company logo and motherboard number.
