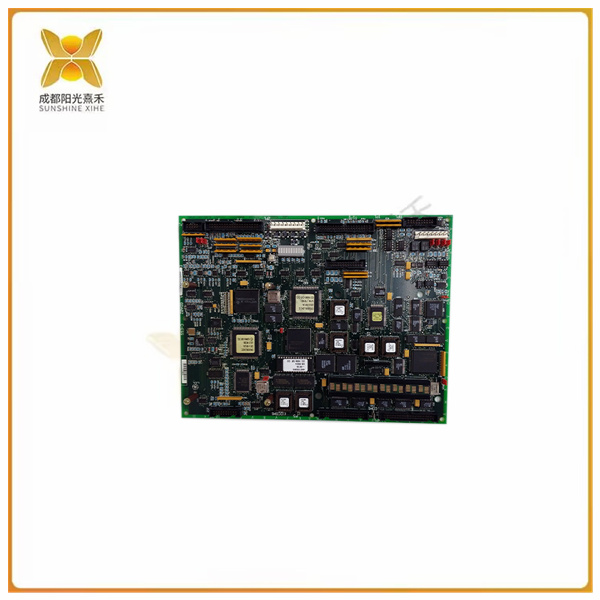

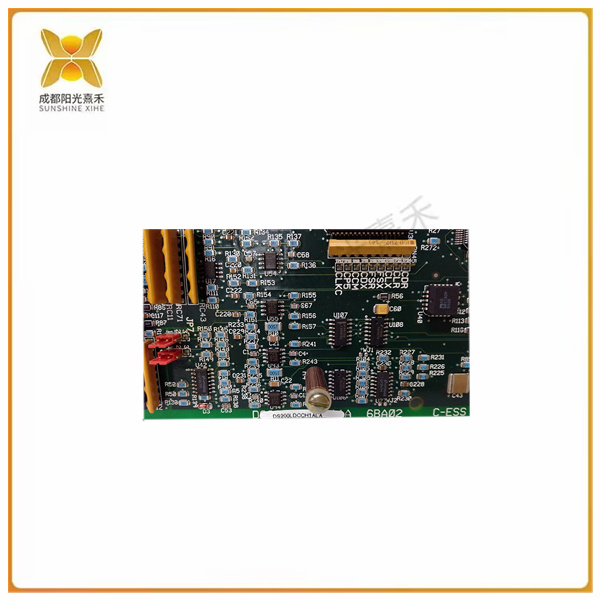

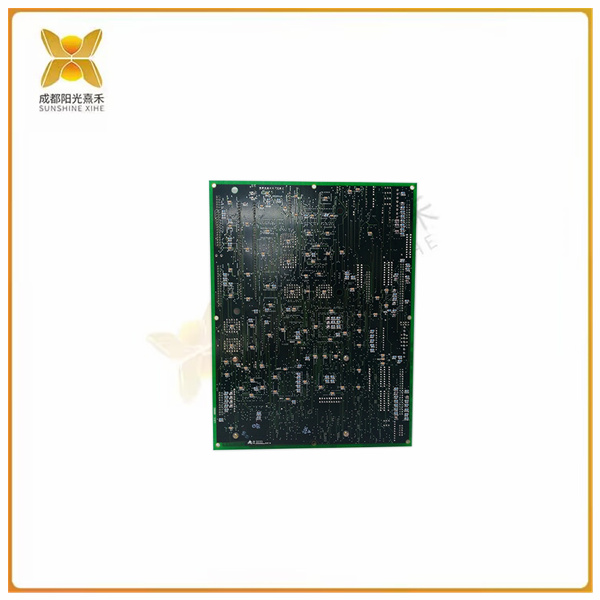

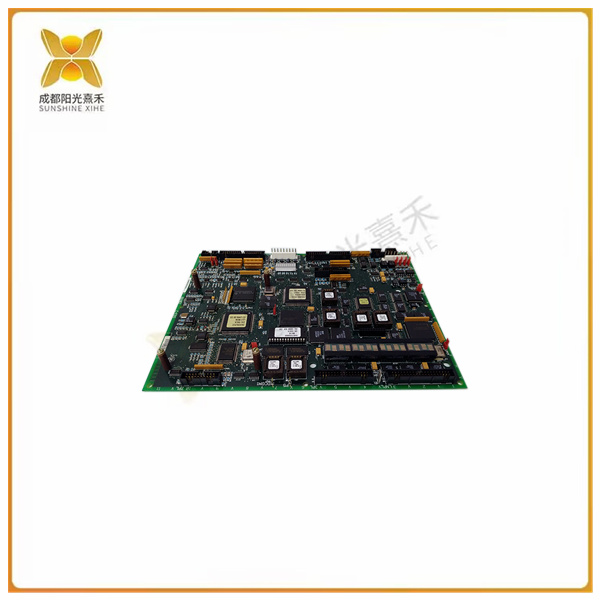

>>>>>型號:DS200LDCCH1ALA 驅動控制局域網通信板
【功能描述】
通用電氣將DS200LDCCH1ALA板制造為驅動器控制和局域網 （LAN） 通信卡。 該卡是作為Mark V系列驅動板的成員而開發的。DIRECTO-MATIC 2000 系列的變頻器被開發為將此卡安裝在其變頻器柜中。該板提供一系列功能，例如器件、電機和 I/O 控制功能。
該驅動控制和LAN通信板具有四個微處理器，用于過濾卡信號。發送到電路板的數字和模擬 I/O 由板載驅動控制處理器 （DCP） 接收和過濾。饋送到驅動器的 LAN 系統通過板載的 LAN 控制處理器 （LCP） 進行過濾。其余兩個處理器，即電機控制處理器 （MCP） 和協電機處理器 （CMP），相互協同工作。MCP 為數字 I/O 通信提供初始處理空間。如果信號所需的計算量超過MCP提供的空間功率，CMP將補充處理能力。該板配有一個可連接的字母數字鍵盤。
>>>>>型號:DS200LDCCH1ALA 驅動控制局域網通信板
【英文介紹】
Ge manufactured the DS200LDCCH1ALA board as a driver control and local area network (LAN) communication card. The card was developed as a member of the Mark V Series driver board. DIRECTO-MATIC 2000 series drives were developed to have this card installed in their converter cabinet. The board offers a range of features such as device, motor and I/O control functions.
The driver control and LAN communication board has four microprocessors for filtering card signals. The digital and analog I/O sent to the board is received and filtered by the onboard Drive Control Processor (DCP). The LAN system fed to the drive is filtered through an onboard LAN control processor (LCP). The remaining two processors, the Motor control processor (MCP) and the Comotor processor (CMP), work in tandem with each other. MCP provides initial processing space for digital I/O communications. If the amount of computation required for the signal exceeds the spatial power provided by the MCP, the CMP will supplement the processing power. The board is equipped with a connectable alphanumeric keyboard.
