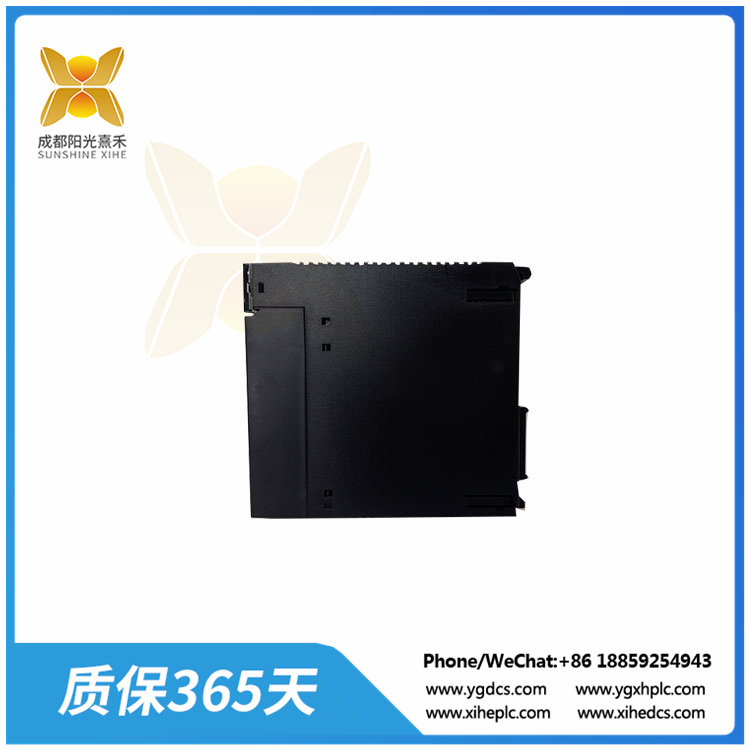

IC697CPM924RR | 中央處理器模塊 | 執行各種指令和進行數據處理
系列 ：90-70系列
零件編號;IC697CPM924RR
產品類型 ;CPU模塊
兼容性 ：GE Fanuc 90-70 PLC
時鐘速度 ：64兆赫茲
CPU模塊，全稱中央處理器模塊，是一種集成了CPU芯片和相關電路的組件，是計算機系統的核心部件。它的主要功能是執行各種指令和進行數據處理，通過時鐘信號驅動，根據指令集和算法完成計算任務。
CPU模塊從邏輯上可以劃分成三個主要部分：
控制單元：IC697CPM924這是整個CPU的指揮控制中心，負責協調整個電腦有序工作。它根據用戶預先編好的程序，依次從存儲器中取出各條指令，放在指令寄存器中，通過指令譯碼確定應該進行什么操作，然后通過操作控制器，按確定的時序，向相應的部件發出微操作控制信號。
運算單元：這是運算器的核心，可以執行算術運算(包括加減乘數等基本運算及其附加運算)和邏輯運算(包括移位、邏輯測試或兩個值比較)。運算單元接受控制單元的命令而進行動作，即運算單元所進行的全部操作都是由控制單元發出的控制信號來指揮的。
存儲單元：包括CPU片內緩存和寄存器組，是CPU中暫時存放數據的地方，里面保存著那些等待處理的數據或已經處理過的數據。CPU訪問寄存器所用的時間要比訪問內存的時間短，因此采用寄存器可以減少CPU訪問內存的次數，從而提高CPU的工作速度。
Series: 90-70 series
Part number; IC697CPM924
Product type; CPU module
Compatibility: GE Fanuc 90-70 PLC
Clock speed: 64 MHZ
CPU module, the full name of the central processor module, is a component that integrates the CPU chip and related circuits, and is the core component of the computer system. Its main function is to execute various instructions and data processing, driven by the clock signal, according to the instruction set and algorithm to complete the calculation task.
The CPU module can be logically divided into three main parts:
Control unit: IC697CPM924 This is the command and control center of the entire CPU, responsible for coordinating the orderly work of the entire computer. According to the user's pre-programmed program, it takes out each instruction from the memory in turn, puts it in the instruction register, determines what operation should be carried out through the instruction decoding, and then sends a microoperation control signal to the corresponding component by operating the controller according to the determined timing.
Arithmetic unit: This is the core of the arithmetic unit and can perform arithmetic operations (including basic operations such as addition and subtraction multipliers and their additional operations) and logical operations (including shifts, logic tests, or comparisons between two values). The operation unit accepts the command of the control unit and acts, that is, all the operations carried out by the operation unit are commanded by the control signal issued by the control unit.
Storage unit: IC697CPM924 includes CPU on-chip cache and register group, which is the temporary storage of data in the CPU, storing the data waiting to be processed or the data that has been processed. The time used by the CPU to access the register is shorter than the time used to access the memory, so the use of registers can reduce the number of times the CPU accesses the memory, thereby improving the CPU speed.
