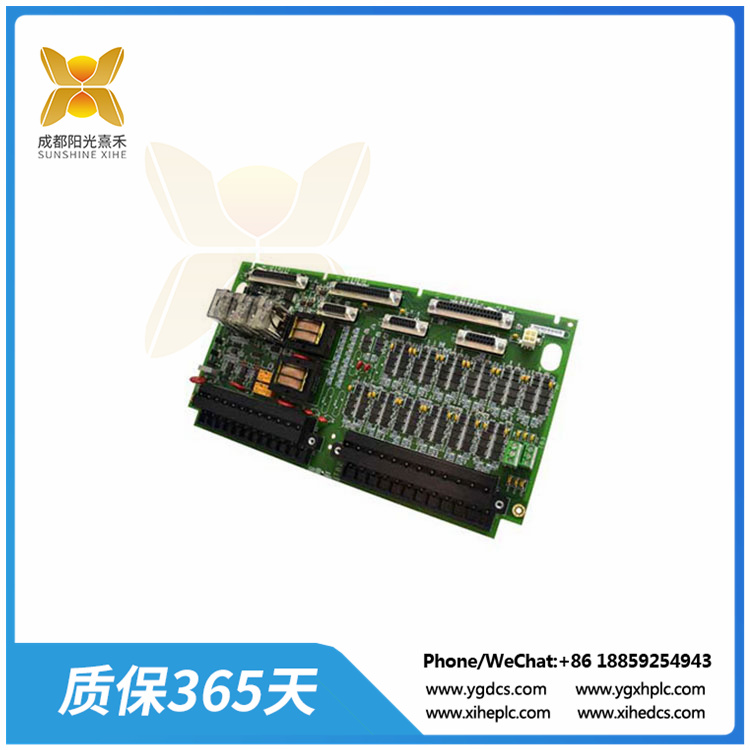

IS220PDIOH1A | I/O 包模塊 | 用于工業渦輪機控制
型號：IS220PDIOH1A
輸入電壓范圍:12-48VDC
輸出電壓范圍:5VDC。
輸出電流:最大10A。
效率:大于90%。
尺寸:170mm x105mmx32mm.
重量:約120g。
運行溫度:-20°C至+50°C。
存儲溫度:-40°C至+70°C。
環境濕度:5%至95%相對濕度(無凝露)
產品描述
該IS220PDIOH1A是用于 Mark VIe Speedtronic 系統的 I/O 包模塊。Mark VIe 是通用電氣以 Speedtronic 的名義發布的后來的系統之一。自 1960 年代后期通用電氣發布 Mark I 以來，Speedtronic 系統一直用于工業渦輪機控制。
IS220PDIOH1A有兩個以太網端口和自己的本地處理器。它可以與IS200TDBSH2A和IS200TDBTH2A的端子板結合使用。這些 I/O 電池組/端子板組合已獲準用于危險場所。
該IS220PDIOH1A的最小額定電壓為 27.4 VDC。其額定值為 28.0 VDC。該裝置及其相關接線板具有必須遵循的特定現場接線連接說明，包括電線尺寸和螺釘扭矩。此信息可在與本機相關的 GE 手冊中找到，例如 GEH-6725。
IS220PDIOH1A 的前面板包括用于兩個以太網端口的 LED 指示燈、用于設備的電源以及一個“attn”LED。其他 LED 與繼電器連接有關。
有關此 I/O 模塊或相關端子板的更多信息，請參閱通用電氣的原始文檔。手冊、數據表和用戶指南將提供有關安裝、維護和處理的詳細規范，在從 AX Control 拆箱之前應查看這些規范。
Model: IS220PDIOH1A
Input voltage range :12-48VDC
Output voltage range :5VDC.
Output current: Max. 10A.
Efficiency: greater than 90%.
Size :170mm x105mmx32mm.
Weight: About 120g.
Operating temperature :-20°C to +50°C.
Storage temperature :-40°C to +70°C.
Ambient humidity :5% to 95% relative humidity (no condensation)
Product description
The IS220PDIOH1A is an I/O package module for the Mark VIe Speedtronic system. Mark VIe was one of the later systems released by General Electric under the name Speedtronic. Speedtronic systems have been used for industrial turbine control since the release of the Mark I by General Electric in the late 1960s.
The IS220PDIOH1A has two Ethernet ports and its own native processor. It can be used in combination with IS200TDBSH2A and IS200TDBTH2A terminal boards. These I/O battery pack/terminal board combinations have been approved for use in hazardous locations.
The IS220PDIOH1A has a minimum rated voltage of 27.4 VDC. Its rating is 28.0 VDC. The device and its associated patch panels have specific field wiring connection instructions that must be followed, including wire size and screw torque. This information can be found in the GE manual associated with the unit, such as the GEH-6725.
The front panel of the IS220PDIOH1A includes LED indicators for the two Ethernet ports, power for the device, and an "attn" LED. Other leds are related to relay connections.
For more information about this I/O module or related terminal boards, please refer to GE's original documentation. Manuals, data sheets, and user guides will provide detailed specifications for installation, maintenance, and handling, which should be reviewed prior to unpacking from AX Control.
