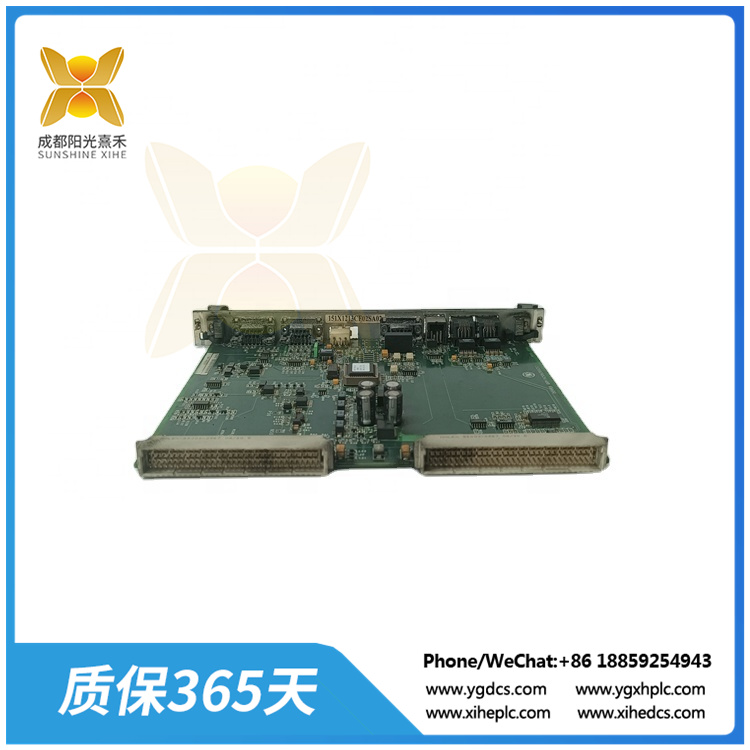

IS200TVBAH1AAA  |   振動端子板   |  確保準確可靠的數據采集

　型號：IS200TVBAH1AAA

　　輸入電阻(負載)30 MΩ(DC)，最小值

　　斷電電阻 30 KQ (DC)，典型

　　共模抑制 -80 dB(DC-100Hz)

　　典型

　　共模范圍 -12V 至 +12V 峰值

　　引腳間隔離 200KQ，典型

　　IS200TVBAH1AAA 振動端子板

　　產品概述

　　IS200T系列VBAH1AAA 振動端子板是通用電氣(GE)為其 MarkVe 分布式控制系統(DCS) 制造的專用組件。它用作連接

　　和處理來自傳感器的振動信號的接口，能夠在各種工業應用中監測和分析機械的健康狀況。

　　主要特點

　　振動信號處理:便于將來自傳感器的振動信號轉換為數字信號，以便由控制系統進行處理和解釋

　　傳感器接口:提供用于連接振動傳感器的專用接口，例如加速度計和接訴傳感器，監控機械運行狀況并檢測潛在故障,

　　信號調理:集成信號調理電路以放大，濾波器并線性化振動信號，確保準確可靠的數據采集

　　高分辨率和高精度:在振動信號轉換方面提供高分辨率和高精度，能夠精 確分析機械的健康狀況。

　　故障檢測和診斷:提供故障檢測和診斷功能，以識別和排除連接的振動傳感器或信號調理電路的潛在問題

　　應用

　　IS200TVBAH1AAA振動端子板可用于各種工業控制系統，特別是涉及機械健康監測和預測性維護的系統。

　　Model: IS200TVBAH1AAA

　　Input resistance (load)30 MΩ(DC), minimum value

　　Power off resistance 30 KQ (DC), typical

　　Common mode rejection -80 dB(DC-100Hz)

　　model

　　Common model range -12V to +12V peak

　　Pin to pin isolation 200KQ, typical

　　IS200TVBAH1AAA Vibration terminal board

　　Product overview

　　The IS200T Series VBAH1AAA vibration terminal board is a special component manufactured by General Electric (GE) for its MarkVe Distributed control System (DCS). It serves as a connection

　　And interfaces that process vibration signals from sensors, enabling monitoring and analysis of the health of machinery in a variety of industrial applications.

　　Main feature

　　Vibration signal processing: It is easy to convert vibration signals from sensors into digital signals for processing and interpretation by the control system

　　Sensor interface: Provides a dedicated interface for connecting vibration sensors, such as accelerometers and contact sensors, to monitor mechanical operation and detect potential failures,

　　Signal conditioning: Integrated signal conditioning circuits amplify, filter and linearize vibration signals to ensure accurate and reliable data acquisition

　　High resolution and precision: provides high resolution and precision in vibration signal conversion, enabling precise analysis of the health of the machine.

　　Fault detection and diagnosis: Provides fault detection and diagnosis capabilities to identify and troubleshoot potential problems with connected vibration sensors or signal conditioning circuits

　　Apply

　　The IS200TVBAH1AAA vibrating terminal board can be used in various industrial control systems, especially those involving mechanical health monitoring and predictive maintenance.
