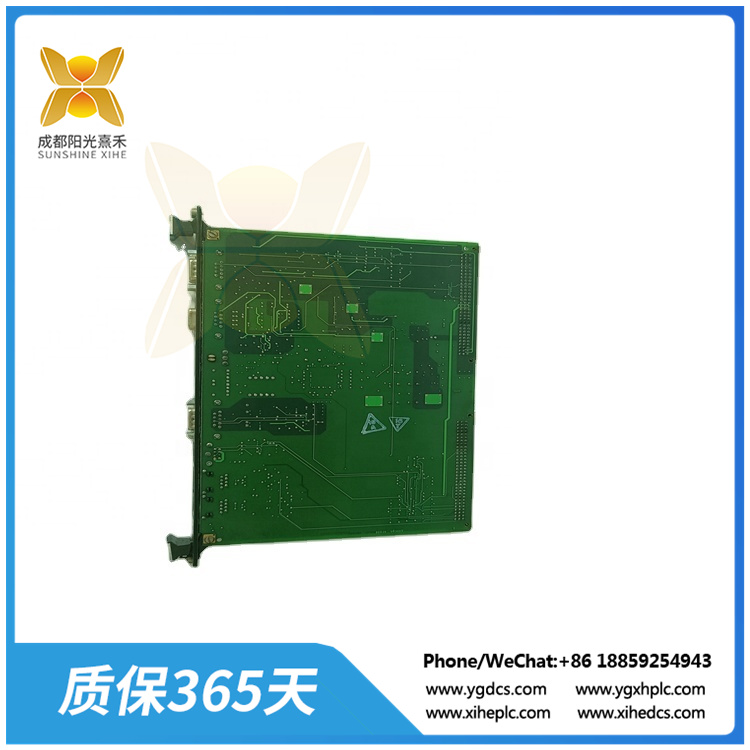

IS200JPDHG1AAA | I/O | 有助于可靠有效地處理電壓監測
模型:IS200JPDHG1AAA
型號| 類型高密度配電
安裝 | DIN導軌捕捉器
額定電值24/28 VDC
6 pin插頭連接器數量2
溫度范圍-30至65°C
功率測量單元直流電壓
產品描述
IS200JPDHG1AAA型號作為高密度配電卡銷售，通常用于Mark VI系列。當設備運行時，它可以發送28伏的直流電到多達三個以太網交換機以及24個Mark VIe I/O組。如果需要，您可以購買更多的JPDH包，然后將它們連接在一起，為I/O包提供更大的功率。請注意，當連接更多的JPDH卡在一起時，它們必須以菊花鏈的方式連接。
主板的物理部件是29個母腳插頭連接器。其中29個為6針連接器，其余27個為2針連接器;24個連接器分為三排，每排8個連接器。這些行中的連接器被標記為JT1到JT8、JR1到JR8和JS1到JS8。這些線路是為單個I/O數據包提供主要電源的饋源。I/O分組電路將包括一個溫度系數熔斷器裝置，它將用于保護分支電路并提供一個正溫度熔斷器。
IS200JPDHG1AAA板可用于許多危險場所。該板可用于ATEX 2區IIC組，I類2區A至D組和I類2區IIC組。該板也可以在非危險場所使用，ULE207685認證代碼適用于非危險場所使用。
安裝
接線配置:IS200JPDHG1AAA電壓檢測和斷路器繼電器接線:將電壓檢測電路和必要的斷路器繼電器連接小心地連接到指定的I/O端子TB1上。這種設置有助于可靠有效地處理電壓監測和系統跳閘激活。
被動脈沖速率拾取器:被動脈沖速率拾取器連接到TB2，在感應齒輪和精確測量渦輪轉速方面發揮關鍵作用。
端子及規格:I/O端子:每個端子(TB1和TB2)均用2顆螺釘固定，保證接線穩定。這些模塊設計有24個端子，能夠接受高達#12 AWG的電線，實現堅固高效的電線連接。
屏蔽端排:IS200JPDHG1AAA屏蔽端排與每個端子相鄰，并牢固地連接到機箱接地，提供額外的保護層，防止?jié)撛诟蓴_，確保信號完整性和系統可靠性。
這種精心的布線配置，將特定組件連接到指定的端子，以及屏蔽的端帶，確保了配線板的安全有序安裝。這種謹慎的安裝程序?qū)τ跍u輪系統內的最佳功能和性能至關重要。
Model: IS200JPDHG1AAA
Model Type High-density power distribution
Install DIN rail catchers
Rated electrical value 24/28 VDC
6 pin plug Number of connectors 2
Temperature range -30 to 65 °C
Power Measurement unit DC voltage
Product description
The IS200JPDHG1AAA model is marketed as a high density power distribution card and is commonly used in the Mark VI series. When the unit is operating, it can send 28 volts of direct current to up to three Ethernet switches as well as 24 Mark VIe I/O groups. If needed, you can buy more JPDH packages and then connect them together to provide more power to the I/O packages. Note that when connecting more JPDH cards together, they must be connected in a Daisy chain arrangement.
The physical components of the board are 29 female pin plug connectors. 29 of them are 6-pin connectors, and the remaining 27 connectors are 2-pin connectors; The 24 connectors are divided into three rows of eight connectors each. The connectors in these rows are labeled JT1 to JT8, JR1 to JR8, and JS1 to JS8. These lines are the feeds that provide the main power to individual I/O packets. The I/O packet circuit will include a temperature coefficient fuse device, which will be used to protect the branch circuit and provide a positive temperature fuse.
The IS200JPDHG1AAA board can be used in many hazardous places. The main locations where this board can be used are ATEX Zone 2 IIC Group, Class I Zone 2 A to D Group, and Class I Zone 2 IIC Group. The board can also be used in non-hazardous places, ULE207685 certification code for use in non-hazardous places.
Install
Wiring Configuration: IS200JPDHG1AAA Voltage Detection and Circuit Breaker Relay wiring: The voltage detection circuit and the necessary circuit breaker relay connections are carefully connected to the I/O terminal designated TB1. This setting helps to reliably and efficiently handle voltage monitoring and system trip activation.
Passive pulse rate pickers: The passive pulse rate pickers are connected to the TB2 and play a key role in sensing the toothed wheels and accurately measuring turbine speed.
Terminals and specifications: I/O terminals: Each terminal (TB1 and TB2) is securely secured using two screws to ensure stability and a stable connection. These modules are designed with 24 terminals and are capable of accepting wires up to #12 AWG for robust and efficient wire connections.
Shielded end bar: The IS200JPDHG1AAA shielded end bar is adjacent to each terminal and firmly connected to the chassis ground, providing an additional layer of protection against potential interference and ensuring signal integrity and system reliability.
This careful wiring configuration, the connection of specific components to specified terminals, and the shielded end strips ensure the safe and orderly installation of the patch boards. This careful installation procedure is essential for optimal function and performance within the turbine system.
