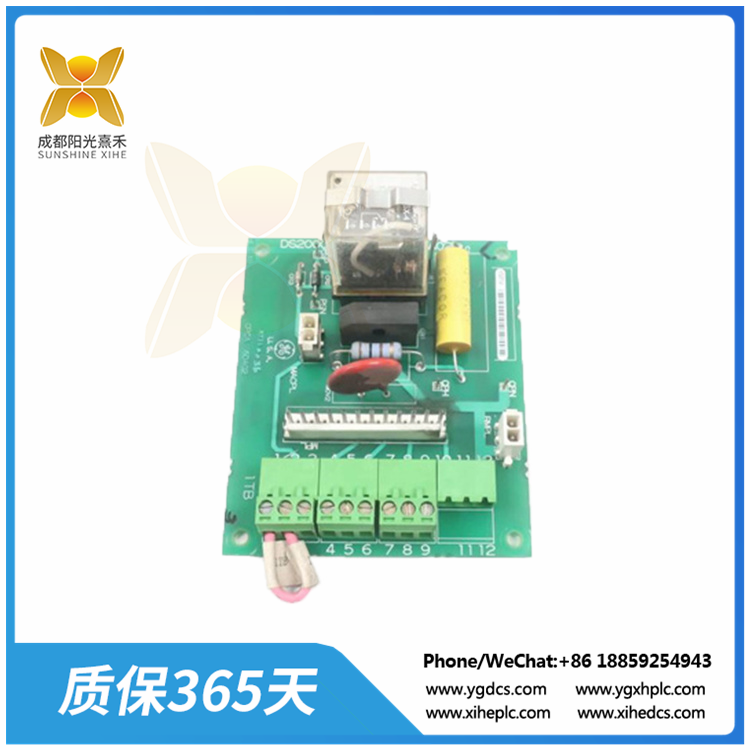

DS2020PDMAG6 | DS215DMCBG1AZZ03A | 配電模塊
產品型號： DS2020PDMAG6
產品類型：配電模塊
成色：全新/非全新
質保：一年
制造國：美國
系列：Mark VI
可用性：現貨
DS2020PDMAG6 是通用電氣制造的配電模塊，是 Mark V 的一部分，用于燃氣輪機控制管理系統。配電模塊 (PDM) 為 Mark VI 系統提供 125 V 直流和 115 V 交流(或 230 V 交流)的電壓，適用于所有機架和終端板。在那些使用遠程 I/O 機柜的系統中，控制柜還有第二個版本的 PDM。
電源濾波器用于使用客戶的 125 V de 和 115/230 V 交流電源進入 PDM。一個或兩個輸出 125 V DC 的 AC/DC 轉換器通過電纜連接到交流電源。為了創建備用電源，然后將該去電壓電纜接回連接到主直流電源的 PDM 和二極管。VME機架和終端板接收此電源分配。AC/DC轉換器可以處理115 V或230 V AC。對于在 115 V 或 230 V 下運行，變壓器電纜必須插入 JTX1 或 JTX2。PDM 用于收集診斷數據，然后將其鏈接到安裝在 DIN 導軌上的端子板。之后，電纜穿過 J301 到達機架“R”中的 VCMI。熔斷并電纜連接到繼電器端子板的是交流饋電 J17–20。接口 (I/O) 機柜、保護模塊、TRPG、TREG 和 TRLY 都具有熔斷和接線的 125 V 直流饋線。PDM 通過控制功率濾波器 (CPF) 提供，可降低 EMI 噪聲，以確保向電路板提供無噪聲電源。如下圖所示，CPF 機架可以存儲兩個或三個 Corcom 30 A 濾波器模塊。在熔斷并連接到 TBCI 板之前，觸點輸入端的電源首先通過 TB2、電阻 R3 和 R4 以及 TB2。觸點輸入采用125 V dc激勵電壓。
WOC 擁有最大的 Speedtronic Mark V 更換備件庫存，我們可以在 12 個月的保修期內維修您的故障零件。WORLD OF CONTROLS還可以提供未使用和重建的備份，保修期長達24個月。我們的專家團隊全天候為您提供支持。我們WOC的銷售團隊很樂意協助您滿足任何自動化要求。請通過電話或電子郵件與我們的工作人員聯系，了解任何零件和維修的價格和可用性。
常見問題解答
什么是 GE Mark V DS2020PDMAG6?
DS2020PDMAG6 是一款配電模塊，可為所有機架和終端板的 Mark VI 系統提供 125 V 直流和 115 V 交流電。
產品是真正的OEM單位嗎?
這些物品已通過WOC質量控制認證，是通過OEM或獨立第三方渠道獲得的正品OEM單位。
DS2020PDMAG6 | DS215DMCBG1AZZ03A | Power distribution module
Product model: DS2020PDMAG6
Product type: Power distribution module
Finish: New/not new
Warranty: One year
Country of Manufacture: USA
Series: Mark VI
Availability: In stock
The DS2020PDMAG6 is a power distribution module manufactured by General Electric as part of the Mark V for gas turbine control management systems. The Power Distribution Module (PDM) provides 125 V DC and 115 V AC (or 230 V AC) voltages to the Mark VI system for all racks and end boards. In those systems that use remote I/O cabinets, the control cabinet also has a second version of PDM.
The power filter is used to enter the PDM using the customer's 125 V de and 115/230 V AC power supplies. One or two AC/DC converters with 125 V DC output are connected to the AC power supply via cable. To create a backup power supply, then connect the devoltage cable back to the PDM and diode connected to the main DC power supply. The VME rack and terminal board receive this power distribution. AC/DC converters can handle either 115 V or 230 V AC. For operation at 115 V or 230 V, the transformer cable must be plugged into JTX1 or JTX2. The PDM is used to collect diagnostic data, which is then linked to the terminal plate mounted on the DIN rail. After that, the cable passes through J301 to the VCMI in rack "R". The fuse and cable connected to the relay terminal board is AC feed J17-20. Interface (I/O) Cabinets, protection modules, TRPG, TREG, and TRLY all have fused and wired 125 V DC feeders. PDM is provided via a control power filter (CPF) that reduces EMI noise to ensure a noise-free power supply to the board. As shown in the figure below, the CPF rack can store two or three Corcom 30 A filter modules. Before fusing and connecting to the TBCI board, the power supply at the contact input first passes through TB2, resistors R3 and R4, and TB2. The contact input uses 125 V dc excitation voltage.
WOC has the largest stock of replacement parts for Speedtronic Mark V and we can repair your broken parts under a 12-month warranty. WORLD OF CONTROLS can also provide unused and rebuilt backups with a warranty of up to 24 months. Our team of experts support you around the clock. Our WOC sales team will be happy to assist you with any automation requirements. Please contact our staff by phone or email for pricing and availability of any parts and repairs.
Frequently Asked Questions
What is GE Mark V DS2020PDMAG6?
The DS2020PDMAG6 is a power distribution module that provides 125 V DC and 115 V AC power to Mark VI systems in all racks and terminal boards.
Is the product a true OEM unit?
These items have been WOC quality control certified and are genuine OEM units obtained through OEM or independent third party channels.
