IS200TRLYH1D |5SHY5045L0020|燃?xì)廨啓C(jī)控制單元|

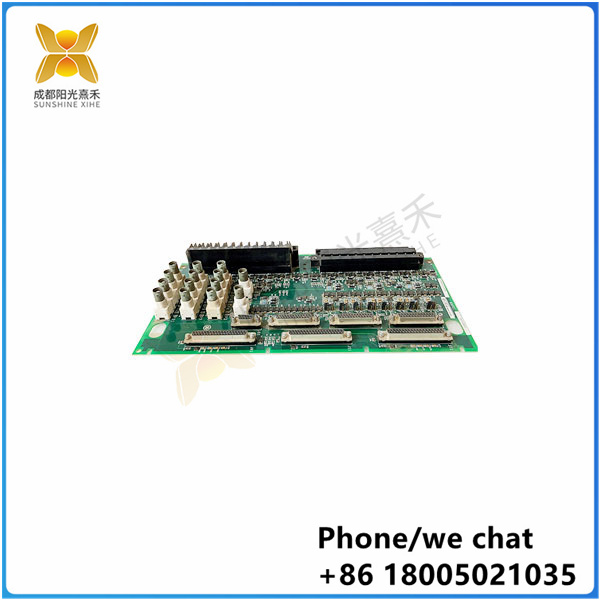

IS200TRLYH1D 是由通用電氣（General Electric, GE）生產的一款電路板，屬于燃?xì)廨啓C(jī)控制系統中的 VIe 系列產品。這個板卡是燃?xì)廨啓C(jī)控制單元的一個關鍵組件，主要功能是接收和處理來自各種傳感器的信號，根據預設的控制邏輯對燃?xì)廨啓C(jī)進行精確的控制和調節 。

該電路板具有以下特點：

集成了多種電子元件，包括集成電路、電阻器、電容器、扼流圈等 。

配備了多個連接器，例如 37 針連接器，用于與其他電路板或設備進行連接和數據傳輸 。

設計用于安裝在變頻器的板柜中，具有專用的硬件組件和規格 。

可能與 Mark VIe 或 Mark VleS 控制系統中的后備保護功能相關聯，通過接線到繼電器板形成保護 。

IS200TRLYH1D 板卡作為具有電磁完整性傳感的繼電器輸出端子板，具有六個插入式磁繼電器。這些電路是 C 型觸點輸出，通過熔斷和供電來驅動外部螺線管。壞的螺線管可以通過在每個繼電器電路上提供的特殊反饋來檢測。該板卡與 TRLYH1B 板類似，但只有六個繼電器，專為 24/125V 直流應用而設計。繼電器不能配置為干接點使用，輸入繼電器線圈監控已被移除，通常由 VCRC 或 VCCC 單板控制，支持 TMR（三模冗余）或單工應用程序 。

此外，該板卡的規格包括：

額定電壓：125V DC

尺寸：17.8 厘米寬 x 33.02 厘米高

工作溫度范圍：-30 至 +65°C

電源消耗：4W

內部操作系統：QNX

配置軟件：ToolboxST

The IS200TRLYH1D is a circuit board manufactured by General Electric (GE) as part of the VIe family of gas turbine control systems. This board is a key component of the gas turbine control unit, the main function is to receive and process signals from various sensors, according to the preset control logic of the gas turbine precise control and regulation.

The board has the following features:

It integrates a variety of electronic components, including integrated circuits, resistors, capacitors, chokes, etc.

It is equipped with multiple connectors, such as 37-pin connectors, for connection and data transfer with other boards or devices.

Designed to be installed in the board cabinet of the inverter, with dedicated hardware components and specifications.

May be associated with the backup protection function in the Mark VIe or Mark VleS control system, which is protected by wiring to the relay board.

The IS200TRLYH1D board is a relay output terminal board with electromagnetic integrity sensing with six plug-in magnetic relays. These circuits are C-contact outputs that drive the external solenoid by fusing and supplying power. Bad solenoids can be detected by special feedback provided on each relay circuit. The board is similar to the TRLYH1B board, but has only six relays and is designed for 24/125V DC applications. The relay cannot be configured for dry contact use, the input relay coil monitoring has been removed and is usually controlled by a VCRC or VCCC board, supporting TMR (three-mode redundancy) or simplex applications.

In addition, the specifications of the board include:

Rated voltage: 125V DC

Dimensions: 17.8 cm wide x 33.02 cm high

Operating temperature range: -30 to +65°C

Power consumption: 4W

Internal operating system: QNX

Configuration software: ToolboxST
