>>>>>型號:IS220PPROS1B 渦輪機專用的I/O模塊 提供直接接口

【功能描述】

IS220PPROH1A是渦輪機專用的I/O模塊。它旨在為特定的渦輪機現場設備提供直接接口。這種設置消除或減少了以前連接到現場設備所需的大部分儀器，還提高了運行可靠性并減少了長期維護。該IS220PPROH1A通常與TREAH_A端子板配合使用，用于航改型渦輪機緊急跳閘應用。該組件可以連接到柵欄式或箱式接線端子。該IS220PPROH1A具有電壓檢測的現場接線限制，將電纜長度限制為1,000英尺的18 AWG接線。需要注意的是，將BPPB P-Pack與BPPC P-Pack交換時，無法自動重新配置IS220PPROH1A。

IS220PPROH1A內置一個前面板，上面標有組件ID號和幾個LED指示燈。它們成對放置在前面板上。第一對標記為PWR/ATTN，第二對標記為L(zhǎng)INK/TxRx和ENET 1，第三對標記為L(zhǎng)INK/TxRx和ENET2。最后一個組件位于面板底部;這被標記為IR端口。

IS220PPROH1A接受三個速度信號。這包括減速、加速和超速。該組件還具有實現超速的硬件。該套件通過一組全面的反饋信號監控所選脫扣板的狀態和運行。該套件支持TMR和單工備份保護。

該IS220PPROH1A內置高速處理器和兩個完全獨立的10/100以太網端口。該電池組具有硬件復位電路和看門狗定時器。溫度由內部傳感器監控。

 >>>>>型號:IS220PPROS1B 渦輪機專用的I/O模塊 提供直接接口

【英文介紹】

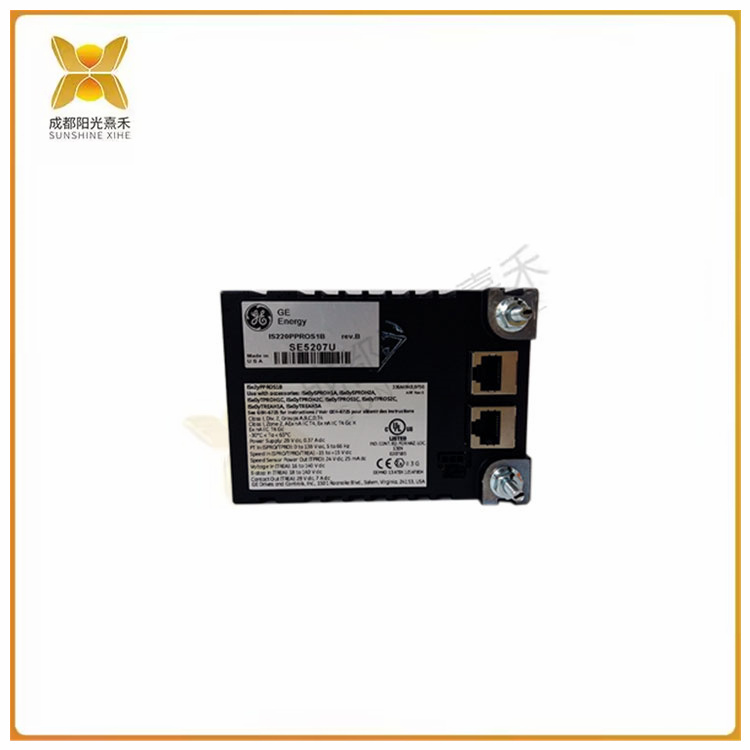

The gas turbine control model IS220PPROS1B is from the General Electric Speedtronic Fanuc Mark VIe series PROFIBUS DPM master station gateway input/output module. This unit is usually paired with the Accessory ID terminal board IS200SPIDG1A. This allows the PPRF unit to be connected and installed in a normal or non-hazardous location.

The rated power supply range is 27.4-28.6V dc.

At AX Control Inc., we buy, sell, and repair many obsolete and/or damaged models that have been discontinued by their original manufacturers, so your company's factory floor can be back up and running quickly and inexpensively. For any other product specifications, please refer to the manual included with this part.

>>>>>型號:IS220PPROS1B 渦輪機專用的I/O模塊 提供直接接口
