>>>>>型號:IS200DTAIH1ACC 印刷電路板 渦輪機控制部件

【功能描述】

IS200DTAIH1ACC印刷電路板由GE工業系統公司制造，用于其Mark VI Speedtronic系列自動渦輪機控制和渦輪機控制部件。鑒于該特定PCB作為變壓器組件板的預期功能，已通過包含單一功能修訂版進行了修改，評級為“A”級。此A級功能修訂版被歸類為功能修訂版，因為它極大地增強了該DBIA縮寫板的性能規格和整體功能，并且可能會略微改變產品的尺寸。IS200DTAIH1ACC是DBIA的縮寫，因為在許多行業圈子中，它通常被簡單地稱為DBIA制造商指定的功能同義詞。

硬件提示和規格

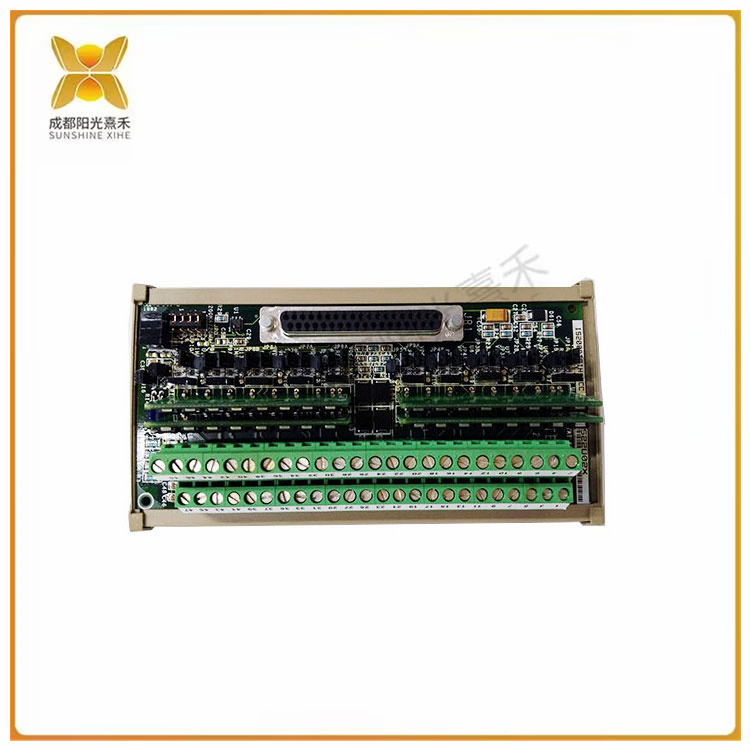

IS200DTAIH1ACC印刷電路板的基板上貼有許多獨特的硬件組件，其功能是變壓器組件板。網上似乎相對缺乏制造商發行的IS200DBIA原始說明材料，因此以下大部分信息將由我們熟練的服務技術人員對PCB進行徹底、知識淵博的目視檢查來收集。在硬件組件方面，IS200DTAIH1ACC Transformer組件板的面板由一系列電容器和電容器插槽組成，標記為C1至C11。雖然IS200DTAIH1ACC基板上確實存在11個用于放置電容器的插槽，但該DBIA PCB的電路板組件配置中僅包含插槽C2、C3、C6、C7和C9上的電容器。IS200DTAIH1ACC板組件中包含兩個小晶體管，標記為Q3和Q5。此Mark VI Speedtronic系列型號的基板上有兩個LED指示燈;標記為“ON”和“OFF”，并帶有標準命名法DS1和DS2。IS200DTAIH1ACC板的組件中包含一系列二極管，用于電流方向。這些二極管包括兩個相當大的電路，位于印刷電路板的右上角;標有警告“RTV完全頂部和底部”。在目視檢查IS200DTAIH1ACC PCB時，其他各種工廠印刷的標簽是顯而易見的，包括：

DBIAG_A

6豪1

IS200DTAIH1ACC部件號

DCP（E5和E6）

TPL和PL

PC和PE標簽

NCS4W條形碼標簽

在這塊板的背面;￥1800 94V-0 CTI 4

>>>>>型號:IS200DTAIH1ACC 印刷電路板 渦輪機控制部件

【英文介紹】

The IS200DTAIH1ACC printed circuit board is manufactured by GE Industrial Systems for its Mark VI Speedtronic family of automatic turbine controls and turbine control components. Given the intended function of this particular PCB as A transformer assembly board, it has been modified by including a single function revision, rated "A". This Class A Feature revision is classified as a feature revision because it greatly enhances the performance specifications and overall functionality of this DBIA abbreviated board and may slightly change the size of the product. IS200DTAIH1ACC is an abbreviation for DBIA because in many industry circles it is often referred to simply as a functional synonym for DBIA as specified by the manufacturer.

Hardware tips and specifications

There are many unique hardware components attached to the substrate of the IS200DTAIH1ACC printed circuit board, which functions as a transformer assembly board. There seems to be a relative lack of manufacturer-issued IS200DBIA original instruction material online, so much of the information below will be gleaned by a thorough, knowledgeable visual inspection of the PCB by our skilled service technicians. In terms of hardware components, the panel of the IS200DTAIH1ACC Transformer component board consists of a series of capacitors and capacitor slots, labeled C1 to C11. While 11 slots for capacitors do exist on the IS200DTAIH1ACC substrate, the board assembly configuration for this DBIA PCB only contains capacitors on slots C2, C3, C6, C7, and C9. The IS200DTAIH1ACC board assembly contains two small transistors, labeled Q3 and Q5. This Mark VI Speedtronic series model has two LED indicators on the substrate; Labeled "ON" and "OFF" with standard nomenclature DS1 and DS2. The components of the IS200DTAIH1ACC board contain a series of diodes for current direction. These diodes consist of two fairly large circuits located in the upper right corner of the printed circuit board; Marked with warning "RTV full top and bottom". A variety of other factory-printed labels are evident when visually inspecting the IS200DTAIH1ACC PCB, including:

DBIAG_A

6 Champions 1

IS200DTAIH1ACC Component number

DCP (E5 and E6)

TPL and PL

PC and PE labels

NCS4W barcode label

On the back of this board; ￥1800 94V-0 CTI 4
