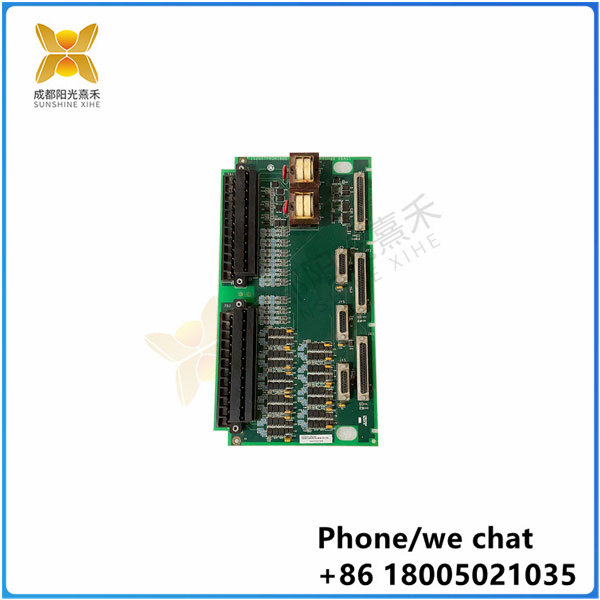

IS200TBAIH2C |5SHY5045L0020|模擬輸入/輸出端子板|

IS200TBAIH2C 是通用電氣（GE）為 Mark VI 系統制造的一種模擬輸入/輸出端子板，屬于 Mark VI 系列，用于 GE Speedtronic 燃?xì)?蒸汽輪機控制系統 。

這個端子板支持 10 個模擬輸入和 2 個模擬輸出，模擬輸出可以設置為 0-20 mA 或 0-200 mA 電流 。它具有完全獨立的控制模塊、IONets 和電源，并且設計用于三重模塊化冗余（TMR）架構 。

該板卡具備多功能性，提供多種類型的模擬輸入和輸出，包括兩線制、三線制和四線制變送器模擬輸入，以及外部供電變送器模擬輸入 。

它還具備高精確度處理能力，確保信號的準確度和可靠性，并且輸入信號可以靈活配置為電壓或電流信號以適應不同的應用需求 。

IS200TBAIH2C 設計用于與 GE Mark VIeS 控制器組件配合使用，具有安全認證，確保了其在工業應用中的安全性 。

此外，板卡內置了三個 DC-37 針電纜連接器，分別為 JR1、JS1 和 JT1，在 TMR 應用中，輸入信號會扇形分布到 R/S/T 控制的三個連接器 。

端子板還內置了兩個接線端子（TB1 和 TB2），它們是柵欄式端子塊，可以從板上拔下進行維護 。

在安裝方面，IS200TBAIH2C 允許將輸入和輸出線直接連接到端子板上的兩個 I/O 端子塊，每個端子塊都有 24 個端子，可以接受最多 #12 AWG 的電線 。

板卡還包含高抑制電路，以防止高頻噪聲和浪涌，保護信號的完整性

The IS200TBAIH2C is an analog input/output terminal board manufactured by General Electric (GE) for the Mark VI system, part of the Mark VI series,

or GE Speedtronic gas/steam turbine control systems. This terminal board supports 10 analog inputs and 2 analog outputs, which can be set to 0-20 mA

or 0-200 mA current. It has a fully independent control module, IONets and power supply, and is designed for triple modular redundancy (TMR) architecture.

The board is versatile and offers several types of analog inputs and outputs, including two -,

three - and four-wire transmitter analog inputs, as well as externally powered transmitter analog inputs. It also has high precision processing capabilities

to ensure signal accuracy and reliability, and the input signal can be flexibly configured as a voltage or current signal to suit different application requirements.

The IS200TBAIH2C is designed for use with GE Mark VIeS controller components and is certified for safety, ensuring its safety in industrial applications.

 In addition, three DC-37-pin cable connectors are built into the board, namely JR1, JS1 and JT1, and in TMR applications, the input signal is fanned out

to the three connectors controlled by R/S/T. The terminal board also has two built-in terminal blocks (TB1 and TB2), which are palisade terminal blocks that can be unplugged from the board for maintenance.

In terms of installation, the IS200TBAIH2C allows the input and output lines to be connected directly to two I/O terminal blocks on the terminal board,

 each with 24 terminals, and can accept up to #12 AWG of wire. The board also contains high suppression circuits to prevent high-frequency noise and surges, protecting signal integrity
