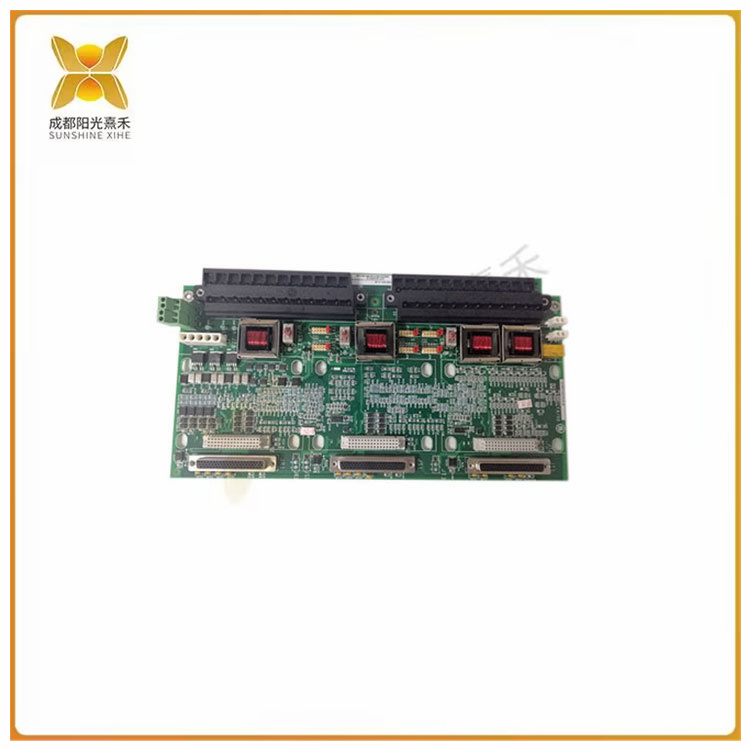

>>>>>型號:IS200TSVCH1AJE  冗余模塊GE控制裝置

【功能描述】

產品名稱:GE IS200TSVCH1AJE plc模塊

輸出電壓:24V DC

通信協議:Modbus RTU

工作溫度:-40℃~70℃

外形尺寸:100mm×80mm×40mm

-緊湊模塊化設計，便于安裝和維護

-高速加工，實現快速準確的控制操作

多個通信端口，實現無縫連接

工作溫度范圍寬，在惡劣環境下性能可靠

-堅固的結構，耐久性和長期運行

IS200TSVCH1AJE作為一種高性能的控制裝置，在分布式系統中得到了越來越廣泛的應用。在這種控制方式中，上位監控機系統是其中重要的組成部分。PLC可以多種方式如直接采用現有的組態監控軟件與上位監迭機通信，但針對小規模的控制系統，找到一種高性能價格比的通信方法，

IS200TSVCH1AJE與PC機之間實現通道，可使二者互補功能上的不足，PLC用于控制方面既方便又可靠，而PC機在圖形顯示、數據處理、打印報表以及中文顯示等方面有很強的功能。因此，各PLC制造廠家紛紛開發了適用于本公司的各種型號PLC與PC機通信的接口模塊。三菱公司開發的FX-232AW接口模塊用于FX2系列PLC與計算機通信。還有與以太網連接的接口模塊AJ71E71、與MAP網連接的接口模塊AJ71M51-S1、與FAIS MAP網連接的接口模塊AJ71M51M1等。不同的通信方式，有著不同的成本價格和不同的適用范圍。在此介紹一種通過PC機的RS-232口與PLC進行通信的實現方法。

>>>>>型號:IS200TSVCH1AJE  冗余模塊GE控制裝置

【英文介紹】

Product name :GE IS200TSVCH1AJE plc module

Output voltage :24V DC

Communication protocol :Modbus RTU

Operating temperature :-40℃~70℃

Dimensions :100mm×80mm×40mm

- Compact modular design for easy installation and maintenance

- High-speed machining to achieve fast and accurate control operation

Multiple communication ports for seamless connection

Wide operating temperature range, reliable performance in harsh environments

- Robust construction, durability and long-term operation

As a high performance control device, IS200TSVCH1AJE has been widely used in distributed systems. In this control mode, the upper monitor system is an important part. PLC can be used in a variety of ways such as directly using the existing configuration monitoring software to communicate with the upper monitoring machine, but for small-scale control systems, to find a high performance and cost effective communication method.

The channel between IS200TSVCH1AJE and PC can make the two complementary functions, PLC is convenient and reliable for control, and PC has strong functions in graphic display, data processing, printing reports and Chinese display. Therefore, the PLC manufacturers have developed various types of PLC and PC communication interface modules suitable for the company. The FX-232AW interface module developed by Mitsubishi Corporation is used for communication between FX2 series PLC and computer. There are also interface modules AJ71E71 connected to the Ethernet, AJ71M51-S1 connected to the MAP network, and AJ71M51M1 connected to the FAIS MAP network. Different communication methods have different cost prices and different scope of application. This paper introduces a method to communicate with PLC through RS-232 port of PC.

>>>>>型號:IS200TSVCH1AJE  冗余模塊GE控制裝置
